eSSL

MU-AI-9 — eSSL multi-biometric attendance & access terminal (face + fingerprint + card).

• Face Capacity30,000
• Log Capacity500,000
• AuthFaceFingerprintCard+1
• Wi-Fi · LAN · TCP/IP · USB · Wiegand

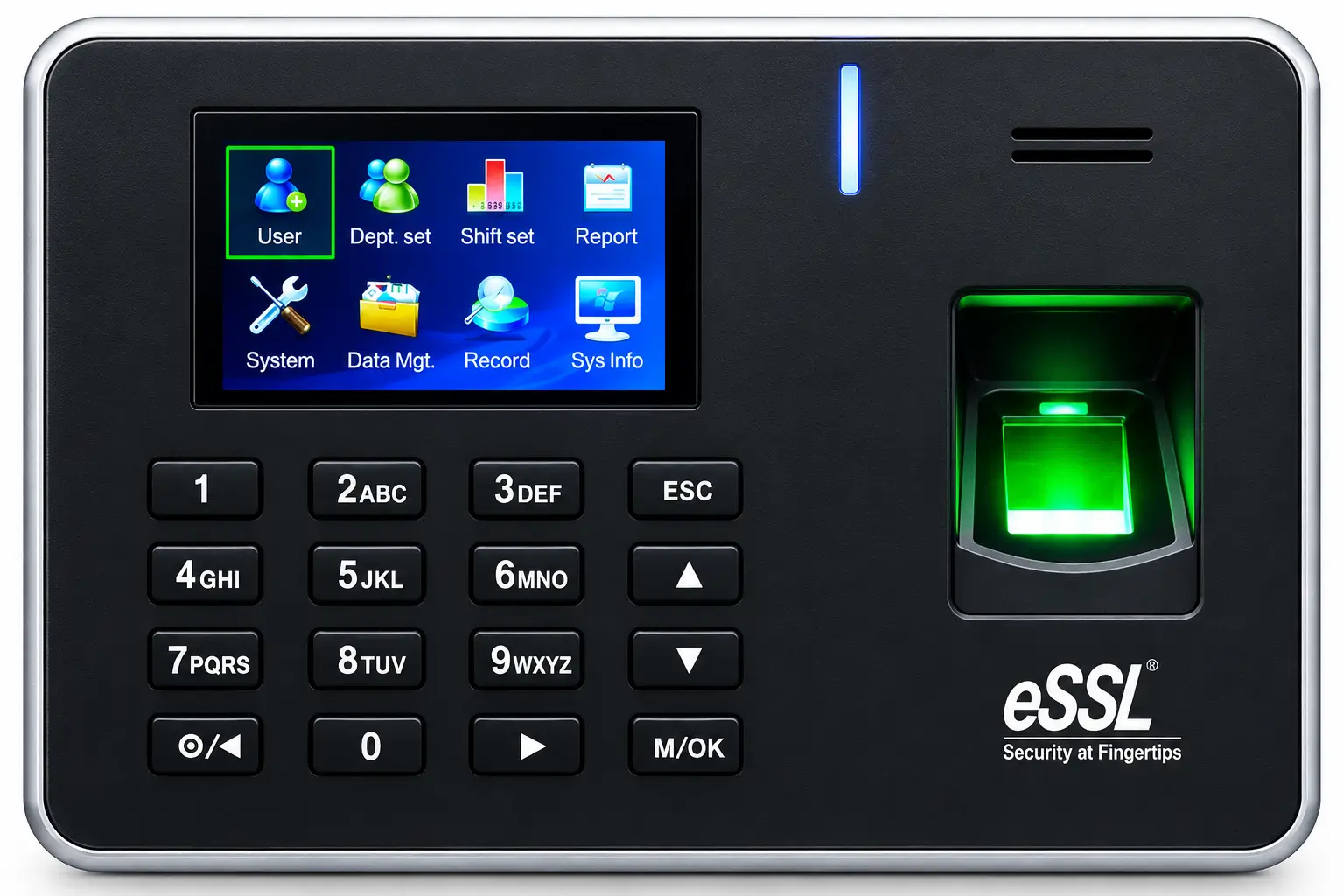

eSSL K21 — fingerprint attendance terminal supplied, installed and supported by MegaMind Technosoft.

• Fingerprint Capacity10,000
• Card Capacity10,000
• Log Capacity200,000
• AuthFingerprintCardPIN
• LAN · TCP/IP · USB · Wiegand

eSSL PT100 — a fingerprint attendance terminal, supplied, installed and supported by MegaMind Technosoft across India.

• Fingerprint Capacity1,000
• Log Capacity50,000
• AuthFingerprintCardPIN
• LAN · TCP/IP · USB

eSSL MU-AI-5 — a face recognition attendance terminal with 50,000 face capacity, 50,000 card capacity, stores 50,000 transactions, network connected, supplied, installed and supported by MegaMind Technosoft across India.

• Face Capacity50,000
• Card Capacity50,000
• Log Capacity50,000
• Auth
• Standard Connectivity

eSSL JS-32E — an attendance and access control terminal with 2,000 card capacity, supplied, installed and supported by MegaMind Technosoft across India.

• Card Capacity2,000
• Auth
• Wiegand

eSSL JS-34 E/M — an attendance and access control terminal with 2,000 card capacity, IP 66 rated, supplied, installed and supported by MegaMind Technosoft across India.

• Card Capacity2,000
• Auth
• Wiegand

eSSL SA40B-M — an attendance and access control terminal with 2,000 card capacity, supplied, installed and supported by MegaMind Technosoft across India.

• Card Capacity2,000
• Auth
• Standard Connectivity

eSSL JS-36E — an attendance and access control terminal with 200 fingerprint capacity, 10,000 card capacity, IP 65 rated, supplied, installed and supported by MegaMind Technosoft across India.

• Fingerprint Capacity200
• Card Capacity10,000
• Auth
• Wiegand

eSSL JS-35E — an attendance and access control terminal with 2,000 card capacity, supplied, installed and supported by MegaMind Technosoft across India.

• Card Capacity2,000
• Auth
• Wiegand

eSSL GP-FINGER-101 is a Handheld Detectors with support for 65 users, OLED display with time and temperature display.

• Auth
• Standard Connectivity

eSSL GP-RFID-102 is a Handheld Detectors designed for security staff doing quick manual screening — a dependable choice for secure, controlled entry and monitoring.

• Auth
• Standard Connectivity

eSSL GP-FINGER-104 is a Handheld Detectors designed for security staff doing quick manual screening — a dependable choice for secure, controlled entry and monitoring.

• Auth
• Standard Connectivity

eSSL GP-RFID-105 is a Handheld Detectors with IP67 protection.

• Auth
• Standard Connectivity

The eSSL C3-100 Plus is a Linux-based one-door access controller with 30,000 default card capacity that can be expanded to 100,000 through a license, plus 500,000 transaction capacity. It provides TCP/IP communication, two 26-bit Wiegand reader interfaces, two inputs and two relay outputs.

• Card Capacity30,000 default
• Log Capacity500,000
• Auth
• Standard Connectivity

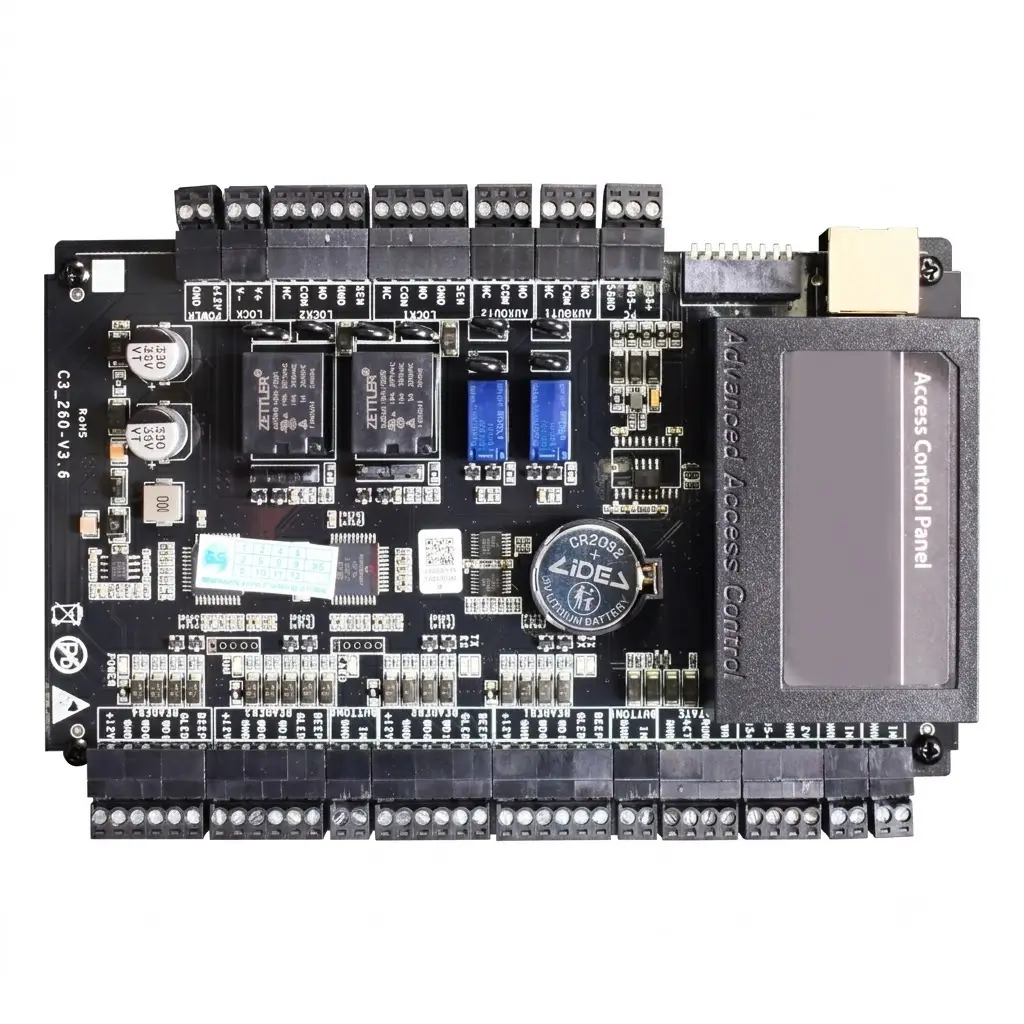

The eSSL C3-200 Plus is a Linux-based two-door access controller supporting 30,000 cards by default, expandable to 100,000 with a license, and 500,000 transactions. It supports four RS-485 or four 26-bit Wiegand readers, six inputs, four relay outputs and TCP/IP communication.

• Card Capacity30,000 default
• Log Capacity500,000
• Auth
• Standard Connectivity

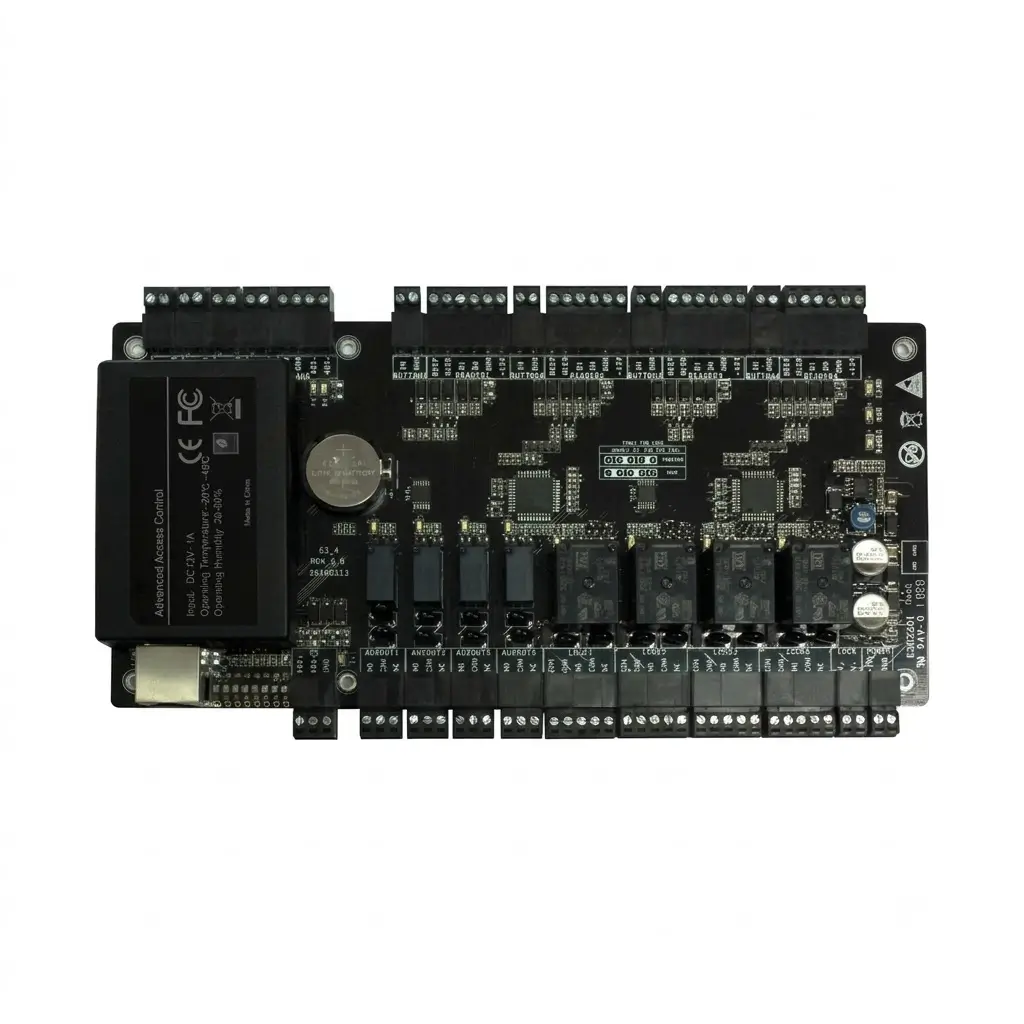

The eSSL C3-400 Plus is a Linux-based four-door access controller with 30,000 default card capacity, license-based expansion to 100,000 and 500,000 transaction capacity. It supports eight RS-485 readers or four 26-bit Wiegand readers, 12 inputs, eight outputs and TCP/IP communication.

• Card Capacity30,000 default
• Log Capacity500,000
• Auth
• Standard Connectivity

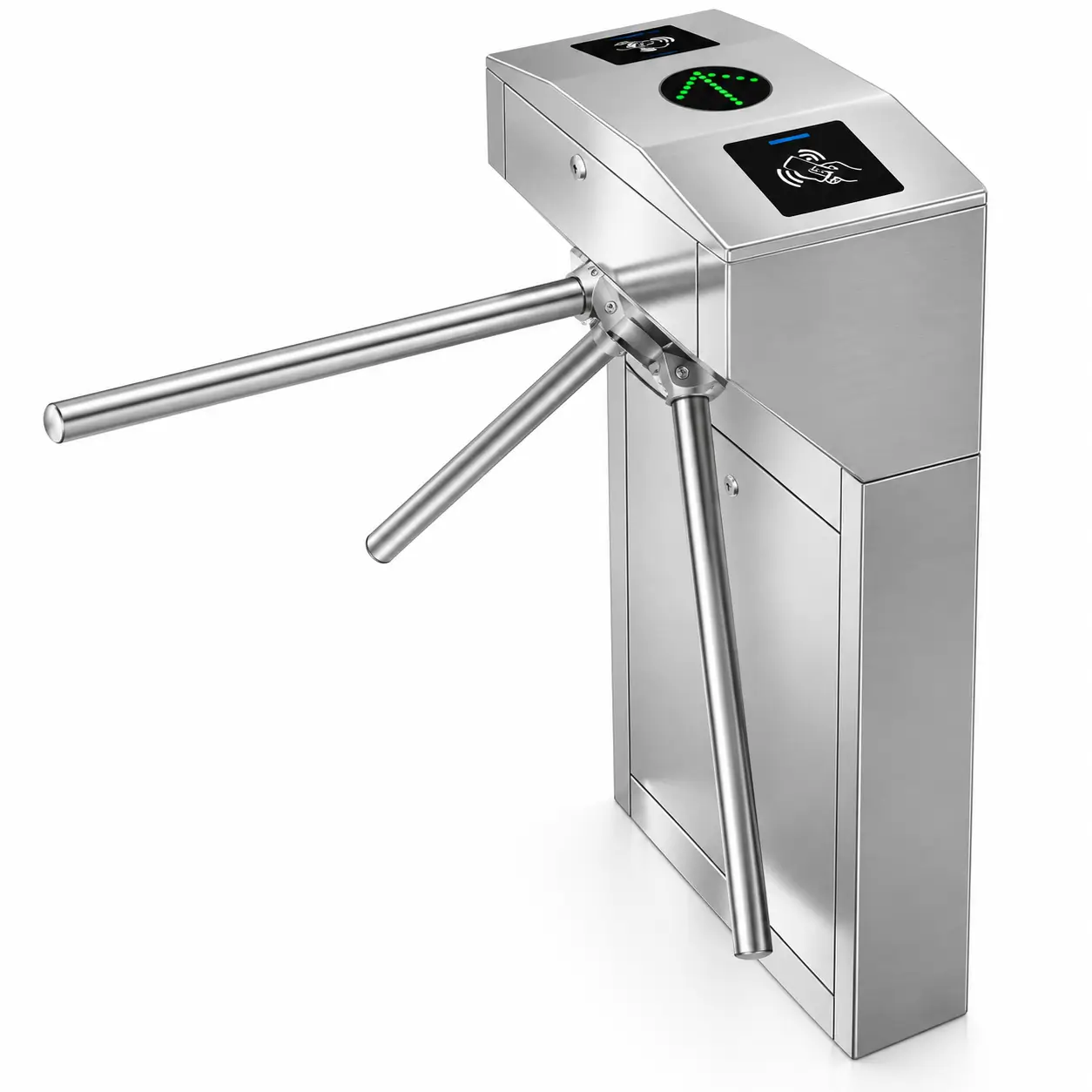

eSSL ET-1000 is a heavy-duty tripod turnstile with a 520mm passage width and throughput of up to 35 persons per minute. It uses a DC electromagnetic drive, supports semi-automatic and pure mechanical modes, provides single- or bi-directional passage and includes SS304 housing with IP44 protection.

• Auth
• Standard Connectivity

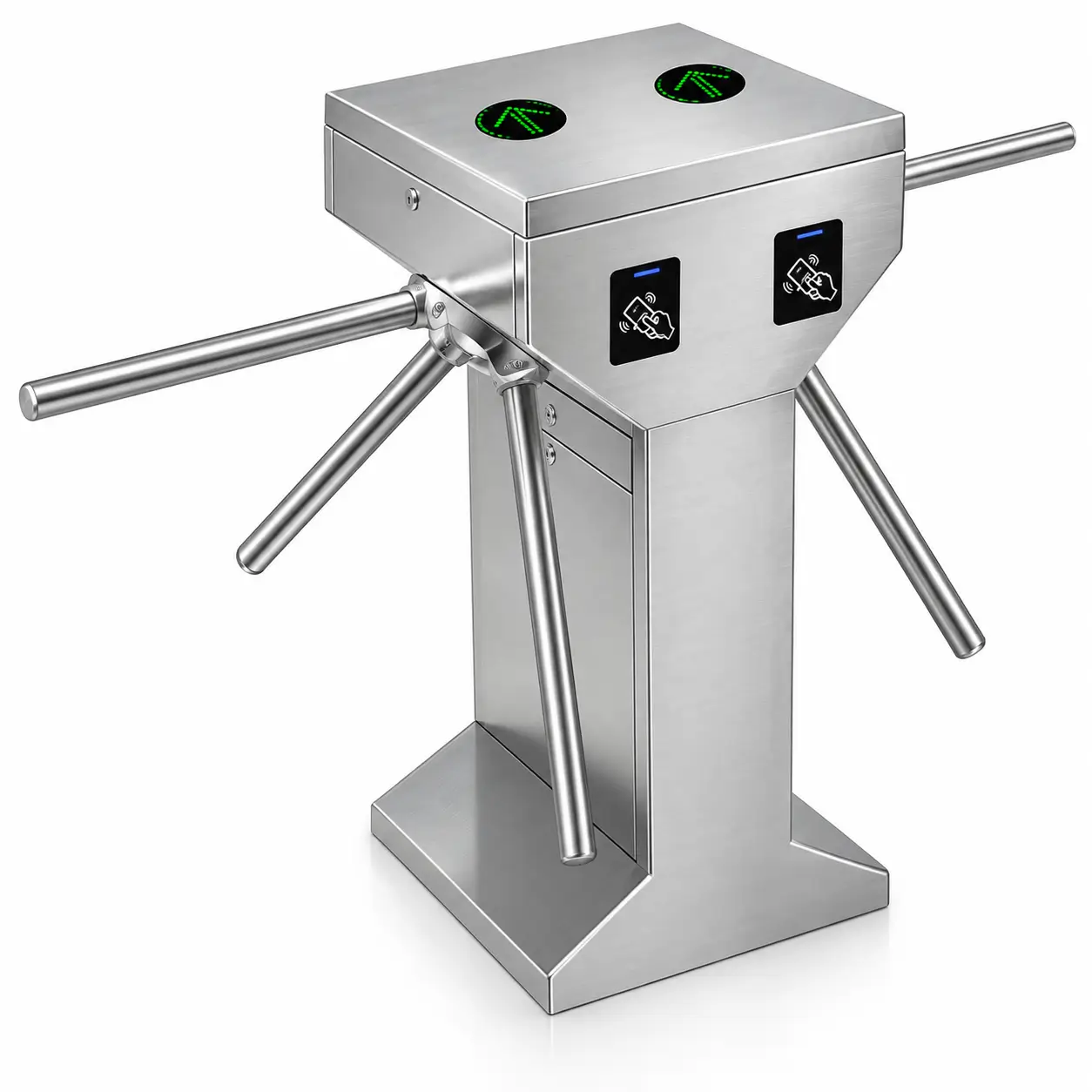

eSSL ET-1200 is a heavy-duty tripod turnstile with a 520 mm passage width and published throughput of 35 persons per minute. It uses a DC electromagnetic drive, operates from 100–240V input with 24V operational voltage, consumes up to 30W, and supports RFID/fingerprint access integration through an inBio-260 controller.

• Auth
• Standard Connectivity

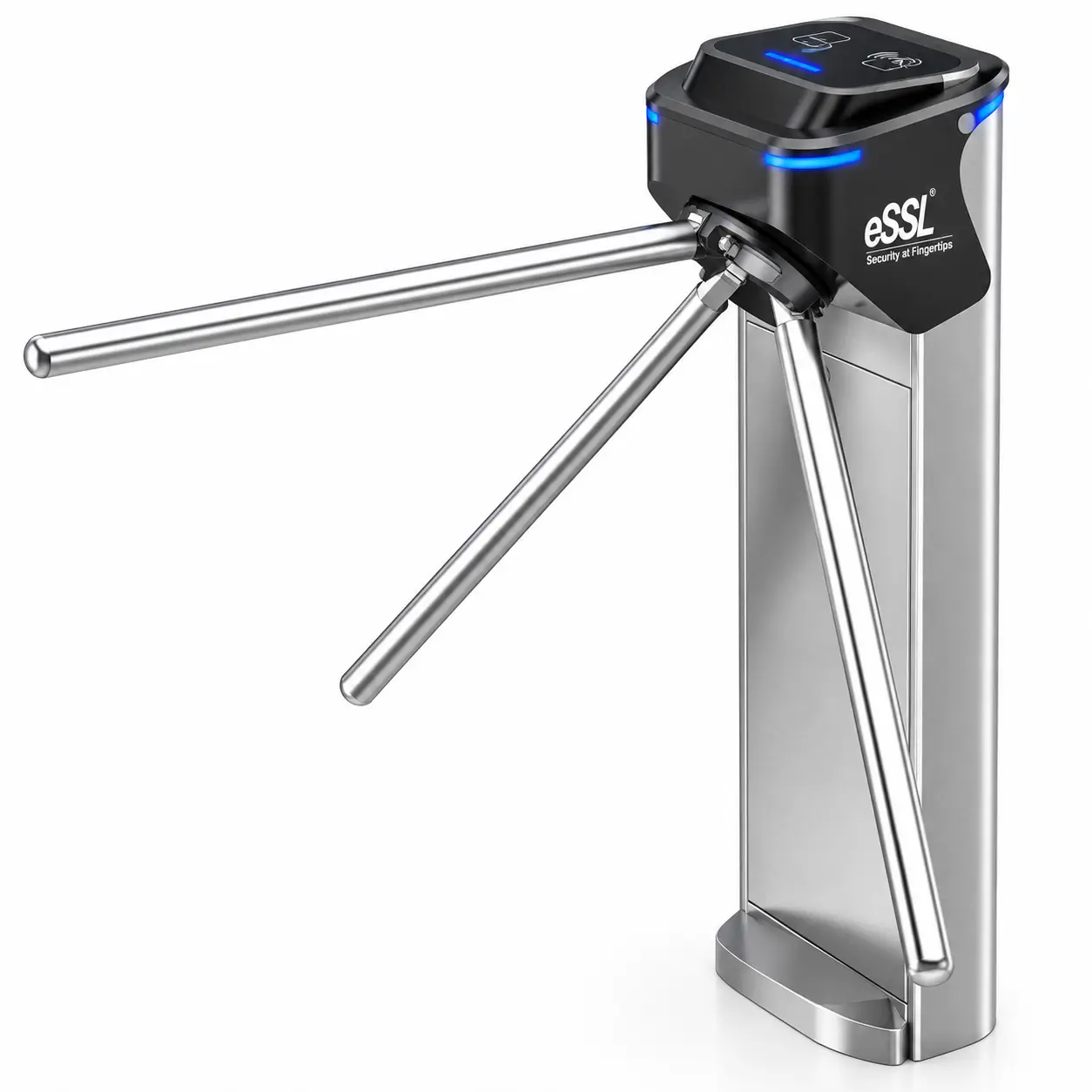

eSSL ET-1219 is a heavy-duty tripod turnstile with a 550 mm passage width, 35–50 persons/minute pass rate and tripod movement with anti-passback. It uses SUS304 housing, SUS201 barrier bars, RGB indicator lighting, dry-contact/RS485 interfaces and supports IC/ID card access.

• Auth
• Standard Connectivity

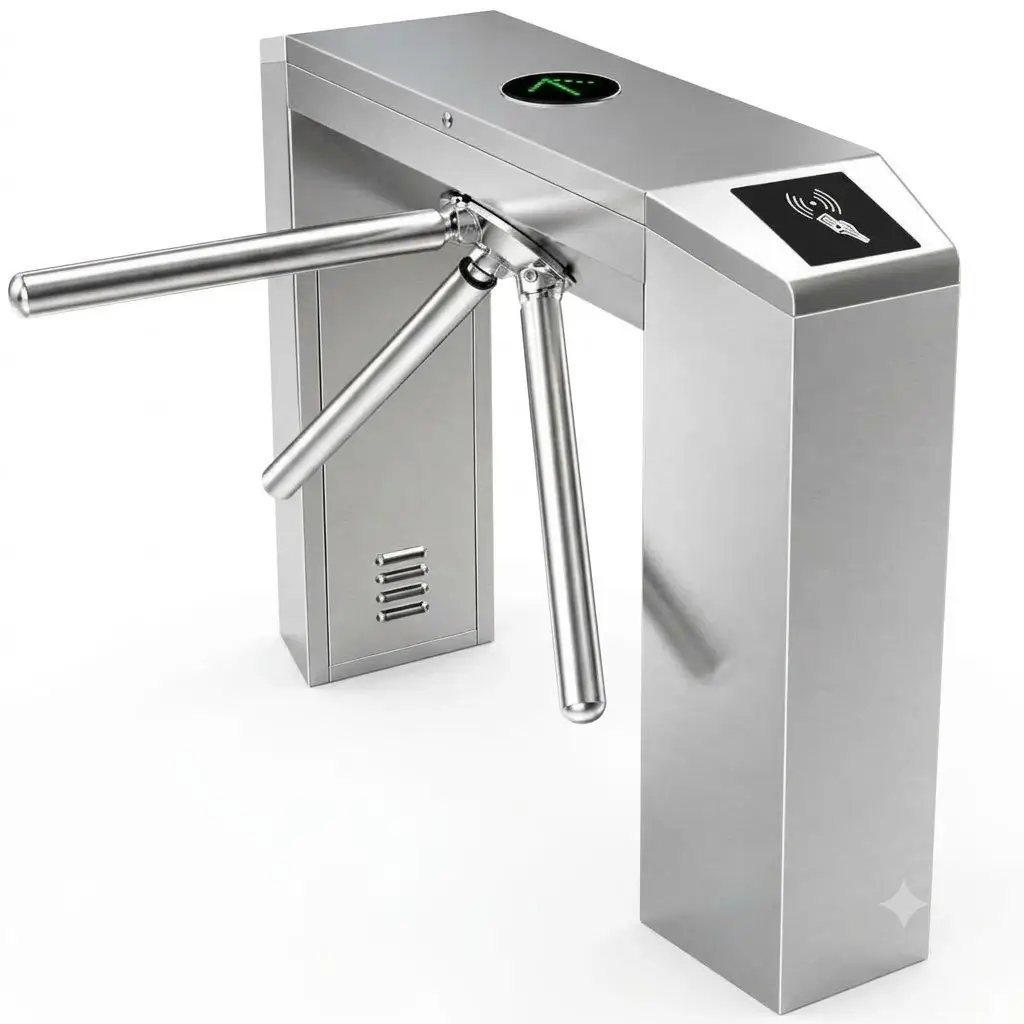

eSSL ET-2000 is a bridge-type bidirectional tripod turnstile with a 550 mm passage width, 35 persons/minute throughput, 80 kg maximum arm tolerance and 120° arm rotation. It uses a DC electromagnetic drive, IP44 protection and provides inBio-260-based RFID/fingerprint access integration.

• Auth
• Standard Connectivity

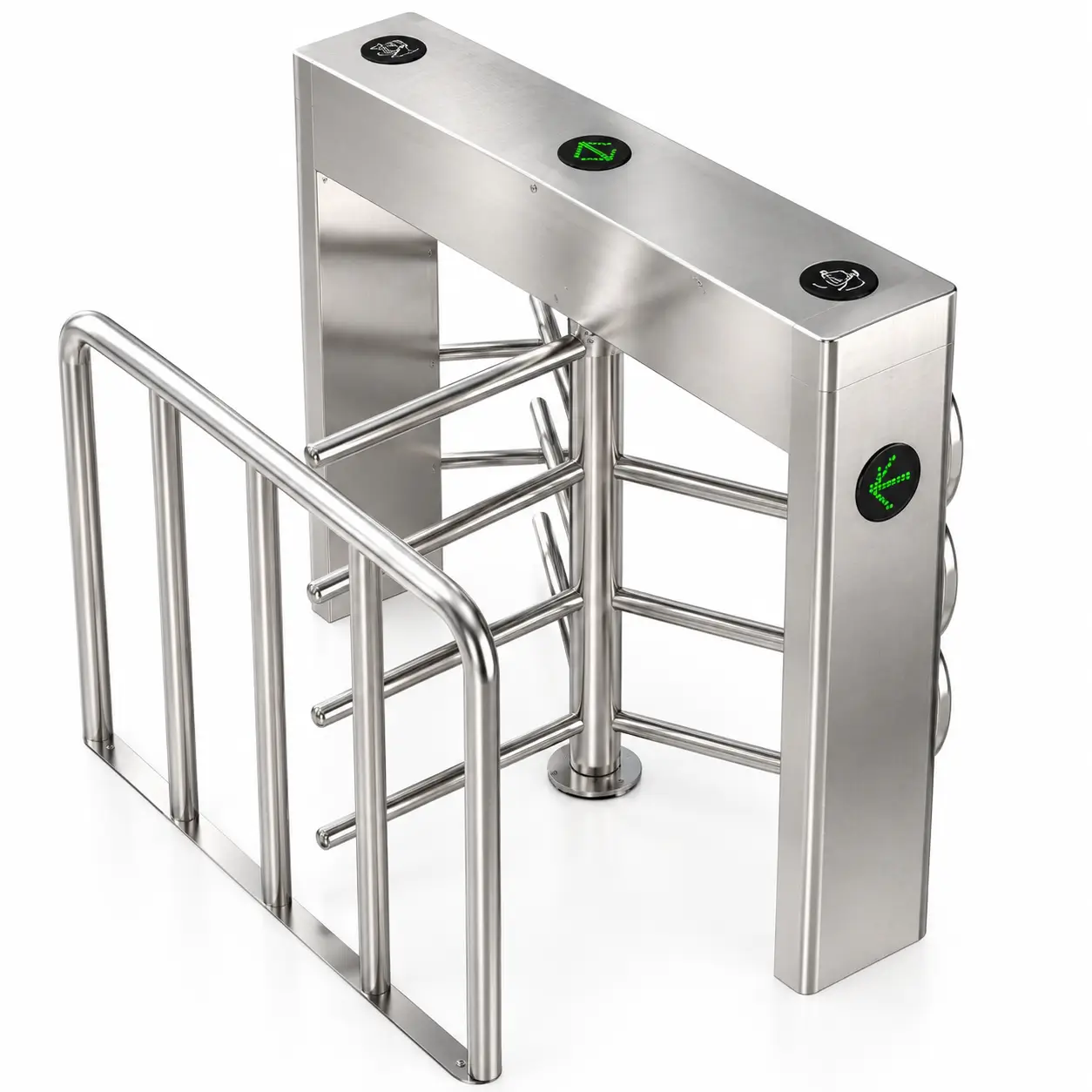

eSSL HHT-TL-139 is a half-height pedestrian turnstile constructed from 1.2 mm SS304 stainless steel. It provides a 600 mm pass width, 30–35 persons/minute pass rate, 0.2-second operating time, single or bi-directional passage and RS485/dry-contact communication, with an MCBF of 5 million cycles.

• Auth
• Standard Connectivity

eSSL FHT-TL-537 is a full-height turnstile with SUS304 stainless-steel construction, a 600 mm passage width and a published pass rate of 35–50 persons per minute. It uses an anti-burn solenoid drive, limited sensors, dynamic indicator lights, dry-contact/RS485 communication and IP4X protection.

• Auth
• Standard Connectivity

eSSL FHT-TL-132 is a full-height single-door turnstile constructed from SUS304 stainless steel. It provides a 650 mm passage width, 30 persons/minute pass rate and 0.2-second unlock time, with 100–240V input, 24V driving voltage, dry-contact input and power-off opening for emergency passage.

• Auth
• Standard Connectivity

eSSL FHT-TL-232 is a full-height double-door turnstile made from SUS304, with a 650 mm passage width, 30 persons/minute pass rate and 0.2-second unlock time. It supports 100–240V input, 24V driving voltage, emergency power-off opening, two-way/one-way traffic and anti-reverse protection.

• Auth
• Standard Connectivity
