Motorized optical swing barrier gates for wide-lane wheelchair access, corporate lobbies and executive entrances with bidirectional access control.
Motorized optical swing barrier gates for wide-lane wheelchair access, corporate lobbies and executive entrances with bidirectional access control. These Swing Barriers products are supplied with genuine hardware, integrated software, installation, training and pan-India AMC support by MegaMind Technosoft.
For Swing Barriers, start with a free site survey to confirm your headcount and site conditions, select a model with the right capacity and connectivity, install and enrol users, integrate with attendance/HRMS or security software, and keep it running with AMC and helpdesk support from MegaMind Technosoft.
Talk to an engineer about your requirement, get a recommendation and a quotation within one business day.
Showing 1–8 of 8 products

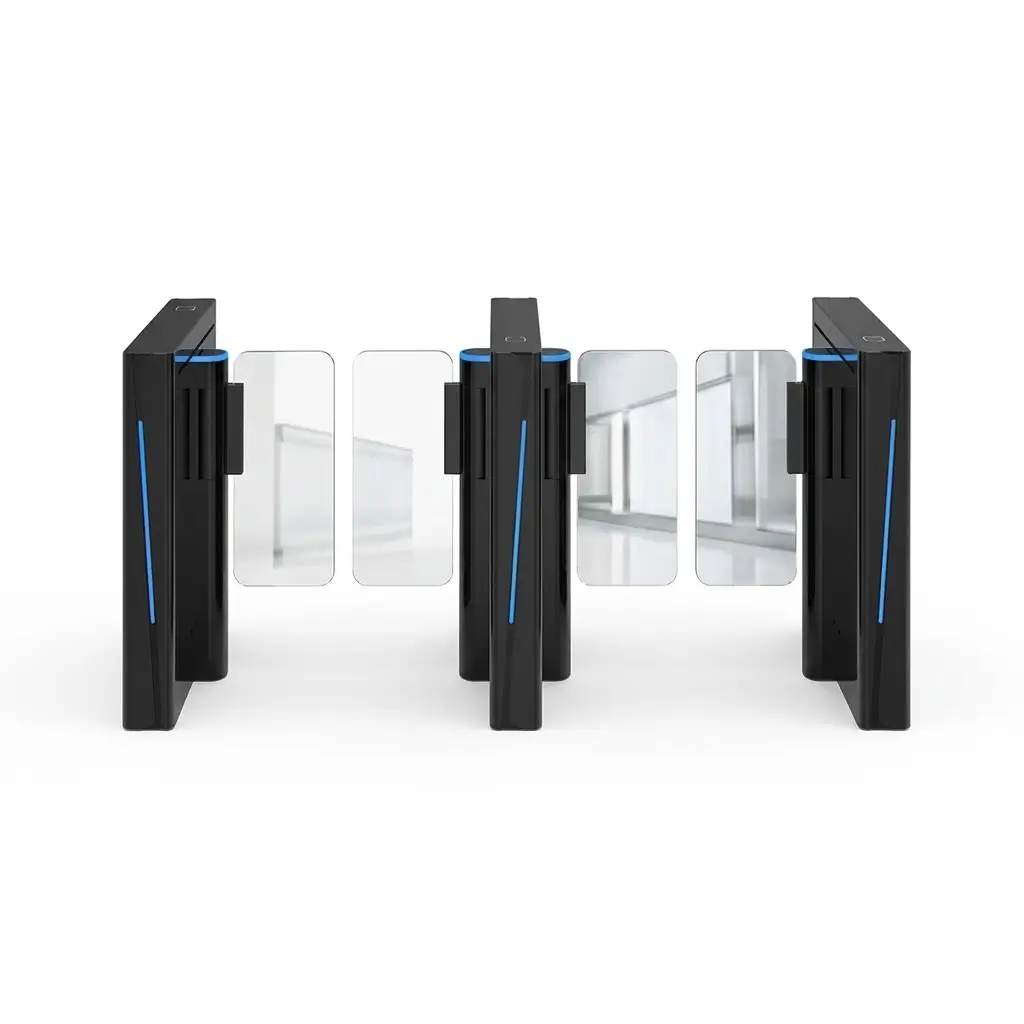

The eSSL SB-ES-3218 is a compact swing barrier with a 600–900 mm passage width, clear acrylic arm, DC brushless motor, six sensor pairs, RGB light indication and RS485 communication. It provides 35–50 persons/minute throughput and adjustable opening speed of 0.5–1.5 seconds.

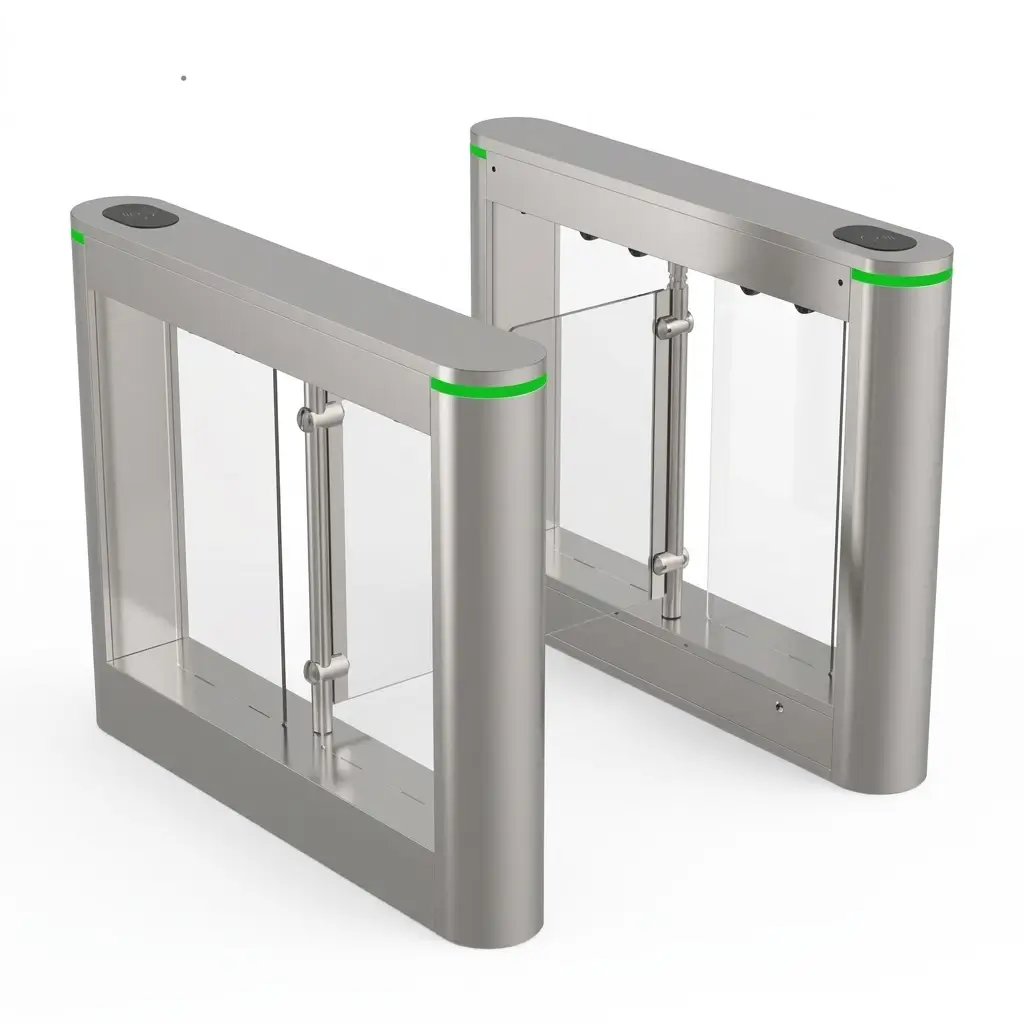

The eSSL SB-ES-3012 is a single-lane swing barrier with a 600 mm passage width, SUS 304 stainless-steel construction, transparent acrylic arm, brushed motor, four pairs of infrared sensors and a published throughput of 20–35 persons per minute. It is specified for controlled pedestrian access and high-cycle operation with an MCBF of 5 million cycles.

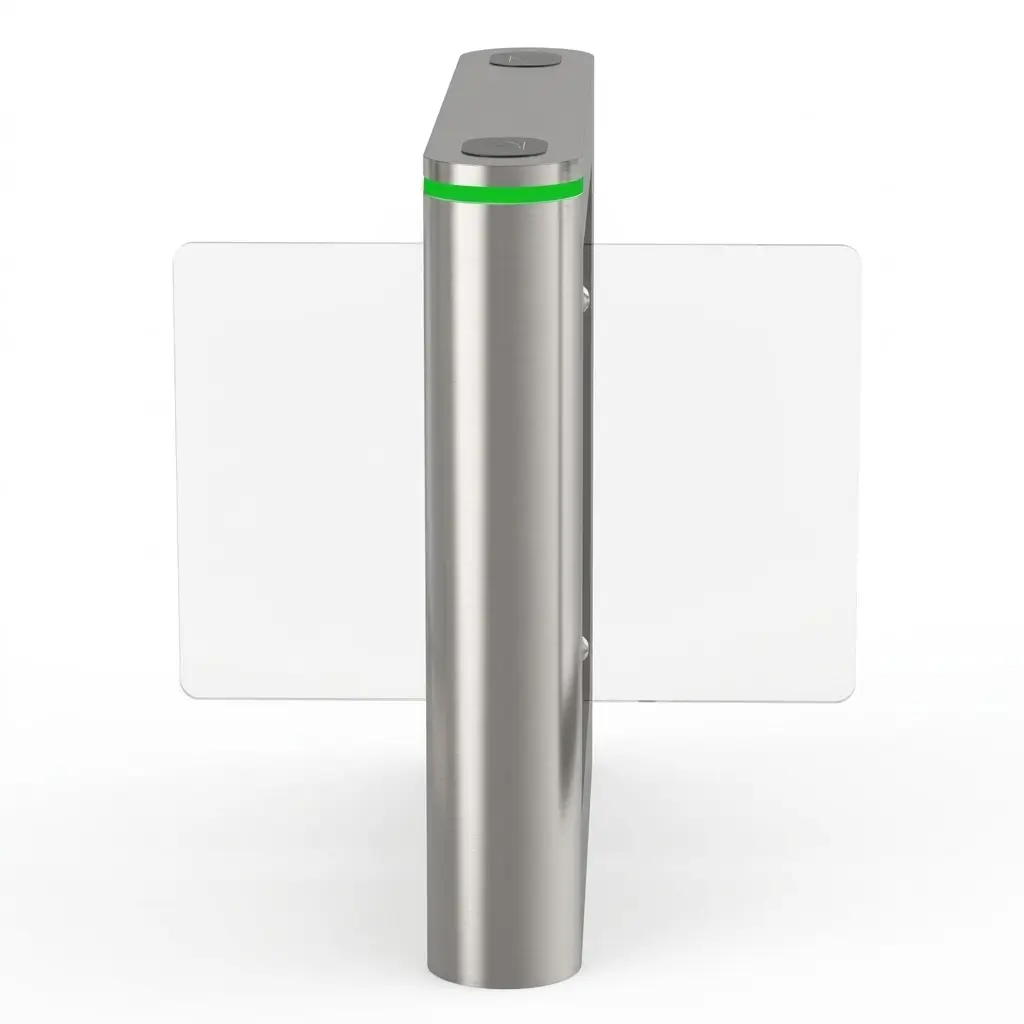

The eSSL SB-ES-3012-2 is a multi-lane swing barrier with a 600 mm passage width, SUS 304 stainless-steel construction, transparent acrylic arm, brushed motor and four pairs of infrared sensors. The published specifications include a 20–35 persons/minute pass rate and 5 million-cycle MCBF.

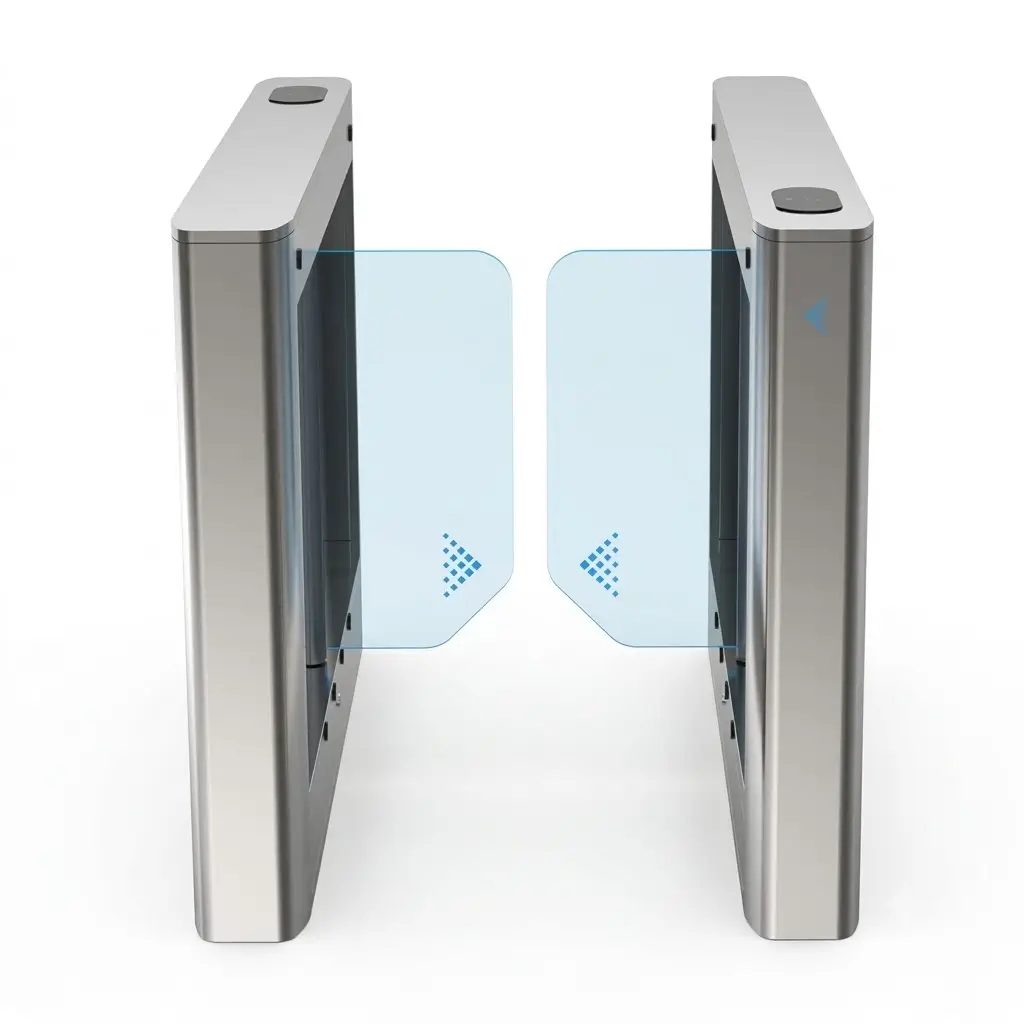

The eSSL SB-ES-3216 is a single-lane swing barrier with a 304 brushed stainless-steel body, 8 mm clear acrylic diaphragm, 10 mm clear acrylic baffle and a 600–900 mm passage width. It uses brushless swing-brake movement, six sensor pairs, infrared anti-clipping and multiple access-control operating modes.

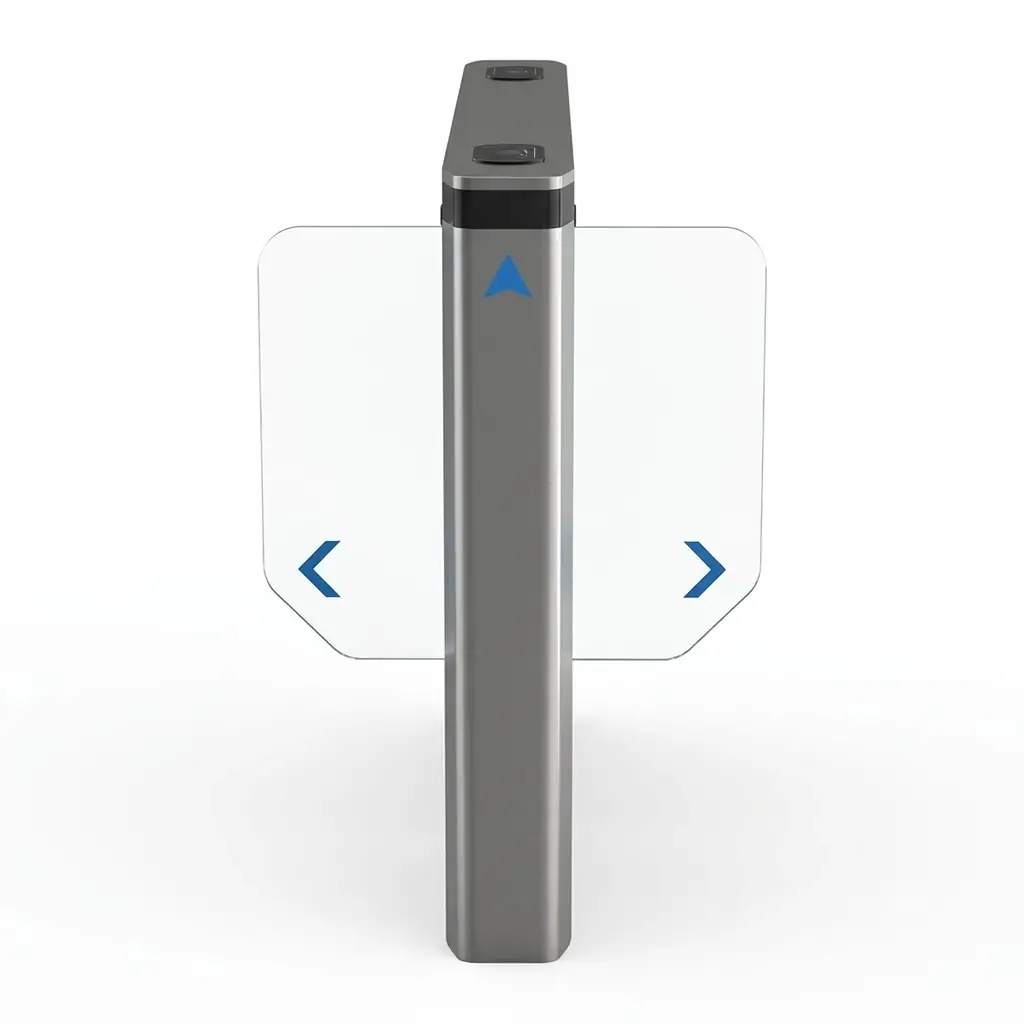

The eSSL SB-ES-3216-2 is a multi-lane swing barrier using a 304 brushed stainless-steel body, clear acrylic panels, brushless swing-brake movement and a 600–900 mm passage width. The system supports six sensor pairs, adjustable opening/closing speed, anti-tail and anti-reverse protection and multiple access-control technologies.

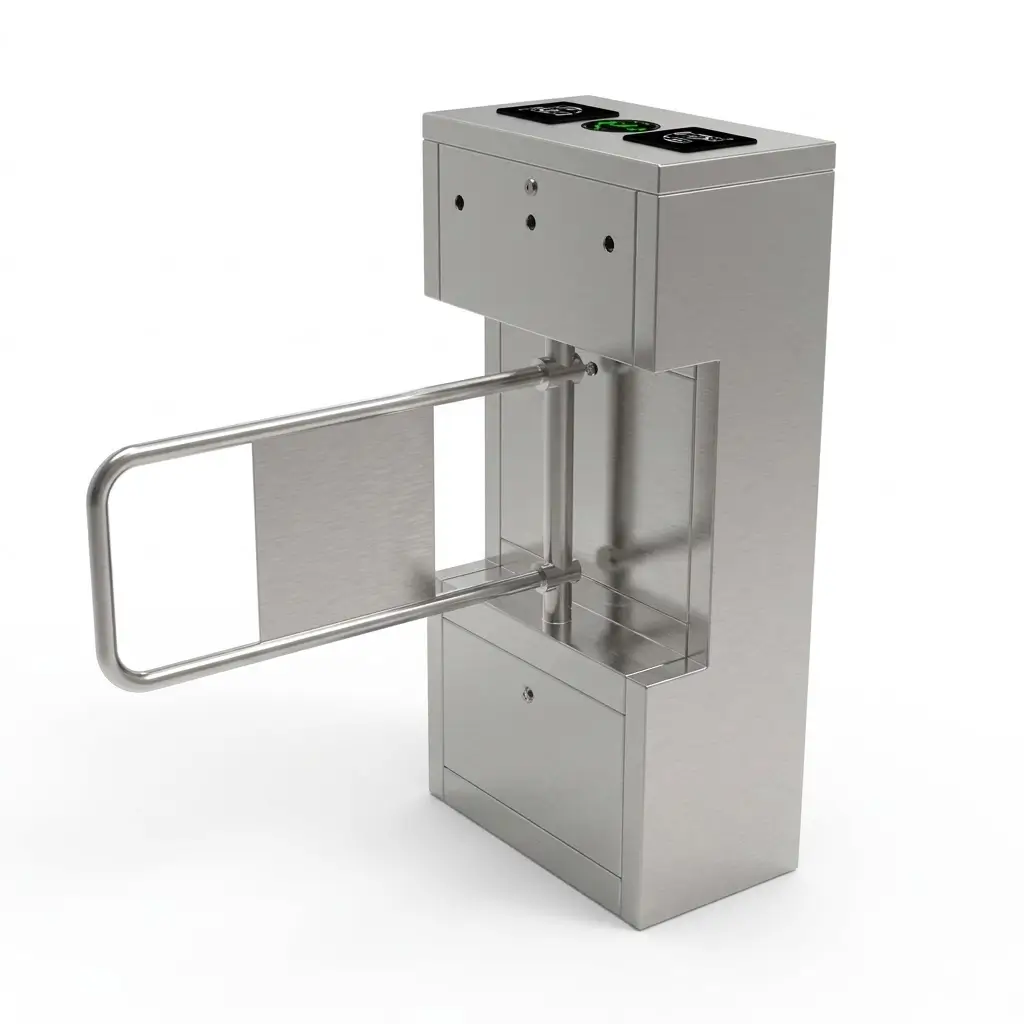

The eSSL SB-TL-129 is a swing barrier with a maximum passage width of 550 mm, throughput of 30 persons/minute, 24V operating voltage and 30W maximum power consumption. It supports card-based identification, infrared sensing, dual anti-clipping protection, single or bi-directional passage and IP54 protection.

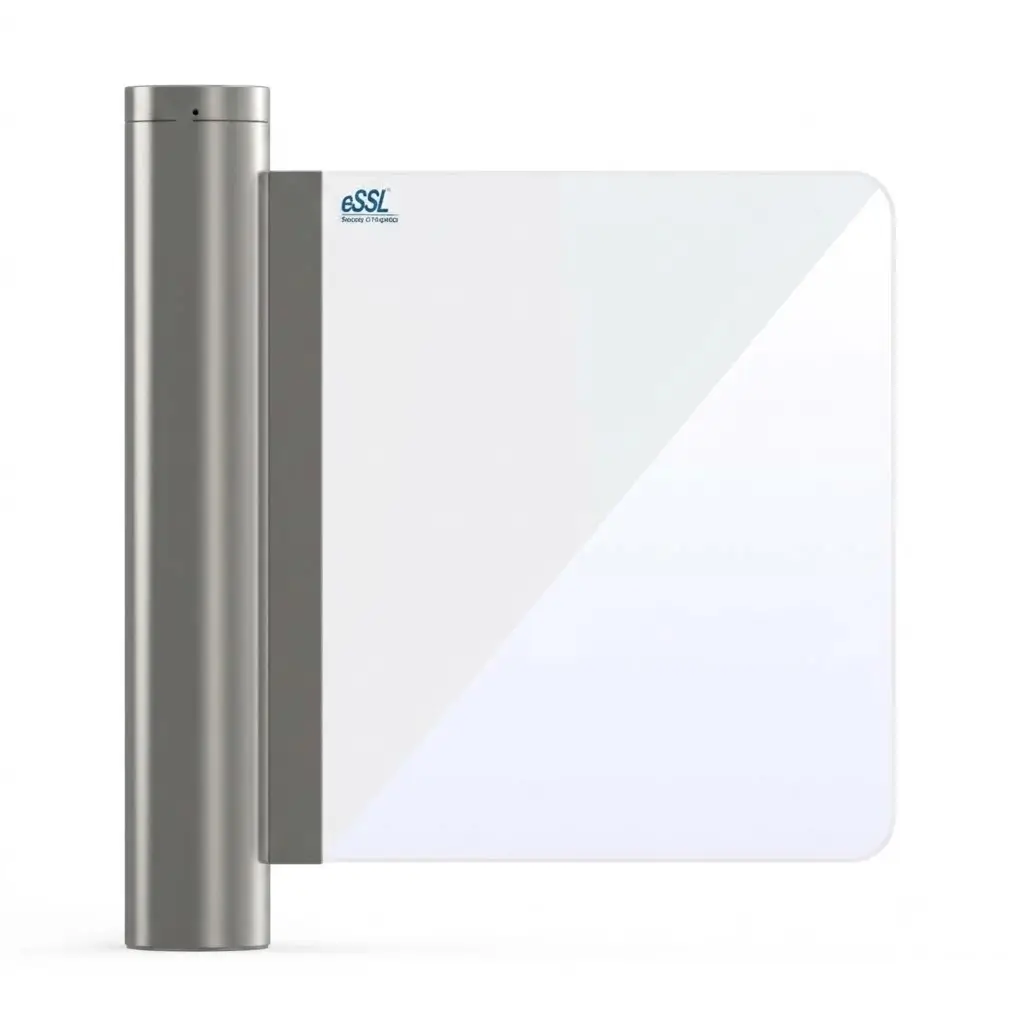

The eSSL SB-E315 is a servo motor-based swing barrier featuring a stainless steel 304-grade cabinet, transparent acrylic barrier arm, 600 mm standard passage width and optional 900 mm passage width. It supports approximately 15–25 persons per minute and is specified for indoor and outdoor installations with a canopy.
The eSSL SB-SPL-310 is a stainless-steel swing barrier with a 600 mm standard passage, optional 900 mm passage, 304 stainless-steel housing and stainless-steel frame arm. It supports bi-directional operation with single passage, 20–25 persons/minute throughput and 0.2-second operating time.
