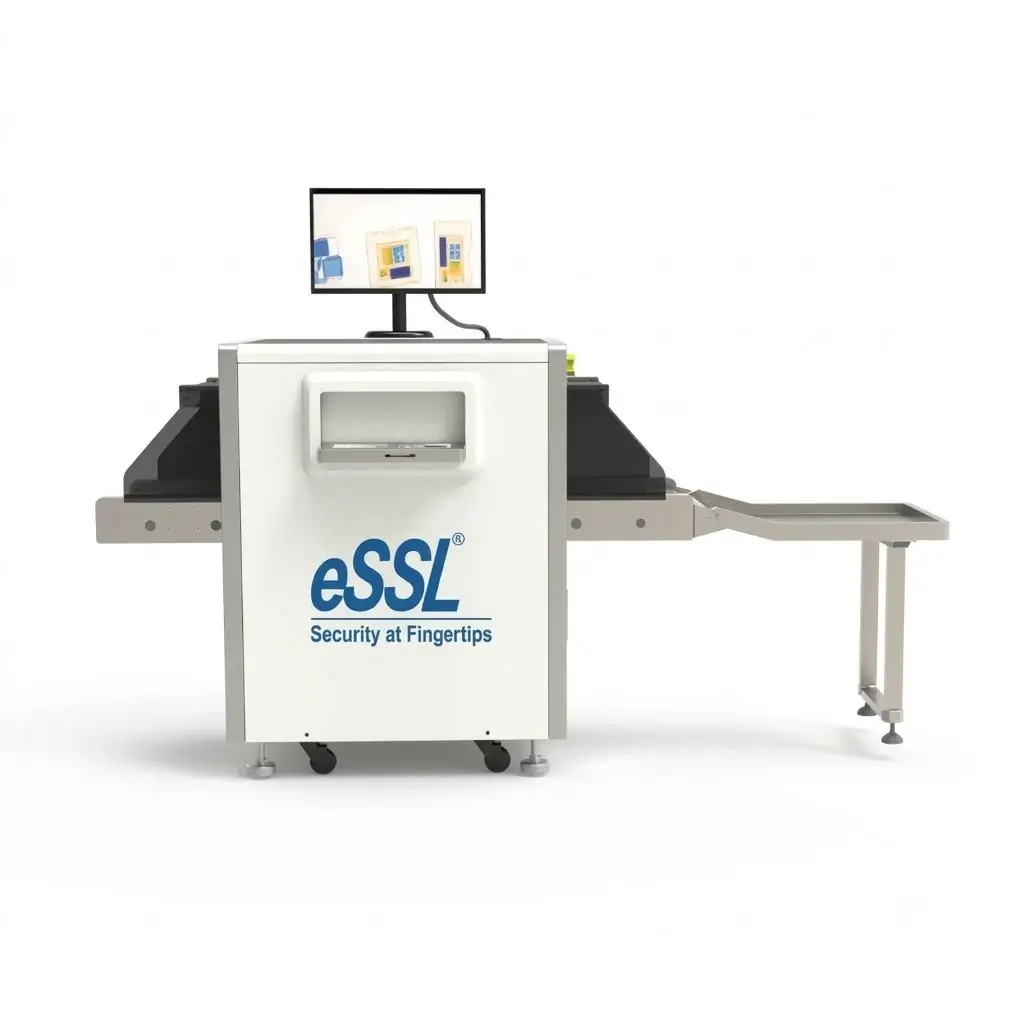

eBS-5030A
Model: eBS-5030A
Brand: eSSL
The eBS-5030A (eBS-5030A) is a baggage scanners terminal from eSSL — X-ray baggage scanner with 500×300 mm tunnel, 80 kV generator, 0.22 m/s conveyor and 40 AWG wire resolution.
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Baggage Scanners
- Connectivity
- tcp_ip
- Availability
- In Stock
Key Features — eBS-5030A
- 500 × 300 mm tunnel
- 80 kV adjustable anode voltage
- 40 AWG (0.0787 mm) wire resolution
- 10 mm steel penetration
- 19-inch colour LCD monitor
- 100,000-image storage
Product Overview
The eSSL eBS-5030A is a single-energy L-shaped-array X-ray baggage scanner that screens bags at entrances and lobbies. It offers 40 AWG wire resolution, 10 mm steel penetration, a 19-inch colour LCD, 100,000 image storage, one-key shutdown and LAN multi-terminal check.
What Is This Product?
eBS-5030A is X-ray baggage scanner used for court and government entrances.
Who Is It For?
The eSSL eBS-5030A is built for Court and government entrances and Corporate lobbies workflows. It fits Court and government entrances, Corporate lobbies, Schools and institutions, Hotels and venues.
How To Choose
The eSSL eBS-5030A is built for Court and government entrances and Corporate lobbies workflows. Compare the specification table above and match the unit to the site's traffic, space and screening requirement.
Applications
- Court and government entrances
- Corporate lobbies
- Schools and institutions
- Hotels and venues
How to choose it
When you compare the eSSL eBS-5030A, compare tunnel size, conveyor speed and image resolution against your throughput, then confirm operator training and radiation-safety checks with the installer. Confirm final configuration with MegaMind Technosoft before ordering.
Ideal for — eBS-5030A
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for eBS-5030A (eBS-5030A).
Scanning
| Tunnel Size | 500 (W) × 300 (H) mm |
|---|---|
| Conveyor Speed | 0.22 m/s |
| Steel Penetration | 10 mm |
| Wire Resolution | 40 AWG (0.0787 mm) |
Operation
| Image Storage | 100,000 pictures |
|---|---|
| Power | 220 VAC ±10%, 50 ±3 Hz, 1.0 kW max |
| Operating Temperature | 0°C to 45°C |
Additional Specifications
| Type | X-ray baggage scanner |
|---|---|
| Generator | 80 kV adjustable, tube current 0.4–0.7 mA |
| Conveyor Max Load | 150 kg |
| Display | 19-inch PHILIP colour LCD |
| Product Weight | 410 kg |
| Package Dimension | 1810 × 910 × 1450 mm |
| Storage Temperature | -20°C to 60°C |
| Humidity | 20–95% non-condensing |
| Xray Leakage | Film safe for ISO 1600 |
| Network | LAN capable, multi-terminal check |
How to choose the right Baggage Scanners device
Every baggage scanners requirement is different. Before you buy eBS-5030A, compare these points — they are the same checks our engineers use when recommending baggage scanners attendance and access solutions to Indian businesses.
What to look for in a Baggage Scanners
- Compare tunnel size against your actual workload
- Compare conveyor speed against your actual workload
- Compare conveyor max load against your actual workload
- Compare steel penetration against your actual workload
- Compare wire resolution against your actual workload
- Compare x-ray generator against your actual workload
- Compare image storage against your actual workload
- Compare image functions against your actual workload
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — eBS-5030A
Industries and use-cases where the eBS-5030A is commonly deployed.
- Court and government entrances
- Corporate lobbies
- Schools and institutions
- Hotels and venues
