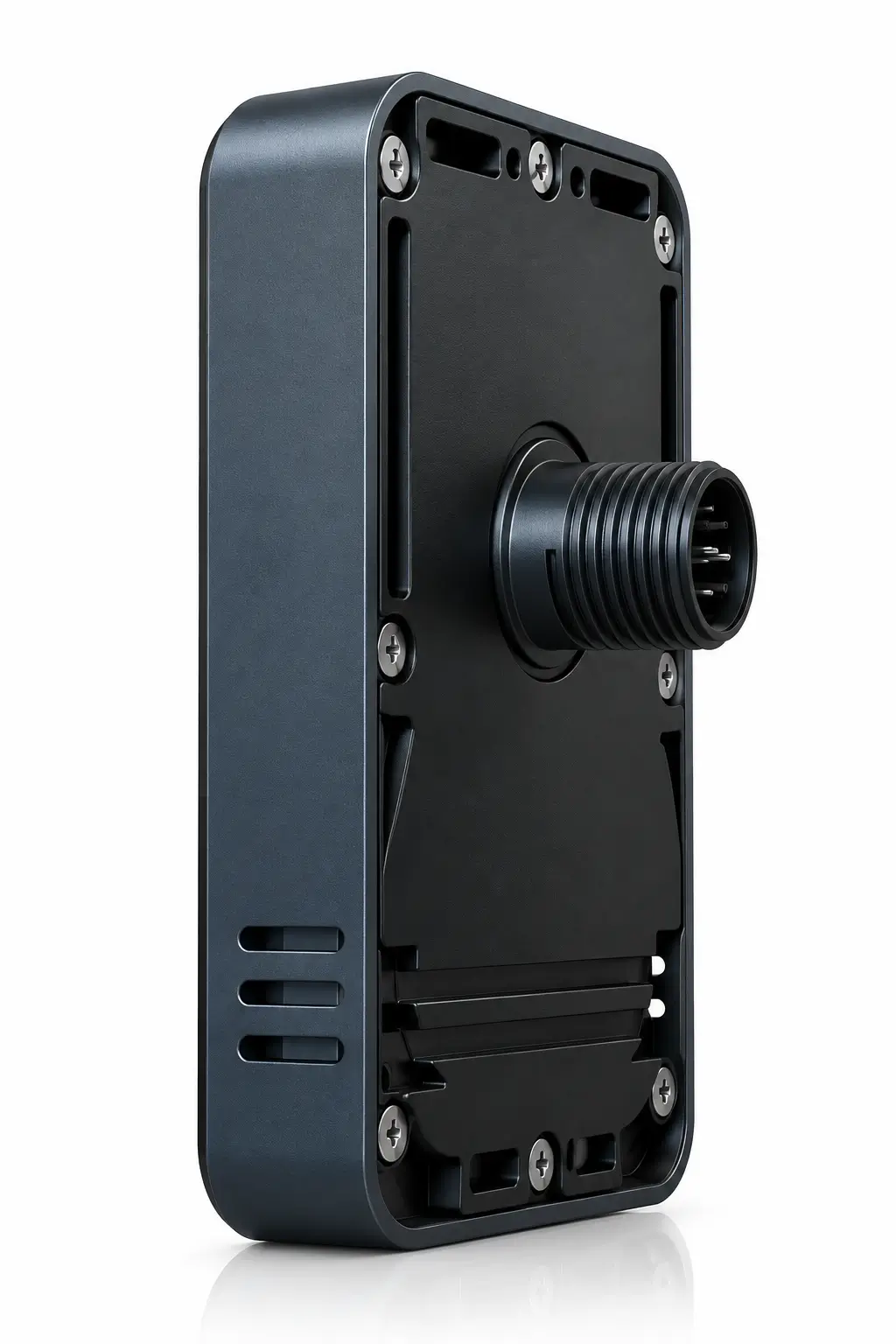

BB-Radar
Model: BB-Radar · SKU: MM-eSSL-BB-RADAR
Brand: eSSL · Warranty: 1 Year
The BB-Radar (BB-Radar) is a boom barriers terminal from eSSL — eSSL BB-Radar is a 79GHz vehicle detection radar designed for boom barrier and vehicle-management applications. It provides an adjustable detection distance of 1–6 metres (default 3 m), with NO/NC relay output, Bluetooth/RS485 interface and IP66 protection.
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Boom Barriers
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — BB-Radar
- 79GHz vehicle detection radar
- Detection range 1–6 m (default 3 m)
- Detection width 0.5–1.5 m right / left
- NO/NC relay output
- Bluetooth configuration
- RS485 interface
- IP66 enclosure
- <2.5W power consumption
- -40°C to 85°C operating temperature
- All-ground adaptability
- Automatic weather-condition switching
- Stable focused detection
- One-click debugging and upgrade
- Compact 140 g net weight
Product Overview
The eSSL BB-Radar is a vehicle detection sensor intended to work with boom barrier systems. Its official specification lists a 79GHz working frequency, adjustable detection distance of 1–6 metres, and detection width of 0.5–1.5 metres on both right and left sides.
The radar operates from 9–24VDC (12VDC/1A specified) and consumes less than 2.5W. Communication and configuration interfaces include Bluetooth and RS485, while the output is provided through an NO/NC relay. The enclosure is rated IP66 and the published operating temperature is -40°C to 85°C.
eSSL also highlights all-ground adaptability, automatic weather-condition switching, focused detection, waterproof/dustproof construction, Bluetooth adjustment and one-click debugging/upgrading.
What Is BB-Radar?
eSSL BB-Radar is a 79GHz vehicle detection radar designed for boom barrier and vehicle access applications.
Software & Integration
The BB-Radar is a components product that integrates with boom barriers, parking access control and access-control systems via its NO/NC relay and RS485/Bluetooth interfaces.
Applications
Typical deployments for the BB-Radar: - Vehicle Detection for Boom Barriers - Automated Parking Entry & Exit Detection - Vehicle Access Control - Barrier Trigger / Safety Loop Replacement
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for BB-Radar (BB-Radar).
Power & Control
| Power Supply | 9–24VDC (12VDC 1A) |
|---|
Additional Specifications
| Default Detection Distance | 3 m |
|---|---|
| Supply Voltage | 9–24VDC / 12VDC 1A |
| Output Relay | NO/NC |
| Enclosure Rating | IP66 |
| Detection Distance | 1–6 m |
| Working Frequency | 79 GHz |
| Operating Temperature | -40°C to 85°C |
| Device Type | 79GHz vehicle detection sensor / radar |
| Protection | IP66 |
| Wi-Fi | No |
| TCP/IP | No |
| LAN Interface | No |
| USB Port | No |
| Wiegand Interface | No |
| PoE Support | No |
| Battery Backup | No |
| Default Distance | 3 m |
| Detection Width | 0.5–1.5 m right / left |
| Relay Output | NO/NC |
| Interface | Bluetooth / RS485 |
| Power Consumption | <2.5W |
| Enclosure | IP66 |
| Working Temperature | -40°C to 85°C |
| Net Weight | 140 g |
| Cable Length | 1 m |
| Rs485 | Yes |
How to choose the right Boom Barriers device
Every boom barriers requirement is different. Before you buy BB-Radar, compare these points — they are the same checks our engineers use when recommending boom barriers attendance and access solutions to Indian businesses.
What to look for in a Boom Barriers
- Compare max gate weight (kg) against your actual workload
- Compare lift height (m) against your actual workload
- Compare torque against your actual workload
- Check Simultaneous Operation is built in if your site needs it
- Compare power supply against your actual workload
- Compare communication against your actual workload
- Compare control options against your actual workload
- Compare accessories against your actual workload
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — BB-Radar
Industries and use-cases where the BB-Radar is commonly deployed.
- Vehicle Detection for Boom Barriers
- Automated Parking Entry & Exit Detection
- Vehicle Access Control
- Barrier Trigger / Safety Loop Replacement
Documents & Downloads — BB-Radar
Compatibility — BB-Radar
- MegaMind Attendance
- MegaMind HRMS
