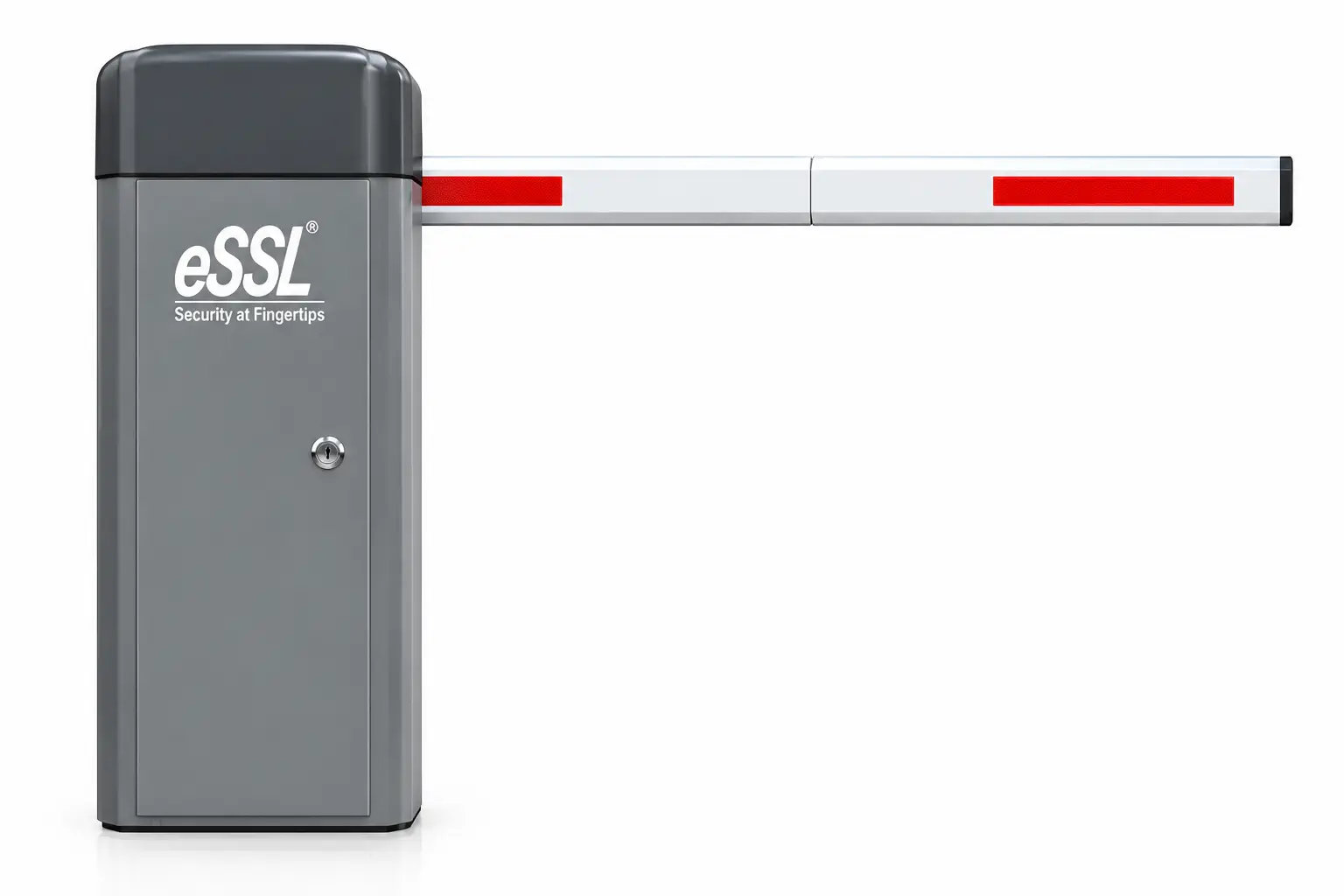

BG-100 Grey
Model: BG-100 (6M) · SKU: MM-eSSL-BG100-GREY
Brand: eSSL · Warranty: 1 Year
The BG-100 Grey (BG-100 (6M)) is a boom barriers terminal from eSSL — identified on eSSL's current page as BG-100 Grey — is an automatic/manual boom barrier with a 6 m maximum boom, aluminium arm, 6-second up/down time, IP54 protection and optional access-control interfaces.
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Boom Barriers
- Recognition speed
- 6 sec up/down
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — BG-100 (6M)
- 6 m maximum boom
- Grey housing / product variant
- Boom-rest stand
- Aluminium arm
- 6-second up/down time
- Automatic / manual operation
- IP54 protection
- Dry-contact control
- Photocell and air-switch inputs
- Lamp output
- Optional access-control panel, standalone access control and control button
- Remote control up to 25 m
- STOP / UP / DOWN controls
- Optional bumping bounce-back, 1–99 sec auto closing
- Manual release, intensive duty cycle, MCBF 30 lakh
- Optional traffic-light interface
- Wiegand / RFID / biometric compatibility
- Optional infrared photocell for anti-bumping
Product Overview
The product name in the catalogue is BG-100(6M) GREY, while eSSL's current live page labels the product BG-100 Grey. The current page specifies a 6 m maximum boom length, boom-rest stand, aluminium arm and 6-second up/down time.
The barrier uses a dry-contact control signal and provides photocell and air-switch inputs with a lamp output. Optional interfaces include access-control panel, standalone access control and control button. Remote control is specified up to 25 metres, and the barrier can operate automatically or manually.
eSSL also lists a three-button STOP / UP / DOWN control panel, optional bumping bounce-back, 1–99-second automatic closing, manual release, intensive duty cycle and an MCBF of 30 lakh. Compatibility with Wiegand, RFID and biometric systems is also published. A 2024 eSSL project record documents a 6-metre telescopic BG-100 Grey installed with manual remote opening and photocell safety sensors.
What Is BG-100 Grey?
It is an automatic/manual boom barrier with a published maximum boom length of 6 metres — the distant catalogue code BG-100(6M) GREY and the current live page name BG-100 Grey refer to the same single product.
Software & Integration
The BG-100 Grey integrates with photocells, air switches, access-control panels, BB-Radar and loop detectors for parking access control.
Applications
Typical deployments for the BG-100 Grey: - Apartment/society entry gates - Corporate and commercial parking - Industrial campuses - Residential complexes - IT parks - Vehicle entry/exit management - Parking access control - 6-metre vehicle barrier installations
Ideal for — BG-100 (6M)
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for BG-100 Grey (BG-100 (6M)).
Power & Control
| Power Supply | AC 220V / 110V, 50Hz / 60Hz |
|---|
Additional Specifications
| Time for Up / Down | 6 sec |
|---|---|
| Input Control Signal | Dry contact |
| Ingress Protection | IP54 |
| Input Interfaces | Photocell, air switch |
| Output Interface | Lamp |
| Remote Control | Up to 25 m |
| Operating Mode | Automatic / manual |
| Control Panel | STOP / UP / DOWN |
| Bumping Bounce Back | Optional |
| Auto Closing Time | 1–99 sec |
| Power Input | AC 220V / 110V, 50Hz / 60Hz |
| Motor Power | 90W, 240V AC |
| Traffic Light Interface | Optional |
| Catalogue / Live Name | BG-100(6M) GREY = BG-100 Grey (one product) |
| Maximum Boom Length | 6 m |
| Recognition Speed | 6 sec up/down |
| Operating Temperature | -20°C to +50°C |
| Device Type | Automatic / manual boom barrier |
| Protection | IP54 |
| Wi-Fi | No |
| TCP/IP | No |
| LAN Interface | No |
| USB Port | No |
| Wiegand Interface | No |
| PoE Support | No |
| Battery Backup | No |
| Catalogue Name | BG-100(6M) GREY |
| Page Name | BG-100 Grey |
| Max Boom | 6 m |
| Boom Rest Stand | Yes |
| Arm Material | Aluminium |
| Up Down Time | 6 sec |
| Control Signal | Dry contact |
| Interfaces | Photocell, air switch, lamp output |
| Optional Interfaces | Access-control panel, standalone access control, control button |
| Remote Range | Up to 25 m |
| Operation Mode | Automatic / manual |
| Auto Closing | 1–99 sec |
| Motor | 90W, 240V AC |
| Temperature | -20°C to +50°C |
| Duty Cycle | Intensive |
| Mcbf | 30 lakh |
| Housing Color | Grey |
How to choose the right Boom Barriers device
Every boom barriers requirement is different. Before you buy BG-100 (6M), compare these points — they are the same checks our engineers use when recommending boom barriers attendance and access solutions to Indian businesses.
Size it to your site
- Recognition speed of 6 sec up/down
What to look for in a Boom Barriers
- Compare max gate weight (kg) against your actual workload
- Compare lift height (m) against your actual workload
- Compare torque against your actual workload
- Check Simultaneous Operation is built in if your site needs it
- Compare power supply against your actual workload
- Compare communication against your actual workload
- Compare control options against your actual workload
- Compare accessories against your actual workload
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — BG-100 (6M)
Industries and use-cases where the BG-100 Grey is commonly deployed.
- Apartment/society entry gates
- Corporate and commercial parking
- Industrial campuses
- Residential complexes
- IT parks
- Vehicle entry/exit management
- Parking access control
- 6-metre vehicle barrier installations
Documents & Downloads — BG-100 (6M)
Compatibility — BG-100 (6M)
- MegaMind Attendance
- MegaMind HRMS
