BG-SC-300
Model: BG-SC-300 · SKU: MM-eSSL-BGSC300
Brand: eSSL · Warranty: 1 Year

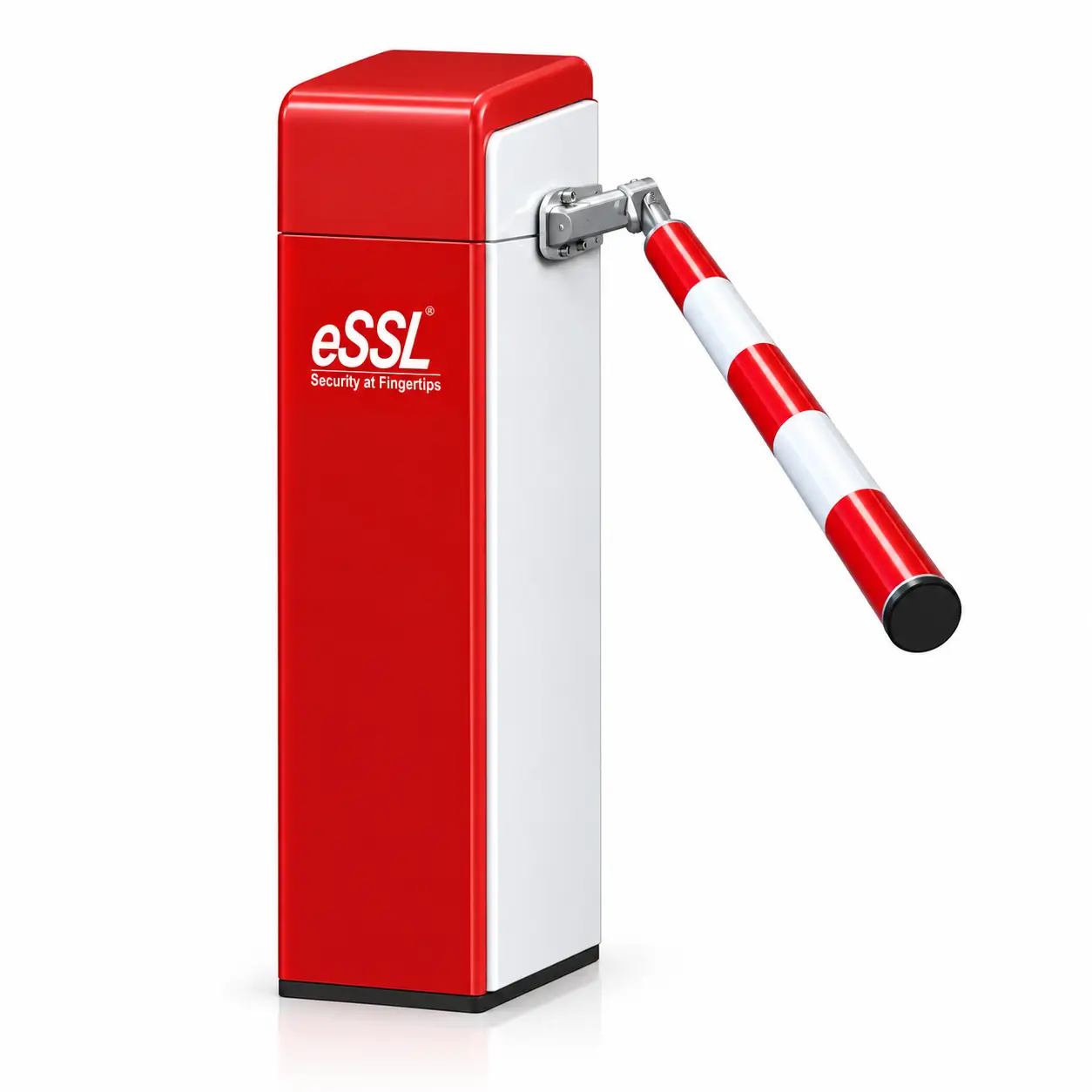

The BG-SC-300 (BG-SC-300) is a boom barriers terminal from eSSL — eSSL BG-SC-300 is a 3-metre flying-arm boom barrier featuring a cylindrical foam arm, 3-second up/down operation and IP54 protection. It supports automatic/manual operation, dry-contact control, photocell, air-switch and loop-detector inputs, along with optional access-control interfaces and remote control up to 25 metres.
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Boom Barriers
- Recognition speed
- 3 sec up/down
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — BG-SC-300
- 3 m maximum boom length
- Foam cylindrical flying arm
- 3-second up/down operation
- Automatic / manual operation
- IP54 protection
- Dry-contact control
- Photocell, air-switch and loop-detector inputs
- Lamp output
- Optional access-control panel, standalone access control and control button
- Remote control up to 25 m
- STOP / UP / DOWN control panel
- Optional bumping bounce-back
- Adjustable auto-closing time of 1–80 seconds
- Suitable for compact vehicle-entry installations
Product Overview
The eSSL BG-SC-300 is a compact boom barrier designed for vehicle entry and exit control. The official eSSL specification lists a maximum boom length of 3 metres and identifies the arm as a foam arm, cylindrical in shape, commonly described as a flying arm. The published up/down time is 3 seconds.
The barrier uses a dry-contact input control signal and provides interfaces for a photocell, air switch and loop detector. The official specification also lists an output lamp and optional interfaces for an access-control panel, standalone access control and control button.
The BG-SC-300 supports automatic and manual operating modes, has an incorporated control panel with STOP / UP / DOWN buttons and provides optional bumping bounce-back functionality. The auto-closing time is adjustable from 1 to 80 seconds.
What Is BG-SC-300?
eSSL BG-SC-300 is a 3-metre automatic/manual boom barrier with a cylindrical foam flying arm.
Software & Integration
The BG-SC-300 integrates with photocells, loop detectors, air switches and access-control panels for parking access control.
Applications
Typical deployments for the BG-SC-300: - Residential parking entrances - Small commercial parking areas - Office vehicle gates - Controlled premises entry/exit - Compact vehicle lanes - Parking-access applications where a 3 m arm is suitable
Ideal for — BG-SC-300
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for BG-SC-300 (BG-SC-300).
Power & Control
| Power Supply | AC 220V / 110V, 50Hz / 60Hz |
|---|
Additional Specifications
| Arm Material / Type | Foam arm, cylindrical / flying arm |
|---|---|
| Time for Up / Down | 3 sec |
| Input Control Signal | Dry contact |
| Ingress Protection | IP54 |
| Input Interfaces | Photocell, air switch, loop detector |
| Output Interface | Lamp |
| Remote Control | Up to 25 m |
| Control Panel | STOP / UP / DOWN |
| Bumping Bounce Back | Optional |
| Auto Closing Time | 1–80 sec |
| Power Input | AC 220V / 110V, 50Hz / 60Hz |
| Motor Power | 90W, 120V AC |
| Weight / MCBF / Duty Cycle | Not published on current page |
| Maximum Boom Length | 3 m |
| Recognition Speed | 3 sec up/down |
| Operating Temperature | -20°C to +50°C |
| Device Type | Automatic / manual boom barrier |
| Protection | IP54 |
| Wi-Fi | No |
| TCP/IP | No |
| LAN Interface | No |
| USB Port | No |
| Wiegand Interface | No |
| PoE Support | No |
| Battery Backup | No |
| Arm Type | Foam / cylindrical / flying |
| Max Boom | 3 m |
| Boom Rest Stand | No |
| Up Down Time | 3 sec |
| Control Signal | Dry contact |
| Interfaces | Photocell, air switch, loop detector, lamp output |
| Optional Interfaces | Access-control panel, standalone access control, control button |
| Remote Range | Up to 25 m |
| Operation Mode | Automatic / manual |
| Auto Closing | 1–80 sec |
| Motor | 90W, 120V AC |
| Temperature | -20°C to +50°C |
| Unpublished | Weight, MCBF, duty cycle not published |
How to choose the right Boom Barriers device
Every boom barriers requirement is different. Before you buy BG-SC-300, compare these points — they are the same checks our engineers use when recommending boom barriers attendance and access solutions to Indian businesses.
Size it to your site
- Recognition speed of 3 sec up/down
What to look for in a Boom Barriers
- Compare max gate weight (kg) against your actual workload
- Compare lift height (m) against your actual workload
- Compare torque against your actual workload
- Check Simultaneous Operation is built in if your site needs it
- Compare power supply against your actual workload
- Compare communication against your actual workload
- Compare control options against your actual workload
- Compare accessories against your actual workload
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — BG-SC-300
Industries and use-cases where the BG-SC-300 is commonly deployed.
- Residential parking entrances
- Small commercial parking areas
- Office vehicle gates
- Controlled premises entry/exit
- Compact vehicle lanes
- Parking-access applications where a 3 m arm is suitable
