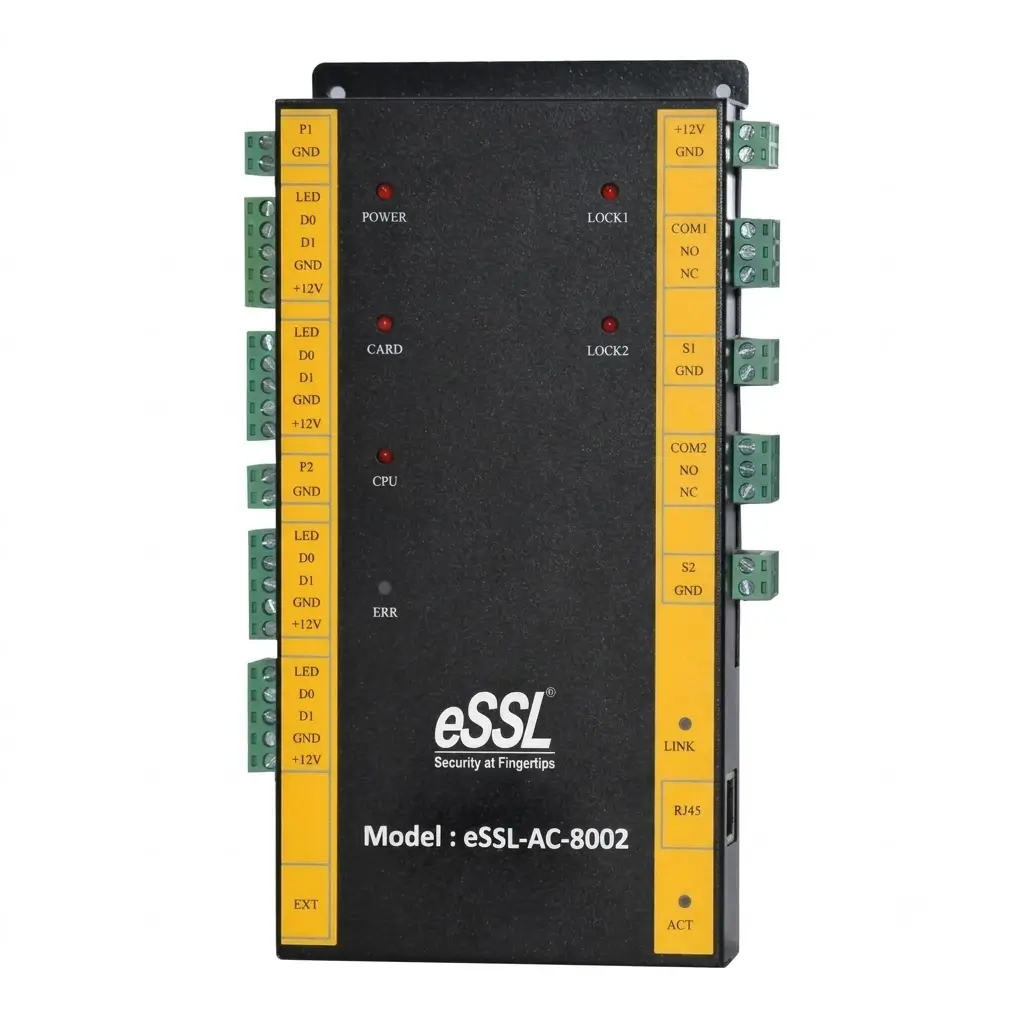

eSSL-Access-8002
Model: eSSL-Access-8002 · SKU: MM-eSSL-Access-8002
Brand: eSSL · Warranty: 1 Year
The eSSL-Access-8002 (eSSL-Access-8002) is a access control terminal from eSSL — The eSSL eSSL-Access-8002 is a two-door multidoor access-control panel supporting 20,000 cards and 100,000 event records. It provides adaptive 10/100 Mbps TCP/IP communication, four Wiegand 26/34 reader connections, four door-control outputs and a 12V DC power supply.
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Access Control
- Fingerprint capacity
- Not published
- Card capacity
- 20,000
- Connectivity
- TCP/IP · PoE
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — eSSL-Access-8002
- 2-door access control
- 20,000-card capacity
- 100,000-event buffer
- TCP/IP 10M/100M adaptive
- Wiegand 26/34 reader format
- 4 card readers
- 2 entrance readers
- 2 exit readers
- 4 door-control outputs
- 12V DC / 4–7A power supply
- Circuit-board consumption <200mA
- 21.9 × 12.2 × 3.4 cm PCB
- 273 × 228 × 65 mm controller case
- -40°C to +70°C operating temperature
- 10–90% RH non-condensing
- eSSL Professional Door Control Software
- MS Access / MS SQL database support
Product Overview
The eSSL-Access-8002 is designed to control access for two doors using card readers and exit buttons. The current eSSL specification supports entry by card swiping with exit through buttons, or card-based entry and exit.
The controller stores up to 20,000 cards and 100,000 event records. Network communication uses 10M/100M adaptive TCP/IP, making it suitable for Ethernet-based access-control deployments.
The reader interface is Wiegand 26/34, with four reader connections configured as two entrance readers and two exit readers. Four door-control outputs are published.
The controller PCB measures 21.9 × 12.2 × 3.4 cm, while the controller case measures 273 × 228 × 65 mm. eSSL specifies a 12V DC / 4–7A power supply and circuit-board power consumption below 200mA.
The published operating environment is -40°C to +70°C and 10–90% RH without condensation. eSSL's current page identifies compatibility with eSSL Professional Door Control Software and MS Access / MS SQL databases.
What Is eSSL-Access-8002?
It is a two-door multidoor access-control panel.
Software & Integration
The eSSL-Access-8002 is managed by eSSL Professional Door Control Software with MS Access / MS SQL databases over 10M/100M adaptive TCP/IP. Integrates with MegaMind Attendance and MegaMind HRMS access-control deployments.
Applications
Typical deployments for the eSSL-Access-8002: - Offices - Commercial premises - Factories - Institutional buildings - Restricted-access doors - Multi-door access-control installations
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for eSSL-Access-8002 (eSSL-Access-8002).
Verification
| Card Capacity (cards) | 20,000 |
|---|
Interface
| Communication | TCP/IP 10M/100M adaptive |
|---|
Power & Environment
| Power Supply | 12V DC / 4–7A |
|---|---|
| Operating Temperature | -40°C to +70°C |
| Humidity | 10–90% RH, no condensation |
Additional Specifications
| Reader Input Format | Wiegand 26/34 |
|---|---|
| Reader Configuration | 2 In + 2 Out |
| Door Control Output | 4 |
| PCB Size | 21.9 × 12.2 × 3.4 cm |
| Controller Case Size | 273 × 228 × 65 mm |
| Circuit Board Consumption | <200mA |
| Operation Temperature | -40°C to +70°C |
| Operation Humidity | 10–90% RH, no condensation |
| Type | 2-door access control panel |
| Event Capacity | 100,000 |
| Reader Format | Wiegand 26/34 |
| Reader Direction | 2 in + 2 out |
| Door Output Count | 4 |
| Pcb Dimensions | 21.9 × 12.2 × 3.4 cm |
| Controller Dimensions | 273 × 228 × 65 mm |
| Board Power Consumption | <200mA |
| Database | MS Access / MS SQL |
| Event Buffer | 100,000 |
| Tcp Ip Speed | 10M/100M adaptive |
| Door Control Outputs | 4 |
| Controller Case Dimensions | 273 × 228 × 65 mm |
| Rs485 | Not published as controller communication on current page |
Hardware & Controller Interfaces
| Door Count | 2 |
|---|---|
| Reader Count | 4 |
Access Control Software & Features
| Supported Software | eSSL Professional Door Control Software |
|---|
How to choose the right Access Control device
Every access control requirement is different. Before you buy eSSL-Access-8002, compare these points — they are the same checks our engineers use when recommending access control attendance and access solutions to Indian businesses.
Size it to your site
- Card capacity of 20,000 cards
What to look for in a Access Control
- Compare verification methods against your actual workload
- Compare card capacity (cards) against your actual workload
- Compare fingerprint capacity (templates) against your actual workload
- Compare user capacity (users) against your actual workload
- Compare communication against your actual workload
- Compare wiegand against your actual workload
- Compare relay against your actual workload
- Compare access control interface against your actual workload
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — eSSL-Access-8002
Industries and use-cases where the eSSL-Access-8002 is commonly deployed.
- Offices
- Commercial premises
- Factories
- Institutional buildings
- Restricted-access doors
- Multi-door access-control installations
Documents & Downloads — eSSL-Access-8002
Compatibility — eSSL-Access-8002
- MegaMind Attendance
- MegaMind HRMS
