eSSL-Access-8004
Model: eSSL-Access-8004 · SKU: MM-eSSL-Access-8004
Brand: eSSL · Warranty: 1 Year
The eSSL-Access-8004 (eSSL-Access-8004) is a access control terminal from eSSL — The eSSL eSSL-Access-8004 is a four-door multidoor access-control panel supporting 20,000 cards and 100,000 event records. It provides 10/100 Mbps adaptive TCP/IP communication, four Wiegand 26/34 readers, four door-control outputs and configurable 1–600 second door-unlock delay.
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Access Control
- Card capacity
- 20,000
- Connectivity
- TCP/IP
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — eSSL-Access-8004
- 4-door access-control panel
- 20,000-card capacity
- 100,000-event buffer
- TCP/IP 10M/100M adaptive
- Wiegand 26/34
- 4 card readers
- 4 door-control outputs
- 1–600 second adjustable unlocking delay
- 256 time zones
- 256 access levels
- Anti-passback
- Interlock
- Multi-card opening
- Remote door opening
- Real-time software monitoring
- High-speed memory power-interruption protection
- Optional fire and alarm linkage
- 12V DC / 4–7A power supply
- Circuit-board consumption <200mA
- -40°C to +70°C operating temperature
- 10–90% RH non-condensing
Product Overview
The eSSL-Access-8004 is designed for controlled access across four doors. eSSL specifies card-based entry with exit through buttons and provides a networked TCP/IP architecture for access-management software.
The controller stores up to 20,000 cards and 100,000 events. Communication is through 10M/100M adaptive TCP/IP, while the reader format is Wiegand 26/34. Four card readers are supported.

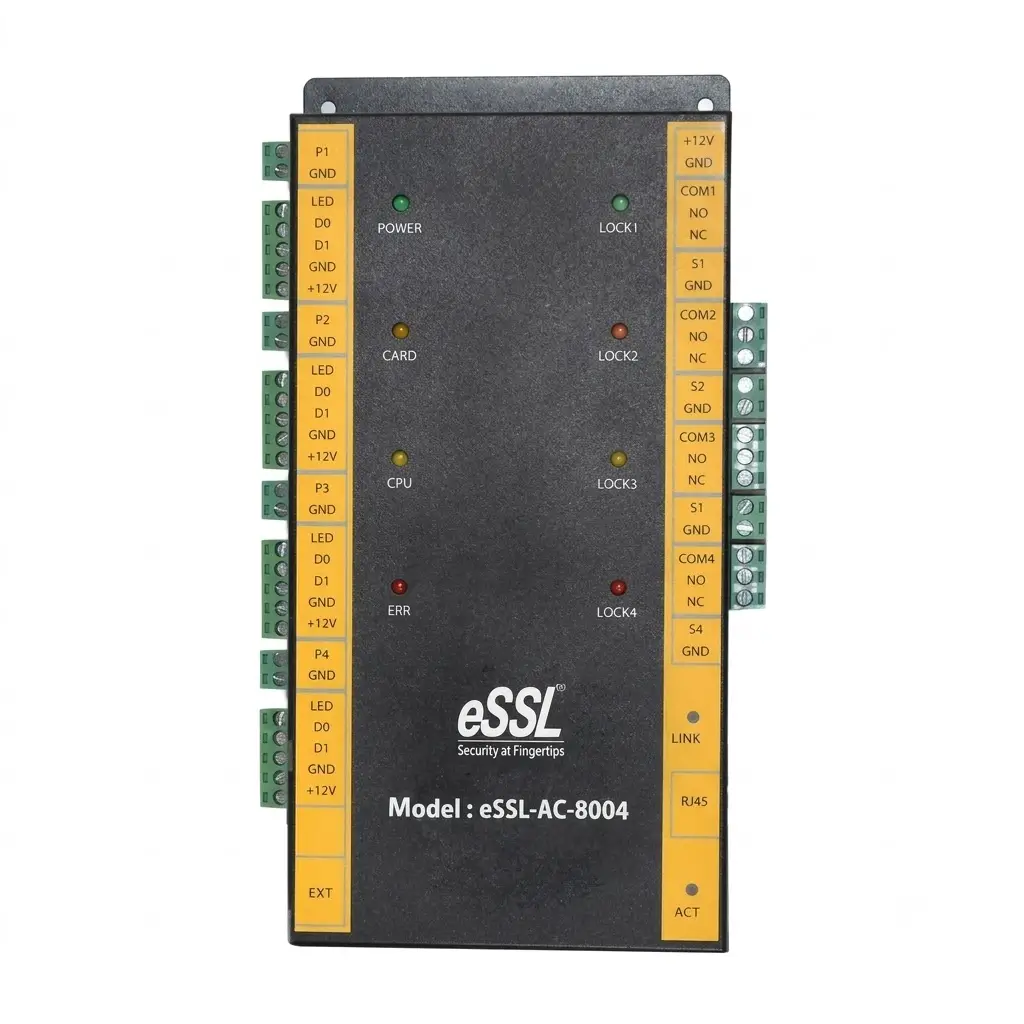

The controller has a PCB size of 21.9 × 12.2 × 3.4 cm and controller-case size of 273 × 228 × 65 mm. Power supply is 12V DC / 4–7A, and circuit-board power consumption is below 200mA.
The controller provides an adjustable 1–600 second unlocking delay, 256 time zones, 256 access levels, anti-passback, interlock, multi-card opening and remote door opening. eSSL also states that records are preserved during power interruption through high-speed memory.
The published operating temperature is -40°C to +70°C with 10–90% RH non-condensing. Fire and alarm linkage is available as an optional function.
What Is eSSL-Access-8004?
It is a four-door multidoor access-control controller.
Software & Integration
The eSSL-Access-8004 publishes 256 time zones, 256 access levels, anti-passback, interlock, multi-card opening, remote door opening, real-time monitoring and high-speed-memory power-interruption protection; fire and alarm linkage is optional. Managed by eSSL Professional Door Control Software with MS Access / MS SQL. Integrates with MegaMind Attendance and MegaMind HRMS access-control deployments.
Applications
Typical deployments for the eSSL-Access-8004: - Offices - Factories - Commercial buildings - Institutions - Other controlled-access facilities
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for eSSL-Access-8004 (eSSL-Access-8004).
Verification
| Card Capacity (cards) | 20,000 |
|---|
Interface
| Communication | TCP/IP 10M/100M adaptive |
|---|
Power & Environment
| Power Supply | 12V DC / 4–7A |
|---|---|
| Operating Temperature | -40°C to +70°C |
| Humidity | 10–90% RH, no condensation |
Additional Specifications
| Reader Input Format | Wiegand 26/34 |
|---|---|
| Card Readers | 4 |
| Door Control Output | 4 |
| PCB Size | 21.9 × 12.2 × 3.4 cm |
| Controller Case Size | 273 × 228 × 65 mm |
| Circuit Board Consumption | <200mA |
| Unlocking Delay | 1–600 seconds, adjustable |
| Fire & Alarm Linkage | Optional |
| Operation Temperature | -40°C to +70°C |
| Operation Humidity | 10–90% RH, no condensation |
| Type | 4-door access control panel |
| Event Capacity | 100,000 |
| Reader Format | Wiegand 26/34 |
| Door Output Count | 4 |
| Pcb Dimensions | 21.9 × 12.2 × 3.4 cm |
| Controller Dimensions | 273 × 228 × 65 mm |
| Board Power Consumption | <200mA |
| Unlock Delay | 1–600 seconds, adjustable |
| Database | MS Access / MS SQL |
| Event Buffer | 100,000 |
| Tcp Ip Speed | 10M/100M adaptive |
| Door Control Outputs | 4 |
| Controller Case Dimensions | 273 × 228 × 65 mm |
| Remote Door Opening | Yes |
| Power Interruption Protection | High-speed memory — records not lost |
| Fire Linkage | Optional |
| Alarm Linkage | Optional |
Hardware & Controller Interfaces
| Door Count | 4 |
|---|---|
| Reader Count | 4 |
Access Control Software & Features
| Supported Software | eSSL Professional Door Control Software |
|---|---|
| Time Zones | 256 |
| Access Levels | 256 |
| Anti-Passback | Yes |
| Interlock | Yes |
| Multi-Card Opening | Yes |
| Real-Time Monitoring | Yes |
How to choose the right Access Control device
Every access control requirement is different. Before you buy eSSL-Access-8004, compare these points — they are the same checks our engineers use when recommending access control attendance and access solutions to Indian businesses.
Size it to your site
- Card capacity of 20,000 cards
What to look for in a Access Control
- Compare verification methods against your actual workload
- Compare card capacity (cards) against your actual workload
- Compare fingerprint capacity (templates) against your actual workload
- Compare user capacity (users) against your actual workload
- Compare communication against your actual workload
- Compare wiegand against your actual workload
- Compare relay against your actual workload
- Compare access control interface against your actual workload
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — eSSL-Access-8004
Industries and use-cases where the eSSL-Access-8004 is commonly deployed.
- Offices
- Factories
- Commercial buildings
- Institutions
- Other controlled-access facilities
Documents & Downloads — eSSL-Access-8004
Compatibility — eSSL-Access-8004
- MegaMind Attendance
- MegaMind HRMS
