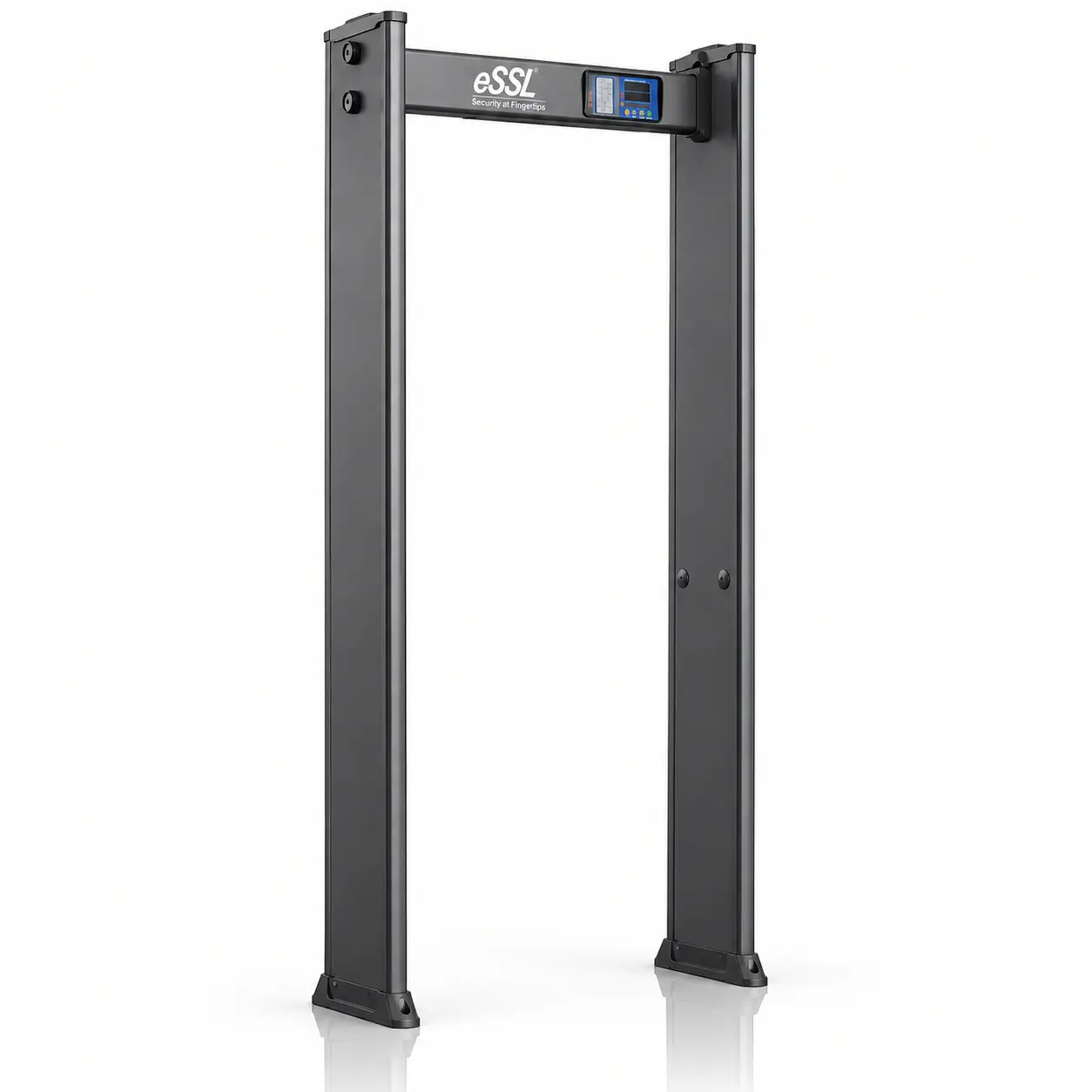

D270-18-IP54
Model: D270-18-IP54 · SKU: MM-eSSL-D270-18-IP54
Brand: eSSL · Warranty: 1 Year
The D270-18-IP54 (D270-18-IP54) is a dfmd terminal from eSSL — eSSL D270-18-IP54 is an IP54-based 18-zone door-frame metal detector with an ABS body, 0–400 adjustable sensitivity, 15 alarm tones, infrared pass/alarm counting and high-brightness LED zone display.
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- DFMD
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — D270-18-IP54
- IP54-based 18-zone door-frame metal detector
- Ergonomic structure, new design
- High-brightness LED digital display with zone indication
- 0–400 adjustable sensitivity
- 0–50 adjustable volume
- 0–3 sec alarm volume
- 15 different alarm tones
- Ferrous metal detection
- Infrared sensor for pass count & alarm count
- ABS (Acrylonitrile Butadiene Styrene) construction
- Easy fixing of cross beams with side-door DFMD controller
- Simple installation — 2 doors (R & L), cross beam with wire probe
Product Overview
The eSSL D270-18-IP54 is an IP54-based 18-zone door-frame metal detector designed for entry screening. The official eSSL specification identifies its working principle as Electromagnetic with ABS raw-material construction.
The published technical specification lists net weight of 21 kg (gross 27 kg), an external size of 2165 × 828 × 349 mm and a passage size of 2017 × 720 × 349 mm. Working temperature is -20°C to +65°C with 99% non-condensing humidity, and input is AC 100V–240V / 50–60Hz.
The unit provides 0–400 adjustable sensitivity, 0–50 volume, 0–3 second alarm volume and 15 different alarm tones, detecting ferrous metals. It includes a high-brightness LED digital zone display and an infrared sensor for pass count and alarm count.
What Is D270-18-IP54?
D270-18-IP54 is an IP54-based 18-zone door-frame metal detector from eSSL.
Software & Integration
The D270-18-IP54 supports infrared pass and alarm counting and can be paired with compatible access-control and entrance-automation systems at screening points. Integrates with MegaMind Attendance and MegaMind HRMS.
Applications
Typical deployments for the D270-18-IP54: - Factory entrances - Office entrances - Hotel security - Mall security - Educational institutions - Airport/transport checkpoints - Railway and metro entrances - High-security building entrances
Ideal for — D270-18-IP54
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for D270-18-IP54 (D270-18-IP54).
Detection
| Zones | 18 |
|---|---|
| Detection | Ferrous metals |
| Alarm Tones | 15 different tones |
| Working Principle | Electromagnetic |
Physical
| External Size | 2165 × 828 × 349 mm |
|---|---|
| Passage Size | 2017 × 720 × 349 mm |
| IP Rating | IP54 |
| Net Weight (kg) | 21 kg |
Additional Specifications
| Sensitivity | 0–400 |
|---|---|
| Volume | 0–50 |
| Type | 18-zone door-frame metal detector |
| Material | ABS (Acrylonitrile Butadiene Styrene) raw materials |
| Working Temperature | -20°C to +65°C |
| Input | AC 100–240V / 50–60Hz |
| Wi-Fi | No |
| TCP/IP | No |
| LAN Interface | No |
| USB Port | No |
| Wiegand Interface | No |
| PoE Support | No |
| Battery Backup | No |
| Frequency | 0–100 |
| Detection Zones | 18 |
| Metal Detection Threshold | Ferrous metals <75 gm |
| Ip Rating Published | 54 [Dust proof coating] |
| Working Humidity | 99%, non-condensing |
| Input Voltage | AC 100–240V |
| Input Frequency | 50–60Hz |
| Product Colour | Matte Black |
| Gross Weight | 27 kg |
| Sensitivity Range | 0–400 |
| Volume Range | 0–50 |
| Alarm Duration | 0–3 sec |
| Pass Count Sensor | Infrared |
| Alarm Count Sensor | Infrared |
| Zone Display | High-brightness LED digital display with zone indicators |
| Installation Type | 2 doors + cross beam |
How to choose the right DFMD device
Every dfmd requirement is different. Before you buy D270-18-IP54, compare these points — they are the same checks our engineers use when recommending dfmd attendance and access solutions to Indian businesses.
What to look for in a DFMD
- Compare zones against your actual workload
- Compare sensitivity against your actual workload
- Compare detection against your actual workload
- Compare alarm tones against your actual workload
- Compare working principle against your actual workload
- Compare external size against your actual workload
- Compare passage size against your actual workload
- Compare ip rating against your actual workload
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — D270-18-IP54
Industries and use-cases where the D270-18-IP54 is commonly deployed.
- Factory entrances
- Office entrances
- Hotel security
- Mall security
- Educational institutions
- Airport/transport checkpoints
- Railway and metro entrances
- High-security building entrances
Documents & Downloads — D270-18-IP54
Compatibility — D270-18-IP54
- MegaMind Attendance
- MegaMind HRMS
