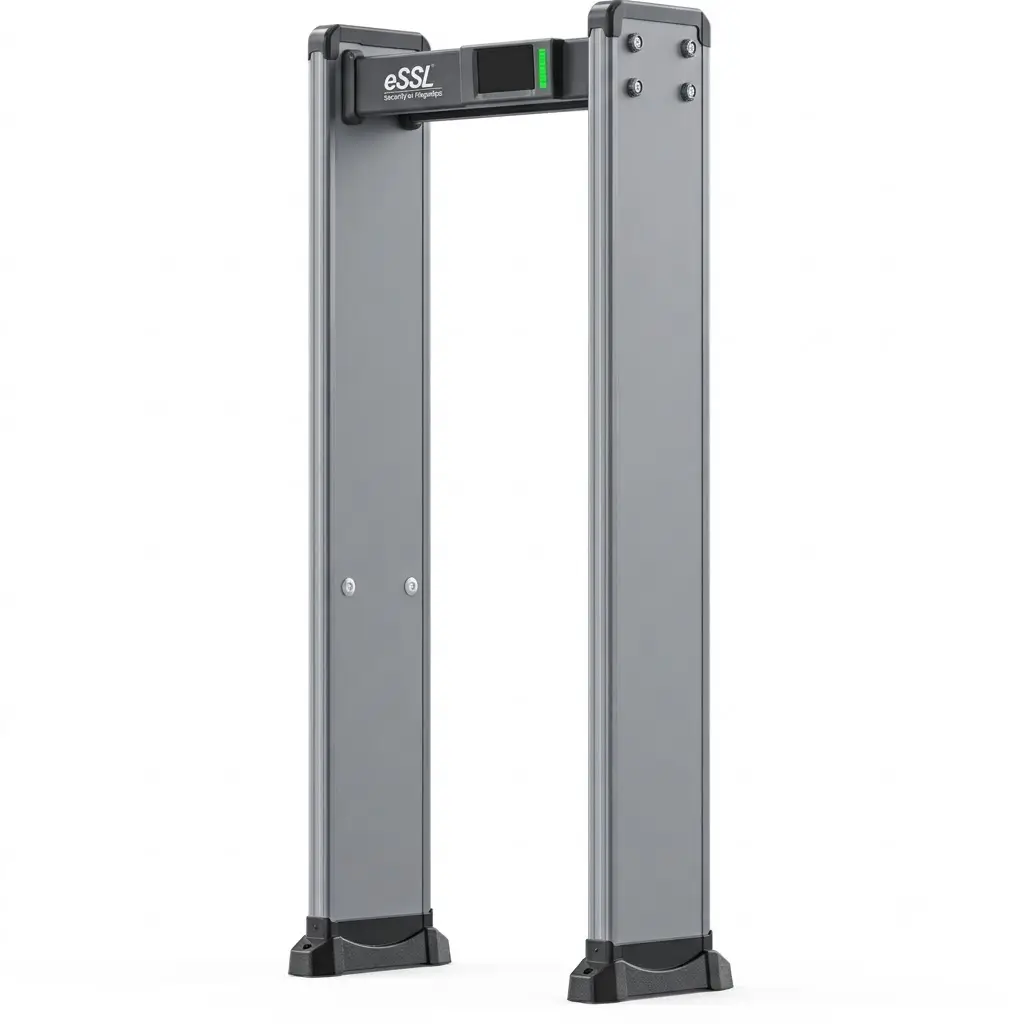

D330-33T-IP54
Model: D330-33T-IP54 · SKU: MM-eSSL-D330-33T-IP54
Brand: eSSL · Warranty: 1 Year
The D330-33T-IP54 (D330-33T-IP54) is a dfmd terminal from eSSL — The eSSL D330-33T-IP54 is a 33-zone touchscreen walk-through metal detector supporting selectable 12/18/33-zone operation, adjustable detection parameters, infrared counting, low magnetic field technology and optional integration with entrance automation equipment.
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- DFMD
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — D330-33T-IP54
- Selectable 12/18/33 zones
- 7-inch LCD touchscreen
- Electromagnetic working principle
- Security level 1–100
- Sensitivity level 0–255
- Sensitivity adjustable 0–400
- Volume adjustable 0–50
- Alarm volume 0–20
- Alarm sound 1–16
- Screen brightness 10–100
- Screen sleep time 1–60 minutes
- 15 different alarm tones
- Infrared pass/alarm counting
- Multiple resettable counters
- 8-digit password protection
- Low magnetic field technology
- Optional entrance automation integration
- External lithium battery connection
- IP54 enclosure
- Matte Black finish
Product Overview
The D330-33T-IP54 expands the D330 platform to a 33-zone configuration with a 7-inch LCD touchscreen. According to eSSL's published product specifications, the detector supports selectable 12, 18 and 33 zones, enabling different zone configurations for security screening deployments.
The system operates using electromagnetic detection and is built from ABS material. Configuration parameters include operating frequency, security level, sensitivity level, adjustable sensitivity, volume, alarm volume, alarm sound, screen brightness and screen sleep time.
For operational monitoring, eSSL specifies infrared sensors for pass and alarm counting and counters for pass, alarm, net, return-pass and return-alarm values. The product also includes password protection and installation guidance for reducing interference between walls, nearby DFMDs and X-ray equipment.
The D330-33T-IP54 can be connected to turnstiles, flap barriers and swing barriers. eSSL also specifies an external lithium battery connection and low magnetic field technology.
What Is D330-33T-IP54?
D330-33T-IP54 is a 33-zone touchscreen walk-through metal detector with selectable 12/18/33-zone operation and IP54 protection.
Software & Integration
The D330-33T-IP54 can be connected with turnstiles, flap barriers and swing barriers. An external lithium battery can be connected to the DFMD controller. eSSL identifies low magnetic field technology and weak-magnetic-field compliance. Integrates with MegaMind Attendance and MegaMind HRMS.
Applications
Typical deployments for the D330-33T-IP54: - Factory security screening - Metro and railway stations - Airports - Hotels - Malls - Offices - Colleges - Public facilities - Controlled entry and exit checkpoints
Ideal for — D330-33T-IP54
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for D330-33T-IP54 (D330-33T-IP54).
Detection
| Zones | 33 (selectable 12/18/33) |
|---|---|
| Detection | Ferrous metals |
| Alarm Tones | 15 |
| Working Principle | Electromagnetic |
Physical
| External Size | 2191 × 875 × 446 mm |
|---|---|
| Passage Size | 2007 × 720 × 446 mm |
| IP Rating | IP54 |
| Net Weight (kg) | 33 kg |
| Power | 12W |
Additional Specifications
| Sensitivity Adjustable | 0–400 |
|---|---|
| Volume Adjustable | 0–50 |
| Zone Selection | 12 / 18 / 33 |
| Detection of Metal | Thickness 2mm, Length 50mm, Width 20mm |
| Distance from Wall | ≥100 mm |
| Distance Between 2 DFMD | ≥500 mm |
| Distance from X-Ray Machine | >800 mm |
| Password | 8-digit password protection |
| Type | 33-zone touch screen walk-through metal detector |
| Display | 7-inch LCD touchscreen |
| Material | ABS (Acrylonitrile Butadiene Styrene) raw materials |
| Working Temperature | -20°C to +65°C |
| Input | AC 100–240V / 50Hz–60Hz |
| Wi-Fi | No |
| TCP/IP | No |
| LAN Interface | No |
| USB Port | No |
| Wiegand Interface | No |
| PoE Support | No |
| Battery Backup | No |
| Zone Configuration | 12 / 18 / 33 selectable |
| Display Type | 7 Inch LCD Touchscreen |
| Product Colour | Matte Black |
| Operating Frequency | 1–100 |
| Security Level | 1–100 |
| Sensitivity Level | 0–255 |
| Sensitivity Range | 0–400 |
| Volume Range | 0–50 |
| Alarm Volume | 0–20 |
| Alarm Sound | 1–16 |
| Screen Brightness | 10–100 |
| Screen Sleep Time | 1–60 Minutes |
| Time Setting | Yes |
| Metal Detection Capability | Thickness 2mm, Length 50mm, Width 20mm |
| Package Size | 2290 × 625 × 190 mm (L × W × H) |
| Packaging | Carton Box |
| Gross Weight | 39 Kg |
| Working Humidity | 99%, non-condensing |
| Input Voltage | AC 100–240V |
| Input Frequency | 50Hz–60Hz |
| Power Consumption | 12W |
| Pass Count | 0–999999 |
| Alarm Count | 0–999999 |
| Net Count | 0–999999 |
| Return Pass Count | 0–999999 |
| Return Alarm Count | 0–999999 |
| Turnstile Integration | Optional |
| Flap Barrier Integration | Optional |
| Swing Barrier Integration | Optional |
| External Battery Support | External lithium battery (connected to DFMD controller) |
| Wall Clearance | ≥100 mm from wall |
| Dfmd Clearance | ≥500 mm between two units |
| Xray Clearance | >800 mm from X-Ray machine |
| Minimum Installation Area | Width 1000 mm × Length 2000 mm |
| Low Magnetic Field Technology | Yes |
| Password Protection | 8-digit password |
