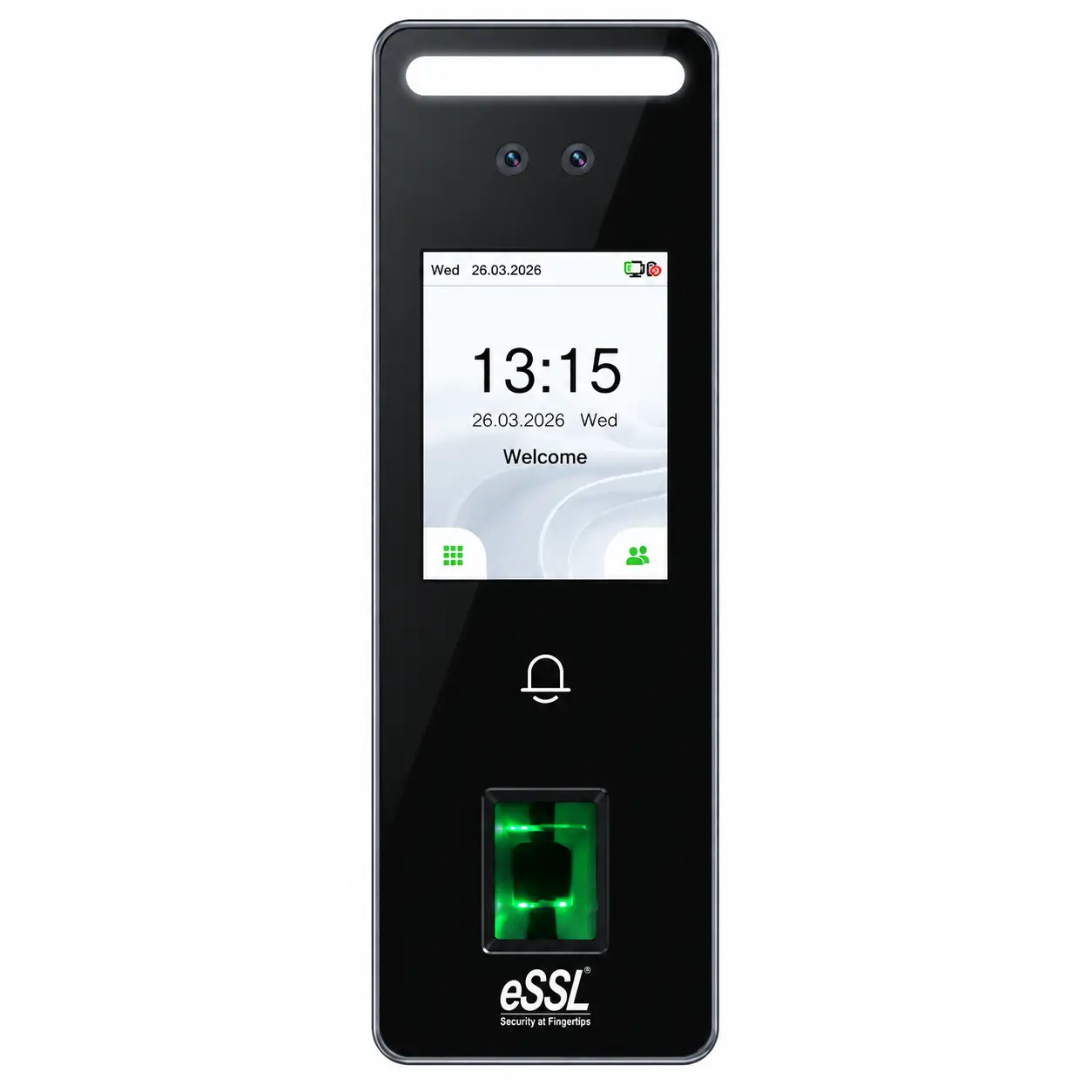

AI-FACE MAGNUM
Model: Aiface MAGNUM · SKU: MM-eSSL-MAGNUM
Brand: eSSL · Warranty: 1 Year
The AI-FACE MAGNUM (Aiface MAGNUM) is a face, fingerprint, rfid card face terminal from eSSL — The eSSL AI-FACE MAGNUM is a biometric face recognition access-control device supporting 1,500 face templates, 5,000 fingerprints, 10,000 cards and 200,000 transactions. It features a 2.4-inch touch screen, eSSLFace 3.5 facial recognition algorithm, recognition speed below 1 second, 0.5–2 metre recognition distance, IP65 protection and TCP/IP, optional Wi-Fi, Wiegand and RS485 connectivity.
- Authentication
- Face, Fingerprint, RFID Card
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Face
- Face capacity
- 1,500
- Fingerprint capacity
- 5,000
- Card capacity
- 10,000
- Transactions
- 200,000
- Recognition speed
- <1 sec
- Connectivity
- Wi-Fi · TCP/IP · Wiegand
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — Aiface MAGNUM
- Face recognition, fingerprint recognition and RFID card support
- 1,500 face capacity
- 5,000 fingerprint capacity
- 10,000 card capacity
- 200,000 transaction capacity
- 2.4-inch touch screen
- eSSLFace 3.5 algorithm
- Facial recognition <1 sec
- Recognition distance 0.5–2 m
- 12.5 kHz ID card and 13.56 MHz IC card modules
- Adjustable LED fill light
- Onboard web server
- TCP/IP, optional Wi-Fi, Wiegand In/Out, RS485
- Third-party electric lock, door sensor, exit button, alarm output and auxiliary input
- IP65 water and dust resistance
- Linux, 1.2GHz dual-core CPU, 256MB RAM, 512MB flash
Product Overview
The AI-FACE MAGNUM is designed for biometric attendance and access-control deployments where face, fingerprint and RFID credentials need to be supported by a single terminal. eSSL identifies it as a Face product and publishes 1,500 face capacity, 5,000 fingerprint capacity and 10,000-card capacity, with storage for 200,000 transactions.
The terminal uses the eSSLFace 3.5 facial recognition algorithm and provides facial recognition at less than 1 second. Its recognition distance is published as 0.5 metre to 2 metres.
The device supports card modules for 12.5 kHz ID cards and 13.56 MHz IC cards, with adjustable-brightness fill light. It also has an onboard web server for system configuration.
The MAGNUM is differentiated by its IP65 water and dust resistance, with an operating temperature of -5°C to 45°C. Access-control interfaces include third-party electric lock, door sensor, exit button, alarm output and auxiliary input.
What Is AI-FACE MAGNUM?
eSSL AI-FACE MAGNUM is a biometric face, fingerprint and RFID attendance/access-control device designed for deployments where face, fingerprint and RFID credentials need to be supported by a single terminal.
Software & Integration
The MAGNUM includes an onboard web server for configuration and eSSL's current product page does not publish a separate Supported Software field; it integrates with MegaMind Attendance, MegaMind HRMS and access-control deployments.
Applications
Typical deployments for the AI-FACE MAGNUM: - Biometric Attendance - Face + Fingerprint + RFID Access - Outdoor/Dusty Installation (IP65) - Controlled Door Entry - Industrial Employee Entry - Workforce Time Management - Secure Office Entry
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for AI-FACE MAGNUM (Aiface MAGNUM).
General
| Model | Aiface MAGNUM |
|---|---|
| Device Type | Face + fingerprint + RFID biometric time attendance & access control system |
| Display | 2.4" touch screen |
| Recognition Speed | <1 sec |
Biometric
| Face Capacity (templates) | 1,500 |
|---|---|
| Fingerprint Capacity (templates) | 5,000 |
| Card Capacity (cards) | 10,000 |
| Transaction Capacity (logs) | 2,00,000 |
Connectivity
| TCP/IP | Yes |
|---|---|
| Wi-Fi | Yes |
| USB | No |
| Wiegand | Yes |
| PoE | No |
Power
| Power | 12V / 3A |
|---|---|
| Battery Backup | No |
Environment
| Operating Temperature | -5°C to 45°C |
|---|---|
| Sensor | 1MP binocular camera |
Additional Specifications
| Facial Algorithm | eSSLFace 3.5 |
|---|---|
| Facial Recognition Distance | 0.5–2 m |
| Communication | TCP/IP, Wiegand Input/Output, RS485 |
| Optional Communication | Wi-Fi |
| Operating System | Linux |
| CPU / RAM / Flash | 1.2GHz dual core / 256MB / 512MB |
| Fill Light | Adjustable LED fill light |
| Standard Functions | ADMS, DST, Camera, 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Tamper Switch Alarm, Multiple Anti-Passback |
| Access Control | Third-party electric lock |
| Door Sensor / Exit Button | Yes / Yes |
| Alarm Output / Auxiliary Input | Yes / Yes |
| Power Supply | 12V / 3A |
| Operating Humidity | 10%–90% RH |
| Face Algorithm | eSSLFace 3.5 |
| Rs485 | Yes |
| Humidity | 10%–90% RH |
| Protection | IP65 |
| LAN Interface | No |
| Camera | 1MP binocular |
| Facial Recognition Speed | <1 sec |
| Face Distance | 0.5–2 m |
| Os | Linux |
| Cpu | 1.2GHz dual core |
| Ram | 256MB |
| Flash | 512MB |
| Card Modules | 12.5 kHz ID / 13.56 MHz IC |
| Onboard Web Server | Yes |
How to choose the right Face device
Every face requirement is different. Before you buy Aiface MAGNUM, compare these points — they are the same checks our engineers use when recommending face attendance and access solutions to Indian businesses.
Size it to your site
- Face capacity of 1,500 templates — size it against your head count plus future growth
- Fingerprint capacity of 5,000 templates
- Card capacity of 10,000 cards
- Transaction capacity of 200,000 logs — enough for daily punches across sites
- Recognition speed of <1 sec
- Supported methods: face, fingerprint, rfid card — pick the method your employees will actually use
What to look for in a Face
- Compare device type against your actual workload
- Compare display against your actual workload
- Compare recognition speed against your actual workload
- Compare face capacity (templates) against your actual workload
- Compare fingerprint capacity (templates) against your actual workload
- Compare card capacity (cards) against your actual workload
- Compare transaction capacity (logs) against your actual workload
- Check TCP/IP is built in if your site needs it
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- Wi-Fi connectivity for wireless network deployment
- TCP/IP Ethernet port for robust network communication
- Wiegand interface for connecting external card readers or door controllers
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — Aiface MAGNUM
Industries and use-cases where the AI-FACE MAGNUM is commonly deployed.
- Biometric Attendance
- Face + Fingerprint + RFID Access
- Outdoor/Dusty Installation (IP65)
- Controlled Door Entry
- Industrial Employee Entry
- Workforce Time Management
- Secure Office Entry
Documents & Downloads — Aiface MAGNUM
Compatibility — Aiface MAGNUM
- MegaMind Attendance
- MegaMind HRMS
