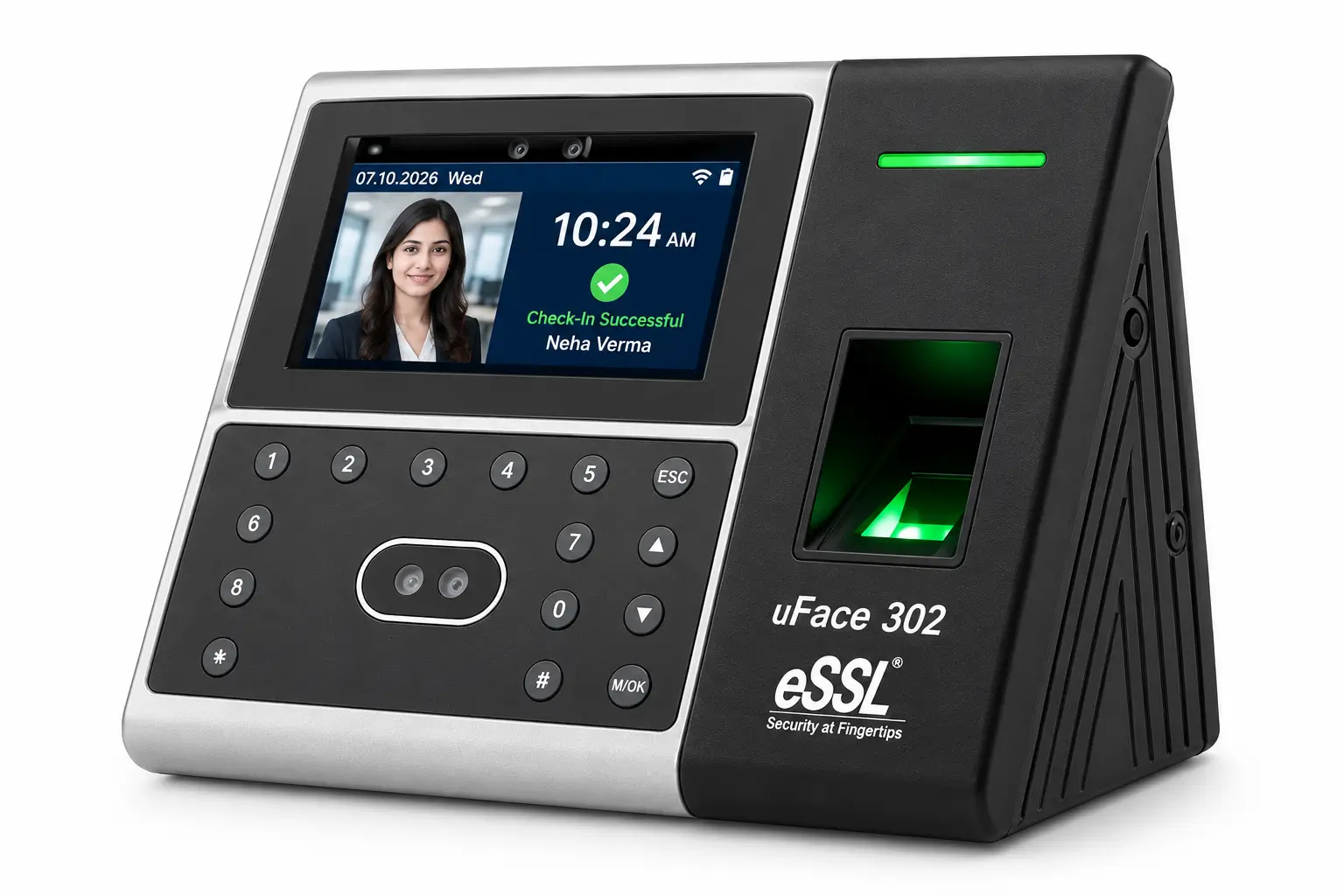

uFace-302
Model: UFACE302 · SKU: MM-eSSL-UFACE302
Brand: eSSL · Warranty: 1 Year
The uFace-302 (UFACE302) is a face, fingerprint, id card face terminal from eSSL — eSSL UFACE302 is a multi-biometric time attendance and access-control terminal supporting 3,000 faces, 4,000 fingerprints, 10,000 ID cards and 100,000 transactions. It features a 4.3-inch touchscreen, TCP/IP, RS232/485 and USB Host connectivity, with optional MIFARE, Wi-Fi, 3G and 2,000 mAh backup battery support.
- Authentication
- Face, Fingerprint, ID Card
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Face
- Face capacity
- 3,000
- Fingerprint capacity
- 4,000
- Card capacity
- 10,000
- Transactions
- 100,000
- Recognition speed
- ≤0.5 sec (development page)
- Connectivity
- TCP/IP · USB · Wiegand
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — UFACE302
- 3,000 face capacity
- 4,000 fingerprint capacity
- 10,000 ID card capacity
- 100,000 transaction capacity
- 4.3-inch touchscreen
- TCP/IP, RS232/485 and USB Host
- Push Data
- Wiegand output
- Third-party electric lock, door sensor, exit button and alarm
- Optional MIFARE
- Optional Wi-Fi and 3G
- Optional 2,000 mAh battery
- High verification speed
- Chip encryption for firmware protection
Product Overview
The eSSL UFACE302 combines face recognition, fingerprint and card-based identification with attendance and access-control functions. The official product specification lists 3,000 face templates, 4,000 fingerprints, 10,000 ID cards and 100,000 transactions.
Its communication interfaces include TCP/IP, RS232/485 and USB Host, with push-data capability. The device includes a 4.3-inch touchscreen and supports access-control integration with a third-party electric lock, door sensor, exit button and alarm.
The current eSSL page lists MIFARE, Wi-Fi, 3G and a 2,000 mAh backup battery as optional functions. Identification speed (≤0.5 s), FAR (≤0.0001%) and FRR (≤1%) figures are additionally published on eSSL's development product page.
What Is uFace-302?
UFACE302 is an eSSL multi-biometric face recognition time-attendance and access-control terminal combining face, fingerprint and card-based identification.
Software & Integration
The UFACE302 is supported by eSSL's attendance software and is configured by MegaMind Technosoft with MegaMind Attendance, MegaMind HRMS and MegaMind Payroll software.
Applications
Typical deployments for the uFace-302: - Time Attendance - Face Recognition Attendance - Biometric Access Control - Office Entry - Controlled Door Access - Workforce Time Management
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for uFace-302 (UFACE302).
General
| Model | UFACE302 |
|---|---|
| Device Type | Multi-biometric attendance & access control terminal |
| Display | 4.3" touch screen |
| Recognition Speed | ≤0.5 sec (development page) |
Biometric
| Face Capacity (templates) | 3,000 |
|---|---|
| Fingerprint Capacity (templates) | 4,000 |
| Card Capacity (cards) | 10,000 |
| Transaction Capacity (logs) | 1,00,000 |
Connectivity
| TCP/IP | Yes |
|---|---|
| Wi-Fi | No |
| USB | Yes |
| Wiegand | Output |
| PoE | No |
Power
| Power | 12V 3A |
|---|---|
| Battery Backup | No |
Environment
| Operating Temperature | 0°C to 45°C |
|---|
Additional Specifications
| ID Card Capacity | 10,000 |
|---|---|
| Communication | TCP/IP, RS232/485, USB Host |
| Optional Card | MIFARE |
| Optional Wireless | Wi-Fi, 3G |
| Optional Battery | 2,000 mAh |
| Optional Reader | FR-1200 |
| Access Control | Third-party electric lock, door sensor, exit button, alarm |
| Power Supply | 12V 3A |
| Operating Humidity | 20%–80% |
| Face Identification Speed | ≤0.5 sec (eSSL development product page) |
| Rs485 | Yes |
| Humidity | 20%–80% |
| Package Weight | 1.6 kg |
| LAN Interface | No |
| Usb Host | Yes |
| Optional | MIFARE, Wi-Fi, 3G, 2,000 mAh battery, FR-1200 |
| Identification Speed | ≤0.5 sec (eSSL development product page) |
| Far | ≤0.0001% (eSSL development product page) |
| Frr | ≤1% (eSSL development product page) |
| Push Data | Yes |
How to choose the right Face device
Every face requirement is different. Before you buy UFACE302, compare these points — they are the same checks our engineers use when recommending face attendance and access solutions to Indian businesses.
Size it to your site
- Face capacity of 3,000 templates — size it against your head count plus future growth
- Fingerprint capacity of 4,000 templates
- Card capacity of 10,000 cards
- Transaction capacity of 100,000 logs — enough for daily punches across sites
- Recognition speed of ≤0.5 sec (development page)
- Supported methods: face, fingerprint, id card — pick the method your employees will actually use
What to look for in a Face
- Compare device type against your actual workload
- Compare display against your actual workload
- Compare recognition speed against your actual workload
- Compare face capacity (templates) against your actual workload
- Compare fingerprint capacity (templates) against your actual workload
- Compare card capacity (cards) against your actual workload
- Compare transaction capacity (logs) against your actual workload
- Check TCP/IP is built in if your site needs it
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- TCP/IP Ethernet port for robust network communication
- USB drive download for sites without active network cabling
- Wiegand interface for connecting external card readers or door controllers
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — UFACE302
Industries and use-cases where the uFace-302 is commonly deployed.
- Time Attendance
- Face Recognition Attendance
- Biometric Access Control
- Office Entry
- Controlled Door Access
- Workforce Time Management
Documents & Downloads — UFACE302
Compatibility — UFACE302
- MegaMind Attendance
- MegaMind HRMS
