FL-W-700 (FL-W-700)
FL-W-700 - Primary View
Fingerprint Door Locks
Smart Locks
Standalone Product
In Stock

FL-W-700

Model: FL-W-700  ·  SKU: MM-eSSL-FL-W-700

Brand: eSSL  ·  Warranty: 1 Year

Card

The FL-W-700 (FL-W-700) is a card fingerprint door locks terminal from eSSL — eSSL FL-W-700 is a zinc-alloy electronic door lock with 5 master and 5 user card capacity, 3 × AA alkaline battery power, low-voltage and wrong-card alarms, anti-picked protection and USB external power backup.

Authentication
Card
Brand
eSSL
Product type
Standalone Product
Sold by
MegaMind Technosoft
Category
Fingerprint Door Locks
Fingerprint capacity
Not published
Card capacity
5 master + 5 user cards
Connectivity
External USB power backup port
Availability
In Stock
Warranty
1 Year

Key Features — FL-W-700

  • Unique design with appearance patent
  • Level-management security control
  • Fixed mode or Free mode
  • Card-based master/user management
  • 5 master cards + 5 user cards
  • Locked-status indicator
  • Wrong-card alarm
  • Low-voltage alarm
  • Anti-picked alarm
  • External USB power backup
  • Zinc-alloy material
  • 3 × AA alkaline battery power
Get Quote
+91-9818442254WhatsAppCompare
Share:WhatsApp

Product Overview

The eSSL FL-W-700 is an electronic access lock listed within eSSL's Fingerprint Door Lock category. Its published feature set focuses on level-management control, card-based master/user administration, fixed or free operating modes and visual lock-status indication.

The unit uses 3 × AA alkaline batteries and is specified for doors with thickness of ≥11.5 mm. It is constructed from zinc alloy and provides wrong-card, low-voltage and anti-picked alarms, together with external USB power backup.

What Is FL-W-700?

It is an eSSL electronic lock listed in the Fingerprint Door Lock category.

Software & Integration

No publisher software interface is documented for the FL-W-700. Access and management are card-based (5 master + 5 user cards) with fix/free operating modes. Aligns with MegaMind Attendance and MegaMind HRMS access deployments.

Applications

Typical deployments for the FL-W-700: - Compatible electronic-door installations with card-based master/user administration

Verified Datasheet21 specifications • 3 categories

Technical Specifications

Detailed hardware, electrical, network, and operational specifications for FL-W-700 (FL-W-700).

Download PDF Datasheet

Access Methods

1 spec
Card Capacity (cards)
5 master + 5 user cards

Power & Installation

5 specs
Battery
3 × AA alkaline batteries
Power Supply
3 × AA alkaline batteries
Door Thickness
≥11.5 mm
Working Temperature
-15 ～ +55℃
Material
Zinc Alloy

Additional Specifications

15 specs
Type
Card-managed electronic door lock
Static Current
≤25µA
Dynamic Current
≤200mA
Operating Mode
Fix mode or Free mode
Alarm Voltage
3.7±0.2V
External Backup
USB port
Master Cards
5
User Cards
5
Card Management
Yes — 5 master + 5 user cards
Working Humidity
20 ～ 95%RH
Locked Status Indicator
Yes
Wrong Card Alarm
Yes
Low Voltage Alarm
Yes
Anti Picked Alarm
Yes
Fingerprint Enabled
Not published on current page

How to choose the right Fingerprint Door Locks device

Every fingerprint door locks requirement is different. Before you buy FL-W-700, compare these points — they are the same checks our engineers use when recommending fingerprint door locks attendance and access solutions to Indian businesses.

Size it to your site

  • Card capacity of 5 master + 5 user cards cards
  • Supported methods: card — pick the method your employees will actually use

What to look for in a Fingerprint Door Locks

  • Compare unlock methods against your actual workload
  • Compare fingerprint capacity (templates) against your actual workload
  • Compare password capacity (codes) against your actual workload
  • Compare card capacity (cards) against your actual workload
  • Compare battery against your actual workload
  • Compare power supply against your actual workload
  • Compare door thickness against your actual workload
  • Compare recognition speed against your actual workload

Service, warranty & software

  • Warranty: 1 Year — confirm claim process and turnaround
  • Works with MegaMind Attendance software for shifts, payroll export and reports
  • Pan-India installation, training and AMC support from certified engineers
  • Availability: In Stock — confirm lead time with your quote

Connectivity & integration

  • API and SDK support for custom HRMS, ERP and payroll integration

Applications — FL-W-700

Industries and use-cases where the FL-W-700 is commonly deployed.

  • Compatible electronic-door installations with card-based master/user administration

Documents & Downloads — FL-W-700

Compatibility — FL-W-700

  • MegaMind Attendance
  • MegaMind HRMS

Frequently Asked Questions — FL-W-700

Software & Integration — FL-W-700

Software shown here is explicitly configured with this model — nothing is auto-claimed.

Explore all software →
Cloud & On-Prem

MegaMind Attendance

Time and attendance management system with shift rostering, OT rules, live dashboards, employee self-service and payroll export. Works with face, fingerprint, card and Aadhaar biometric devices.

MegaMind Attendance is the complete time and attendance management system for Indian organisations. It captures punches from face, fingerprint, RFID and Aadhaar biometric terminals, applies shift and overtime rules automatically, and exports clean payroll-ready records with a full audit trail.

  • Eliminates manual registers, buddy punching and proxy attendance with biometric verification
  • Automates shift, late, early and overtime calculations for the whole workforce, including double-shift and weekly-off rules
  • Shift and roster management with rotating shift support
  • Late, early and OT calculations with configurable policies
  • Multiple punch policies (1 to 4 punches per day)
View MegaMind Attendance
Cloud & On-Prem

MegaMind HRMS

Best HRMS software in India for HR, attendance, leave and payroll — PF/ESI/TDS compliance, ESS portal, cloud or on-premise. Built for retail, manufacturing, healthcare & government.

MegaMind HRMS unifies HR, attendance and payroll in one Indian-compliant platform — biometric attendance, leave, employee self-service, PF/ESI/TDS payroll, cloud or on-premise.

  • Single platform for HR, attendance, leave, payroll and ESS — no more tool-hopping
  • Biometric attendance feeds payroll automatically from face, fingerprint and Aadhaar devices
  • Employee database, documents and onboarding workflow
  • Biometric attendance integration with shift and OT rules
  • Leave management with balances, encashment and approvals
View MegaMind HRMS
Cloud & On-Prem

MegaMind Payroll

Payroll software in India with PF, ESI, TDS and professional tax — computes salaries from biometric attendance, generates payslips, challans, Form 16 and bank files.

MegaMind Payroll computes salaries directly from biometric attendance and stays compliant — PF, ESI, professional tax and TDS handled automatically, with payslips, challans, Form 16 and bank files.

  • Salaries computed directly from biometric attendance — no manual entry, no disputes
  • PF, ESI, professional tax and TDS handled with current statutory rates
  • Attendance-to-salary auto calculation with shift and OT rules
  • PF, ESI, PT and TDS computation with configurable rates
  • Payslip generation with custom templates
View MegaMind Payroll
Simple 3-step process

How to buy the FL-W-700

Get an accurate quotation, a live demo or a free site survey — with installation, training and pan-India AMC available.

  1. 011

    Request a quote

    Tell us quantity, configuration and site details — we reply within one business day.

  2. 022

    Free site survey

    Our engineers assess your site and recommend the right hardware and software setup.

  3. 033

    Install & AMC

    Certified engineers install, train your team and maintain the system pan-India.

Related Products — FL-W-700

More in Fingerprint Door Locks →

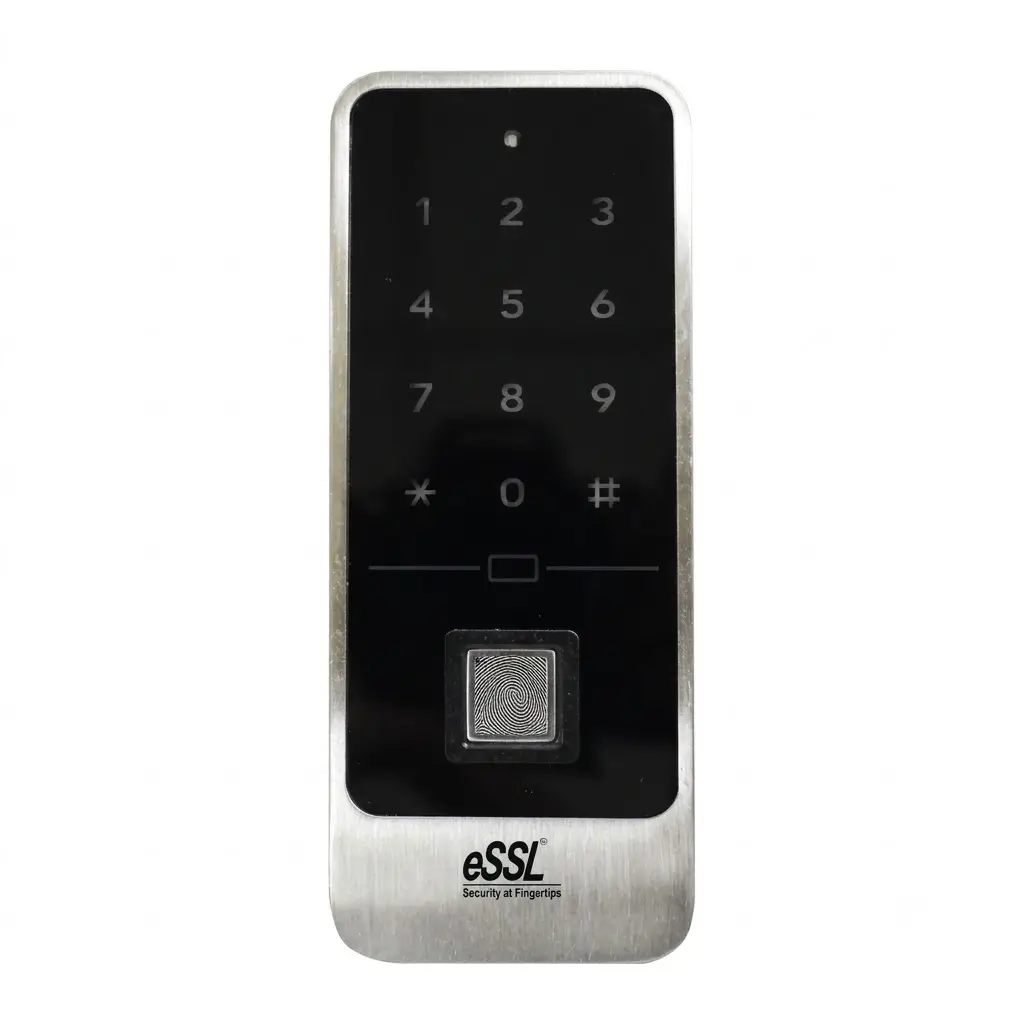

FL-W-600 (FL-W-600)
View FL-W-600

FL-W-600

In Stock

eSSL FL-W-600 is a fingerprint wardrobe/cabinet lock supporting fingerprint, code and card access. eSSL publishes 100 fingerprint capacity, 3 × AA alkaline battery power, zinc-alloy construction, external power backup and security alarms.

  • Fingerprint Capacity100
  • AuthFingerprintCodeCard
  • Standard Connectivity
View Full Specs for FL-W-600
Compare

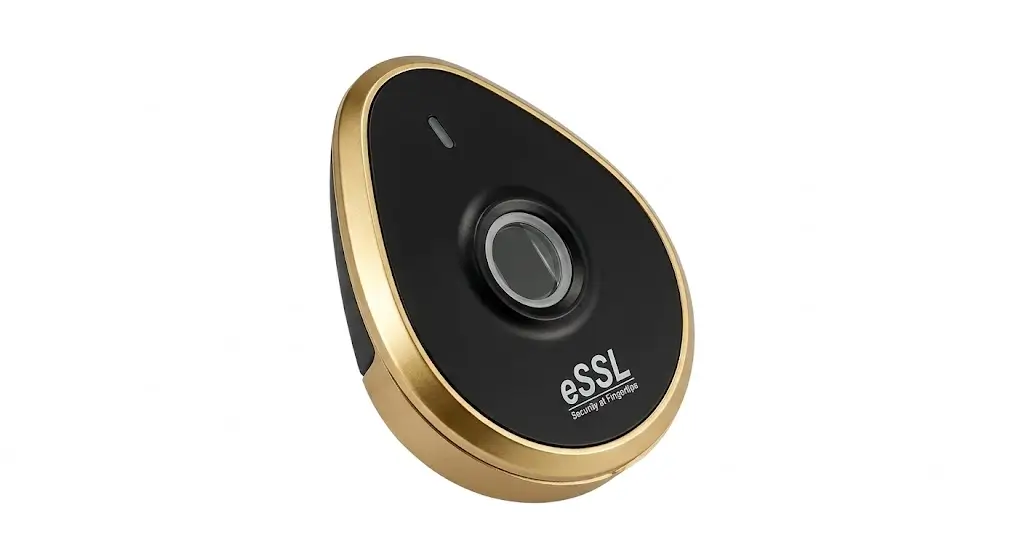

FL-W-800G (FL-W-800G)
View FL-W-800G

FL-W-800G

In Stock

eSSL FL-W-800G is a zinc-alloy wardrobe/cabinet fingerprint lock with 100 fingerprint capacity and 3 master + 5 user cards. It uses three AA alkaline batteries and provides wrong-credential, low-battery and anti-picked alarms.

  • Fingerprint Capacity100
  • Card Capacity3 masters & 5 users
  • AuthFingerprintCard
  • Standard Connectivity
View Full Specs for FL-W-800G
Compare

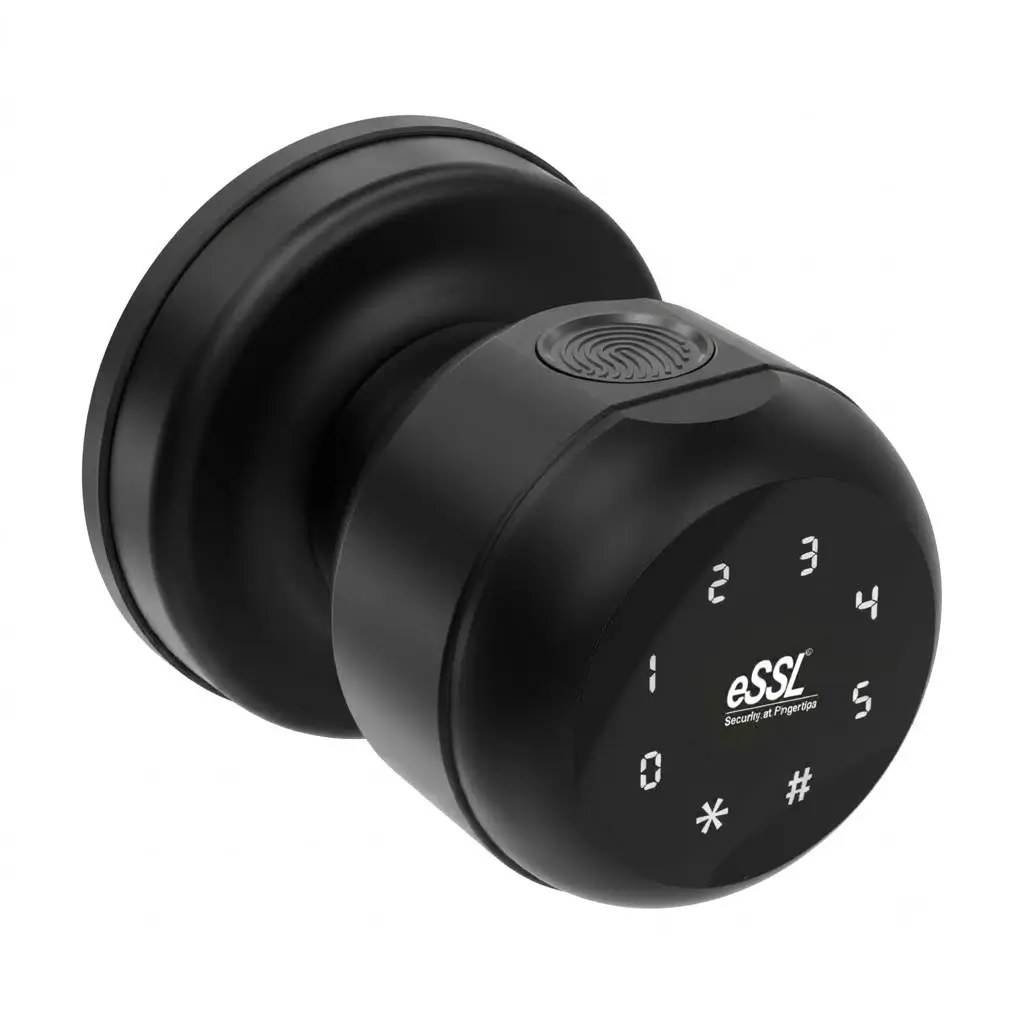

FL600 (FL600)
