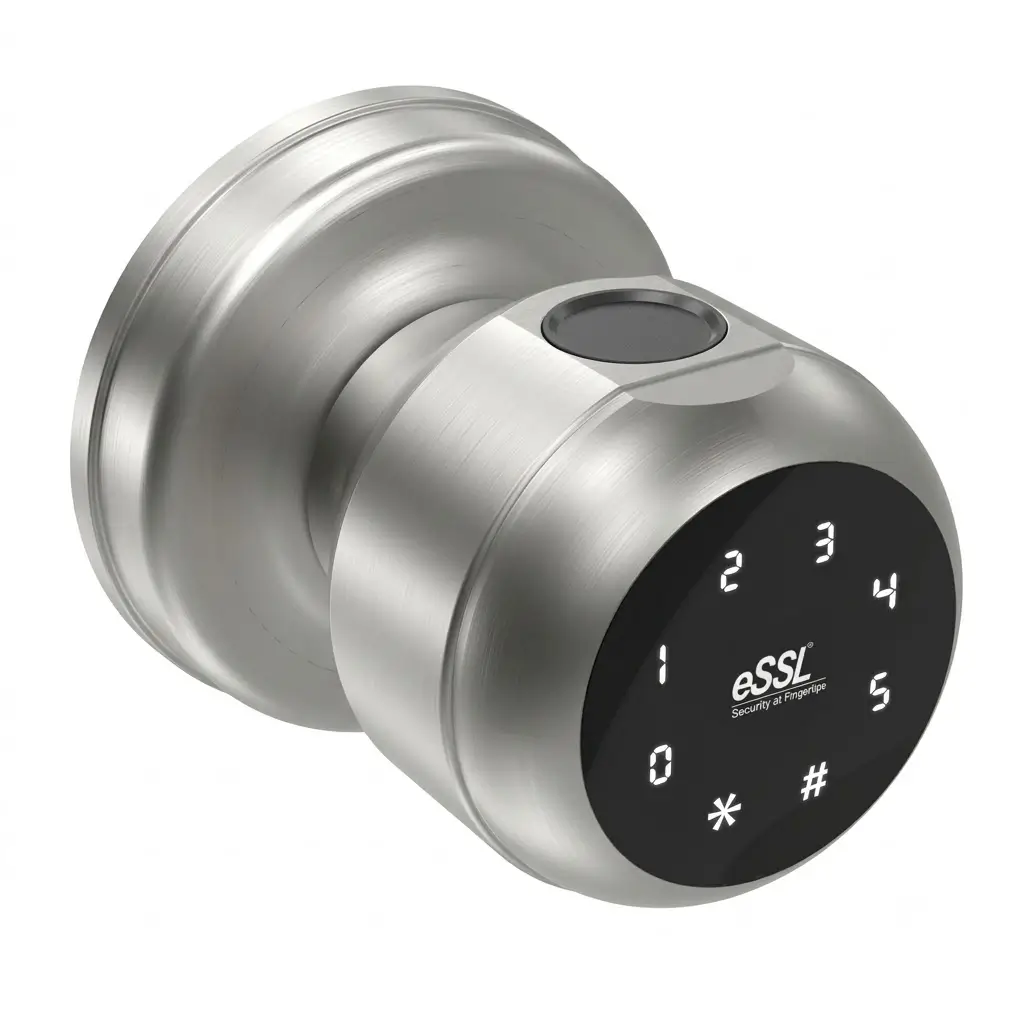

FL600-SS
Model: FL600-SS · SKU: MM-eSSL-FL600-SS
Brand: eSSL · Warranty: 1 Year
The FL600-SS (FL600-SS) is a fingerprint, password fingerprint door locks terminal from eSSL — eSSL FL600-SS is a spherical fingerprint door lock for wooden doors with an adjustable 60–70 mm compatible thickness range. It supports fingerprint, password, manual key and Smart Life/Smart Things Bluetooth app unlocking, with 18 fingerprint users and 20 password users according to the published specification.
- Authentication
- Fingerprint, Password
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Fingerprint Door Locks
- Fingerprint capacity
- 18
- Connectivity
- Bluetooth (Smart Life / Smart Things app) · Type-C temporary/emergency power port (5V2A)
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — FL600-SS
- Spherical fingerprint lock design
- American Standard Single-Tongue Lock compatibility
- Suitable for wooden doors
- Adjustable 60–70 mm thickness
- Fingerprint capacity: 18
- Password capacity: 20
- Unlocking by fingerprint
- Unlocking by password
- Unlocking by manual key
- Smart Life / Smart Things Bluetooth APP unlocking
- Voice guidance
- Low-battery alarm
- Internal turn-button operation
- Type-C emergency power port
- Stainless-steel bolt
- One-piece knob construction
- 5-pin brass cylinder
- M10 motor
- 100,000-cycle life test
- Free-drop test
- Metal Silver finish
Product Overview
The eSSL FL600-SS is designed as a biometric smart door lock for wooden doors using a spherical-lock form factor. The published design supports an American Standard Single-Tongue Lock body and an adjustable 60–70 mm door thickness range.
Access can be provided through multiple methods: fingerprint, password, manual key and Smart Life/Smart Things Bluetooth APP. The published capacity is 18 fingerprints and 20 passwords. A built-in low-battery alarm, Type-C emergency power port and internal turn-button operation provide additional operating and convenience features.
The model is specified in Metal Silver, while eSSL also publishes a separate FL600 model in Black. The FL600-SS specification additionally states a 100,000-cycle life test, M10 motor and free-drop test support.
What Is FL600-SS?
It is a spherical fingerprint door lock listed by eSSL under its Fingerprint Door Lock category.
Software & Integration
Bluetooth unlocking via the Smart Life / Smart Things application is published. Type-C temporary/emergency power (5V2A) and low-battery alarm are specified. Aligns with MegaMind Attendance and MegaMind HRMS deployments.
Applications
Typical deployments for the FL600-SS: - Residential wooden entry doors - Office / internal wooden doors - Controlled wooden-door access points (within stated lock-body and thickness requirements)
Ideal for — FL600-SS
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for FL600-SS (FL600-SS).
Access Methods
| Fingerprint Capacity (templates) | 18 |
|---|---|
| Password Capacity (codes) | 20 |
Power & Installation
| Battery | 4 AAA batteries |
|---|---|
| Door Thickness | 60–70 mm adjustable |
| Material | Not separately published on current product page |
Additional Specifications
| Compatible Lock Body | American Standard Single-Tongue Lock |
|---|---|
| Lock Cylinder | Pin Tumbler Lock Cylinder |
| Power Supply | 4 AAA batteries |
| Temporary/Emergency Power | Type-C temporary power supply, 5V2A |
| Standby Power Consumption | Standby Static Current: ≤90uA |
| Unlocking Methods | Manual Key, Smart Life Smart Things Bluetooth APP, Fingerprint, Password |
| Bolt | Stainless Steel |
| Cylinder | 5-pin brass |
| Type | Spherical fingerprint lock |
| Door Type | Wooden |
| Lock Body Type | American Standard Single-Tongue Lock |
| Voice Guidance | Yes |
| Low Battery Alarm | Yes |
| Cylinder Type | Pin tumbler lock cylinder (5-pin brass) |
| Emergency Power | Type-C temporary power supply, 5V2A |
| Standby Current | ≤90uA |
| Working Current | ≤350mA |
| Motor | M10 Motor |
| Life Test | 100,000 cycles |
| Free Drop Test | Yes |
| Colour | Metal Silver |
| Fingerprint Enabled | Yes |
| Palm Enabled | No — not published |
| Face Enabled | No — not published |
| Password Enabled | Yes |
| Card Enabled | No — not published |
| Manual Key Enabled | Yes |
| Bluetooth App Enabled | Yes — Smart Life / Smart Things app |
| Internal Turn Button | Yes |
| Cylinder Details | 5-pin brass |
| Bolt Material | Stainless steel |
| Knob | One-piece |
| Battery Type | 4 AAA batteries |
| Additional Power | 6V power supply |
| Standby Static Current | ≤90uA |
| Average Working Current | ≤350mA |
| High Low Temperature Test | Class II: 55°C±2°C for 4H; -10°C±3°C for 4H |
| Operating Humidity | Not published on current product page |
How to choose the right Fingerprint Door Locks device
Every fingerprint door locks requirement is different. Before you buy FL600-SS, compare these points — they are the same checks our engineers use when recommending fingerprint door locks attendance and access solutions to Indian businesses.
Size it to your site
- Fingerprint capacity of 18 templates
- Supported methods: fingerprint, password — pick the method your employees will actually use
What to look for in a Fingerprint Door Locks
- Compare unlock methods against your actual workload
- Compare fingerprint capacity (templates) against your actual workload
- Compare password capacity (codes) against your actual workload
- Compare card capacity (cards) against your actual workload
- Compare battery against your actual workload
- Compare power supply against your actual workload
- Compare door thickness against your actual workload
- Compare recognition speed against your actual workload
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — FL600-SS
Industries and use-cases where the FL600-SS is commonly deployed.
- Residential wooden entry doors
- Office / internal wooden doors
- Controlled wooden-door access points (within stated lock-body and thickness requirements)
