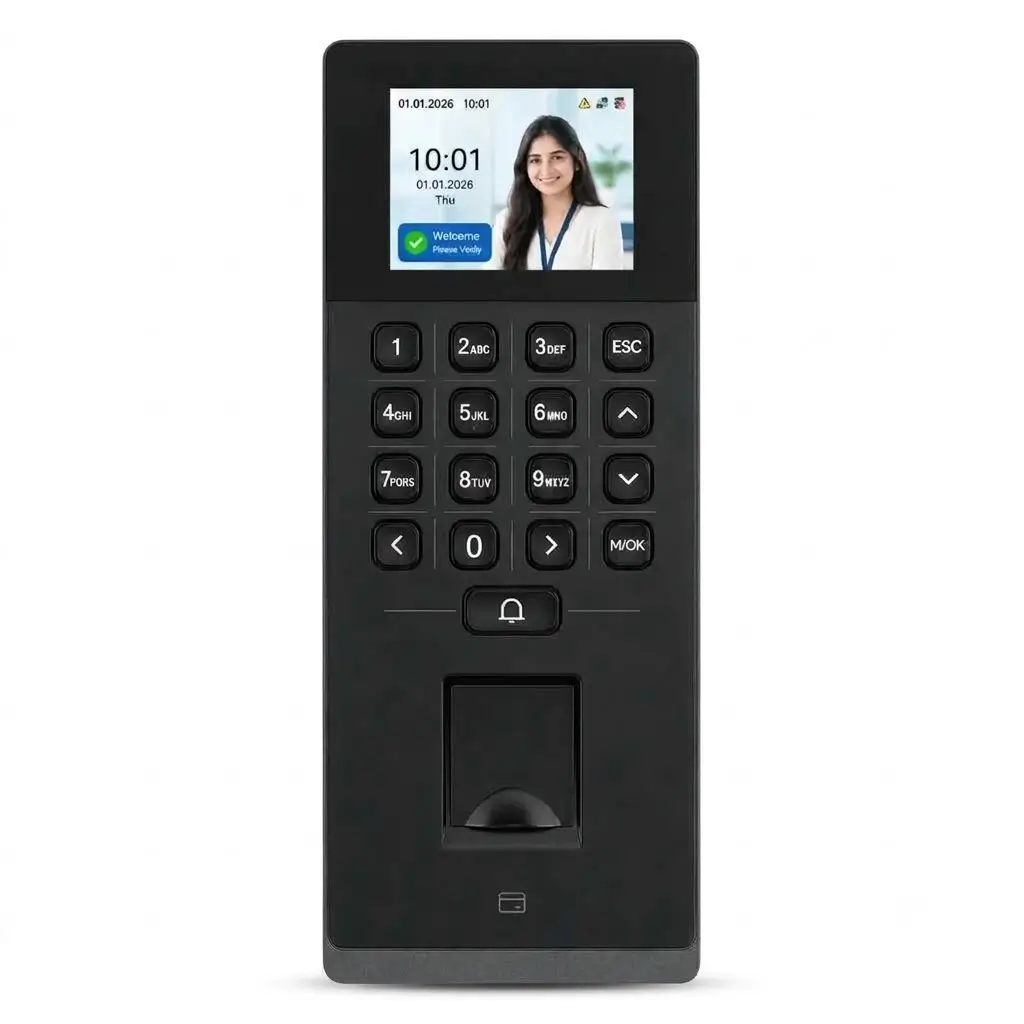

F22+ID+WIFI
Model: F22+ID+WIFI · SKU: MM-eSSL-F22-ID-WIFI
Brand: eSSL · Warranty: 1 Year
The F22+ID+WIFI (F22+ID+WIFI) is a fingerprint, id card fingerprint terminal from eSSL — using a 500 DPI SilkID fingerprint sensor with identification speed below 0.5 second and TCP/IP, USB Host, built-in Wi-Fi, RS485, Wiegand and Push Data.
- Authentication
- Fingerprint, ID Card
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Fingerprint
- Fingerprint capacity
- 3,000
- Card capacity
- 5,000
- Transactions
- 30,000
- Recognition speed
- <0.5 sec
- Connectivity
- Wi-Fi · TCP/IP · USB · Wiegand
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — F22+ID+WIFI
- 3,000 fingerprint capacity
- 5,000 card capacity
- 30,000 transaction capacity
- 500 DPI SilkID sensor, <0.5 sec identification
- 2.8-inch TFT screen, keypad, Green/Red LED
- TCP/IP, USB Host, built-in Wi-Fi, RS485
- Wiegand In & Out
- Push Data
- Electromagnetic/electric lock interface
- Door sensor
- Multiple exit-reader support (FR1200, Push Button, KR500, JS500E, No-Touch, KR503E-RS)
- eTimeTrackLite support
- ebioServer support
Product Overview
The eSSL F22+ID+WIFI is designed for employee time and attendance applications where fingerprint authentication, ID-card support and wireless network connectivity are required.
The terminal supports 3,000 fingerprints, 5,000 cards and 30,000 transaction records. It uses a 500 DPI SilkID fingerprint sensor and provides an identification speed below 0.5 second.
The device includes a 2.8-inch TFT screen, keypad and Green/Red LED indicator. Communication options include TCP/IP, USB Host, built-in Wi-Fi and RS485, with Wiegand In/Out and Push Data also listed.
For door access applications, the specification lists support for electromagnetic/electric locks and door sensors, along with multiple supported exit-reader options including FR1200, Push Button, KR500, JS500E, No-Touch and KR503E-RS.
What Is F22+ID+WIFI?
eSSL F22+ID+WIFI is a fingerprint biometric attendance and access-control terminal with ID-card and built-in Wi-Fi support, for employee attendance where wireless connectivity is required.
Software & Integration
The F22+ID+WIFI supports eTimeTrackLite and ebioServer as published software options. MegaMind Technosoft also configures the device with MegaMind Attendance and MegaMind HRMS for payroll-ready reports.
Applications
Typical deployments for the F22+ID+WIFI: - Employee Time & Attendance - Biometric Attendance with ID-card option - Access Control - Sites without structured LAN cabling (Wi-Fi) - Canteen Management - School Attendance - Production Management - Gym & Club Attendance
Ideal for — F22+ID+WIFI
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for F22+ID+WIFI (F22+ID+WIFI).
General
| Model | F22+ID+WIFI |
|---|---|
| Device Type | Fingerprint + ID card + Wi-Fi time attendance & access control system |
| Display | 2.8" TFT screen |
| Recognition Speed | <0.5 sec |
Biometric
| Fingerprint Capacity (templates) | 3,000 |
|---|---|
| Card Capacity (cards) | 5,000 |
| Transaction Capacity (logs) | 30,000 |
Connectivity
| TCP/IP | Yes |
|---|---|
| Wi-Fi | Yes |
| USB | Yes |
| Wiegand | Yes |
| PoE | No |
Power
| Power | DC 12V, 1.5A |
|---|---|
| Battery Backup | No |
Environment
| Operating Temperature | 0°C to 45°C |
|---|---|
| Sensor | 500 DPI SilkID sensor |
Additional Specifications
| Fingerprint Sensor | 500 DPI SilkID sensor |
|---|---|
| FAR | ≤0.0001% |
| FRR | ≤1% |
| Identification Speed | <0.5 sec |
| Keypad / LED | Yes / Green-Red |
| Communication | TCP/IP, USB Host, built-in Wi-Fi, RS485 |
| Push Data | Yes |
| Access Control Interface | Electromagnetic lock / electric lock, door sensor |
| Power Supply | DC 12V, 1.5A |
| Operating Humidity | 20% to 80% |
| Rs485 | Yes |
| Humidity | 20% to 80% |
| LAN Interface | No |
| Exit Readers | FR1200, Push Button, KR500, JS500E, No-Touch, KR503E-RS |
Access Control Software & Features
| Supported Software | eTimeTrackLite, ebioServer |
|---|
How to choose the right Fingerprint device
Every fingerprint requirement is different. Before you buy F22+ID+WIFI, compare these points — they are the same checks our engineers use when recommending fingerprint attendance and access solutions to Indian businesses.
Size it to your site
- Fingerprint capacity of 3,000 templates
- Card capacity of 5,000 cards
- Transaction capacity of 30,000 logs — enough for daily punches across sites
- Recognition speed of <0.5 sec
- Supported methods: fingerprint, id card — pick the method your employees will actually use
What to look for in a Fingerprint
- Compare device type against your actual workload
- Compare display against your actual workload
- Compare recognition speed against your actual workload
- Compare face capacity (templates) against your actual workload
- Compare fingerprint capacity (templates) against your actual workload
- Compare card capacity (cards) against your actual workload
- Compare transaction capacity (logs) against your actual workload
- Check TCP/IP is built in if your site needs it
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- Wi-Fi connectivity for wireless network deployment
- TCP/IP Ethernet port for robust network communication
- USB drive download for sites without active network cabling
- Wiegand interface for connecting external card readers or door controllers
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — F22+ID+WIFI
Industries and use-cases where the F22+ID+WIFI is commonly deployed.
- Employee Time & Attendance
- Biometric Attendance with ID-card option
- Access Control
- Sites without structured LAN cabling (Wi-Fi)
- Canteen Management
- School Attendance
- Production Management
- Gym & Club Attendance
Documents & Downloads — F22+ID+WIFI
Compatibility — F22+ID+WIFI
- MegaMind Attendance
- MegaMind HRMS
