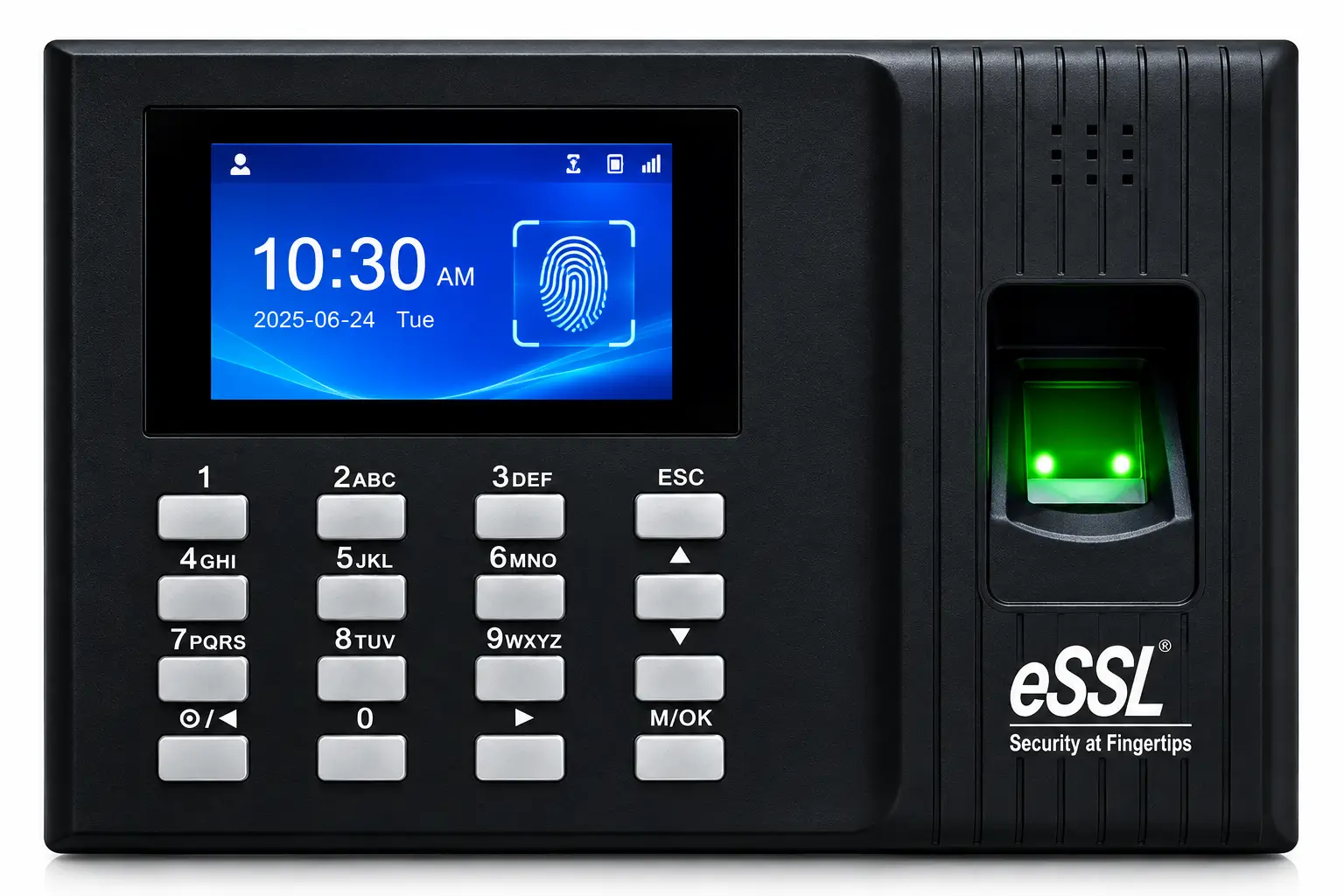

K90 Pro
Model: K90 Pro · SKU: MM-eSSL-K90-PRO
Brand: eSSL · Warranty: 1 Year
The K90 Pro (K90 Pro) is a fingerprint, card fingerprint terminal from eSSL — The eSSL K90 Pro is a fingerprint time and attendance system with access-control functionality. It supports 800 fingerprints, 800 cards and 80,000 transaction records, with a 500 DPI optical fingerprint sensor, ≤1 second identification speed, TCP/IP and USB Host communication, Push Data and built-in battery backup.
- Authentication
- Fingerprint, Card
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Fingerprint
- Fingerprint capacity
- 800
- Card capacity
- 800
- Transactions
- 80,000
- Recognition speed
- ≤1 sec
- Connectivity
- TCP/IP · USB
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — K90 Pro
- 800 fingerprint capacity
- 800 card capacity
- 80,000 transaction storage
- 500 DPI optical fingerprint sensor
- FAR ≤0.0001% and FRR ≤1%
- Identification speed ≤1 sec
- Algorithm Version 10
- Green/Red LED indicator and Mini Speaker
- TCP/IP and USB Host
- Push Data
- Inbuilt battery backup
- Self-Service Query, SSR Recorder, Automatic Status Switch, DST and T9 Input
- 12V access-control relay
- No-Touch and Push Button exit
- eTimeTrackLite support
Product Overview
The eSSL K90 Pro is designed for organizations that require biometric employee attendance with additional access-control functionality.
The device supports 800 fingerprint templates, 800 cards and 80,000 transaction records. It uses a 500 DPI optical fingerprint sensor with an identification speed of ≤1 second and Fingerprint Algorithm Version 10.
The terminal includes a Green/Red LED indicator and Mini Speaker and communicates through TCP/IP and USB Host. Push Data is supported, while an inbuilt battery backup is included as part of the standard feature list.
For access control, eSSL specifies a 12V relay and both No-Touch and Push Button exit options. The standard attendance functions include Self-Service Query, SSR Recorder, Automatic Status Switch, DST and T9 Input, and the device is supported by eTimeTrackLite.
What Is K90 Pro?
eSSL K90 Pro is a fingerprint time and attendance system with access-control functionality, designed for organizations that require biometric employee attendance with additional door-access capability.
Software & Integration
The K90 Pro is supported by eTimeTrackLite. MegaMind Technosoft also configures the device with MegaMind Attendance, MegaMind HRMS and MegaMind Payroll software for payroll-ready reports.
Applications
Typical deployments for the K90 Pro: - Employee Time & Attendance - Biometric Attendance Management - Access Control - Office Attendance - Controlled Door Entry - Canteen Management - School Attendance - Gym & Club Attendance
Ideal for — K90 Pro
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for K90 Pro (K90 Pro).
General
| Model | K90 Pro |
|---|---|
| Device Type | Fingerprint time & attendance with access control system |
| Recognition Speed | ≤1 sec |
Biometric
| Fingerprint Capacity (templates) | 800 |
|---|---|
| Card Capacity (cards) | 800 |
| Transaction Capacity (logs) | 80,000 |
Connectivity
| TCP/IP | Yes |
|---|---|
| Wi-Fi | No |
| USB | Yes |
| Wiegand | No |
| PoE | No |
Power
| Power | 12V DC / 1.5A |
|---|---|
| Battery Backup | Yes |
Environment
| Operating Temperature | 0°C to 45°C |
|---|---|
| Sensor | 500 DPI optical sensor |
Additional Specifications
| Transaction Storage | 80,000 |
|---|---|
| Card Reader | Yes |
| Fingerprint Sensor | 500 DPI optical sensor |
| FAR | ≤0.0001% |
| FRR | ≤1% |
| Algorithm Version | 10 |
| LED Indicator / Speaker | Green / Red · Mini speaker |
| Communication | TCP/IP, USB Host |
| Standard Features | Self-Service Query, SSR Recorder, Automatic Status Switch, DST, T9 Input |
| Access Control Relay | 12V |
| Power Supply | 12V DC / 1.5A |
| Operating Humidity | 20% to 80% RH |
| Relay | 12V |
| Humidity | 20% to 80% RH |
| LAN Interface | No |
| Identification Speed | ≤1 sec |
| Algorithm | Version 10 |
| Exit | No-Touch + Push Button |
| Push Data | Yes |
| Ssr Recorder | Yes |
How to choose the right Fingerprint device
Every fingerprint requirement is different. Before you buy K90 Pro, compare these points — they are the same checks our engineers use when recommending fingerprint attendance and access solutions to Indian businesses.
Size it to your site
- Fingerprint capacity of 800 templates
- Card capacity of 800 cards
- Transaction capacity of 80,000 logs — enough for daily punches across sites
- Recognition speed of ≤1 sec
- Supported methods: fingerprint, card — pick the method your employees will actually use
What to look for in a Fingerprint
- Compare device type against your actual workload
- Compare display against your actual workload
- Compare recognition speed against your actual workload
- Compare face capacity (templates) against your actual workload
- Compare fingerprint capacity (templates) against your actual workload
- Compare card capacity (cards) against your actual workload
- Compare transaction capacity (logs) against your actual workload
- Check TCP/IP is built in if your site needs it
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- TCP/IP Ethernet port for robust network communication
- USB drive download for sites without active network cabling
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — K90 Pro
Industries and use-cases where the K90 Pro is commonly deployed.
- Employee Time & Attendance
- Biometric Attendance Management
- Access Control
- Office Attendance
- Controlled Door Entry
- Canteen Management
- School Attendance
- Gym & Club Attendance
Documents & Downloads — K90 Pro
Compatibility — K90 Pro
- MegaMind Attendance
- MegaMind HRMS
