MA500 (MA500)
MA500 - Primary View
Fingerprint
Biometric Attendance
Standalone Product
In Stock

MA500

Model: MA500  ·  SKU: MM-eSSL-MA500

Brand: eSSL  ·  Warranty: 1 Year

FingerprintOptional Card

The MA500 (MA500) is a fingerprint, optional card fingerprint terminal from eSSL — The eSSL MA500 is an access control terminal with 3,000 fingerprint capacity, 30,000 card capacity and 100,000 transaction logs. It uses an optical fingerprint sensor with protective cover, Finger V10.0 algorithm and supports TCP/IP, RS485, Wiegand output, electric lock, door sensor, alarm and exit button. Its IP65 construction is specified by eSSL as vandal resistant and suitable for outdoor installation.

Authentication
Fingerprint, Optional Card
Brand
eSSL
Product type
Standalone Product
Sold by
MegaMind Technosoft
Category
Fingerprint
Fingerprint capacity
3,000
Card capacity
30,000
Transactions
100,000
Recognition speed
Finger V10.0
Connectivity
TCP/IP · Wiegand
Availability
In Stock
Warranty
1 Year

Key Features — MA500

  • 3,000 fingerprint capacity
  • 30,000 card capacity
  • 100,000 transaction logs
  • Optical fingerprint sensor with protective cover
  • Finger V10.0 algorithm
  • Optional Proximity and MIFARE card readers
  • TCP/IP and RS485
  • Configurable Wiegand output
  • Electric lock, door sensor, alarm and exit button
  • IP65 ingress protection
  • Vandal-resistant construction
  • Outdoor installation suitability as stated by eSSL
  • Master/slave biometric deployment through RS485
  • Anti-passback
  • Tamper, door-sensor and duress alarms
  • Integration with access-control panels
Get Quote
+91-9818442254WhatsAppCompare
Share:WhatsApp

Product Overview

The eSSL MA500 is designed primarily for biometric door access-control applications. It combines fingerprint authentication with optional proximity or MIFARE card-reader functionality and provides multiple physical interfaces for integration with access-control hardware.

The terminal supports 3,000 fingerprints, 30,000 cards and 100,000 transaction logs. It uses an optical fingerprint sensor protected by a cover and the Finger V10.0 algorithm.

Connectivity includes TCP/IP and RS485, while a configurable Wiegand output can be used to connect the terminal with most access-control panel brands, according to eSSL.

The device is specified with IP65 ingress protection and a vandal-resistant construction. eSSL also describes master/slave deployment through RS485, anti-passback support and multiple alarm types including tamper, door-sensor and duress alarms.

What Is MA500?

eSSL MA500 is an access control terminal with fingerprint authentication, designed primarily for biometric door access-control applications with an IP65-rated, vandal-resistant housing for outdoor use.

Software & Integration

The MA500 is an access-control product that connects to most access-control panel brands through its configurable Wiegand output. MegaMind Technosoft supplies and configures it within access-control deployments and pairs it with MegaMind Attendance software.

Applications

Typical deployments for the MA500: - Biometric Door Access Control - Outdoor Access Control (IP65) - Secure Entrance Points - Employee Door Access - Master/Slave entrance-exit authentication - Access-control panel integration - Anti-passback door systems

Verified Datasheet32 specifications • 7 categories

Technical Specifications

Detailed hardware, electrical, network, and operational specifications for MA500 (MA500).

Download PDF Datasheet

General

3 specs
Model
MA500
Device Type
Fingerprint access control terminal
Recognition Speed
Finger V10.0

Biometric

3 specs
Fingerprint Capacity (templates)
3,000
Card Capacity (cards)
30,000
Transaction Capacity (logs)
1,00,000

Connectivity

5 specs
TCP/IP
Yes
Wi-Fi
No
USB
No
Wiegand
Output
PoE
No

Power

2 specs
Power
12V DC / 3A
Battery Backup
No

Environment

2 specs
Operating Temperature
0°C to 45°C
Sensor
Optical sensor with protective cover

Additional Specifications

16 specs
Fingerprint Sensor
Optical sensor with protective cover
Card Reader
Optional Proximity / MIFARE
Communication
TCP/IP, RS485
Access Control Interface
Electric lock, door sensor, alarm, exit button
Master/Slave RS485
Yes
Alarm Types
Tamper, door sensor, duress
Power Supply
12V DC / 3A
Operating Humidity
20% to 80% RH
Ingress Protection
IP65
Rs485
Yes
Humidity
20% to 80% RH
Protection
IP65
LAN Interface
No
Algorithm
Finger V10.0
Vandal Resistant
Yes
Optional Cards
Proximity / MIFARE

Access Control Software & Features

1 spec
Anti-Passback
Yes

How to choose the right Fingerprint device

Every fingerprint requirement is different. Before you buy MA500, compare these points — they are the same checks our engineers use when recommending fingerprint attendance and access solutions to Indian businesses.

Size it to your site

  • Fingerprint capacity of 3,000 templates
  • Card capacity of 30,000 cards
  • Transaction capacity of 100,000 logs — enough for daily punches across sites
  • Recognition speed of Finger V10.0
  • Supported methods: fingerprint, optional card — pick the method your employees will actually use

What to look for in a Fingerprint

  • Compare device type against your actual workload
  • Compare display against your actual workload
  • Compare recognition speed against your actual workload
  • Compare face capacity (templates) against your actual workload
  • Compare fingerprint capacity (templates) against your actual workload
  • Compare card capacity (cards) against your actual workload
  • Compare transaction capacity (logs) against your actual workload
  • Check TCP/IP is built in if your site needs it

Service, warranty & software

  • Warranty: 1 Year — confirm claim process and turnaround
  • Works with MegaMind Attendance software for shifts, payroll export and reports
  • Pan-India installation, training and AMC support from certified engineers
  • Availability: In Stock — confirm lead time with your quote

Connectivity & integration

  • TCP/IP Ethernet port for robust network communication
  • Wiegand interface for connecting external card readers or door controllers
  • API and SDK support for custom HRMS, ERP and payroll integration

Applications — MA500

Industries and use-cases where the MA500 is commonly deployed.

  • Biometric Door Access Control
  • Outdoor Access Control (IP65)
  • Secure Entrance Points
  • Employee Door Access
  • Master/Slave entrance-exit authentication
  • Access-control panel integration
  • Anti-passback door systems

Documents & Downloads — MA500

Compatibility — MA500

  • MegaMind Attendance
  • MegaMind HRMS

Frequently Asked Questions — MA500

Software & Integration — MA500

Software shown here is explicitly configured with this model — nothing is auto-claimed.

Explore all software →
Cloud & On-Prem

MegaMind Attendance

Time and attendance management system with shift rostering, OT rules, live dashboards, employee self-service and payroll export. Works with face, fingerprint, card and Aadhaar biometric devices.

MegaMind Attendance is the complete time and attendance management system for Indian organisations. It captures punches from face, fingerprint, RFID and Aadhaar biometric terminals, applies shift and overtime rules automatically, and exports clean payroll-ready records with a full audit trail.

  • Eliminates manual registers, buddy punching and proxy attendance with biometric verification
  • Automates shift, late, early and overtime calculations for the whole workforce, including double-shift and weekly-off rules
  • Shift and roster management with rotating shift support
  • Late, early and OT calculations with configurable policies
  • Multiple punch policies (1 to 4 punches per day)
View MegaMind Attendance
Cloud & On-Prem

MegaMind HRMS

Best HRMS software in India for HR, attendance, leave and payroll — PF/ESI/TDS compliance, ESS portal, cloud or on-premise. Built for retail, manufacturing, healthcare & government.

MegaMind HRMS unifies HR, attendance and payroll in one Indian-compliant platform — biometric attendance, leave, employee self-service, PF/ESI/TDS payroll, cloud or on-premise.

  • Single platform for HR, attendance, leave, payroll and ESS — no more tool-hopping
  • Biometric attendance feeds payroll automatically from face, fingerprint and Aadhaar devices
  • Employee database, documents and onboarding workflow
  • Biometric attendance integration with shift and OT rules
  • Leave management with balances, encashment and approvals
View MegaMind HRMS
Cloud & On-Prem

MegaMind Payroll

Payroll software in India with PF, ESI, TDS and professional tax — computes salaries from biometric attendance, generates payslips, challans, Form 16 and bank files.

MegaMind Payroll computes salaries directly from biometric attendance and stays compliant — PF, ESI, professional tax and TDS handled automatically, with payslips, challans, Form 16 and bank files.

  • Salaries computed directly from biometric attendance — no manual entry, no disputes
  • PF, ESI, professional tax and TDS handled with current statutory rates
  • Attendance-to-salary auto calculation with shift and OT rules
  • PF, ESI, PT and TDS computation with configurable rates
  • Payslip generation with custom templates
View MegaMind Payroll
Simple 3-step process

How to buy the MA500

Get an accurate quotation, a live demo or a free site survey — with installation, training and pan-India AMC available.

  1. 011

    Request a quote

    Tell us quantity, configuration and site details — we reply within one business day.

  2. 022

    Free site survey

    Our engineers assess your site and recommend the right hardware and software setup.

  3. 033

    Install & AMC

    Certified engineers install, train your team and maintain the system pan-India.

Related Products — MA500

More in Fingerprint →

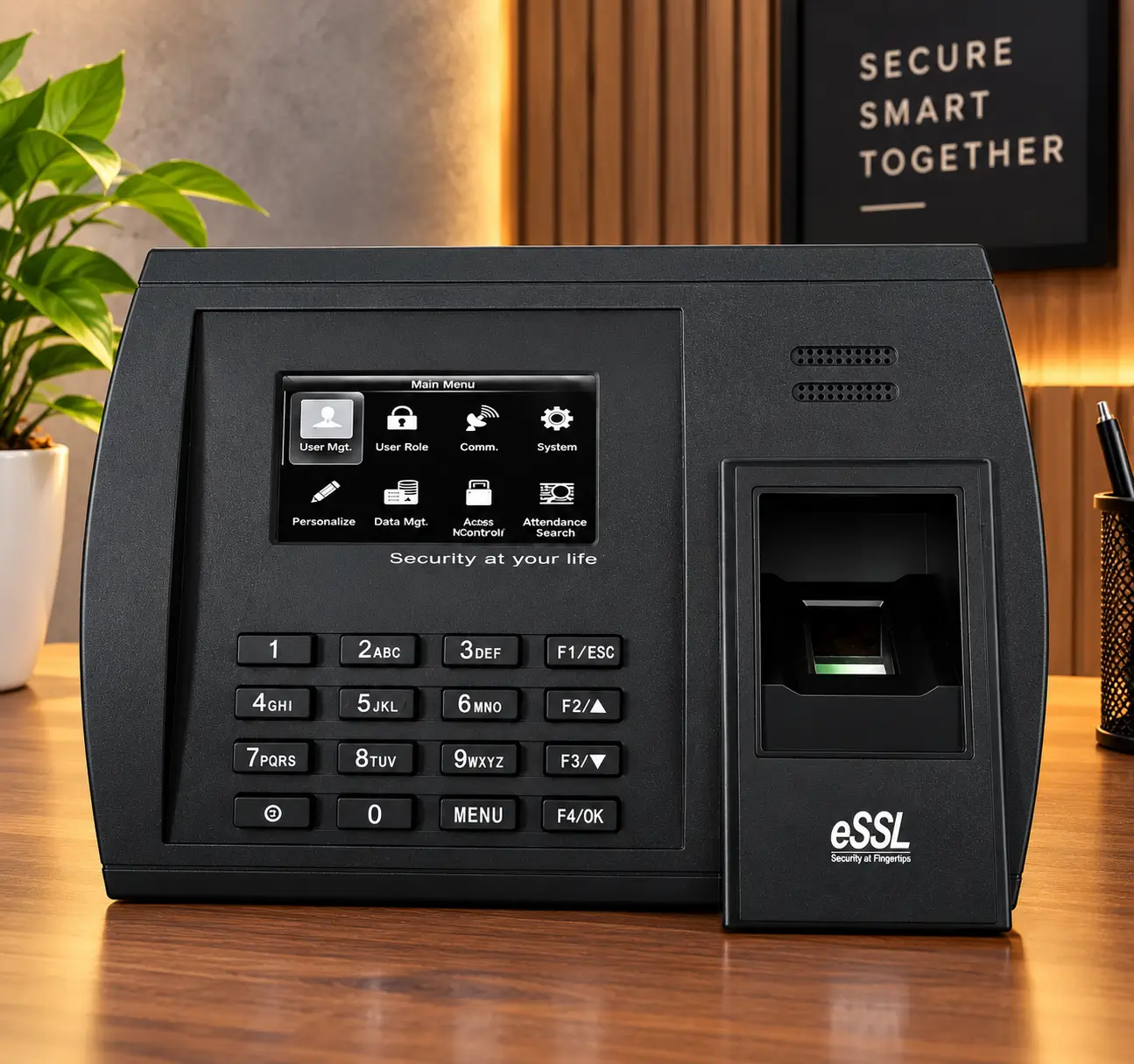

U460 (U460)
