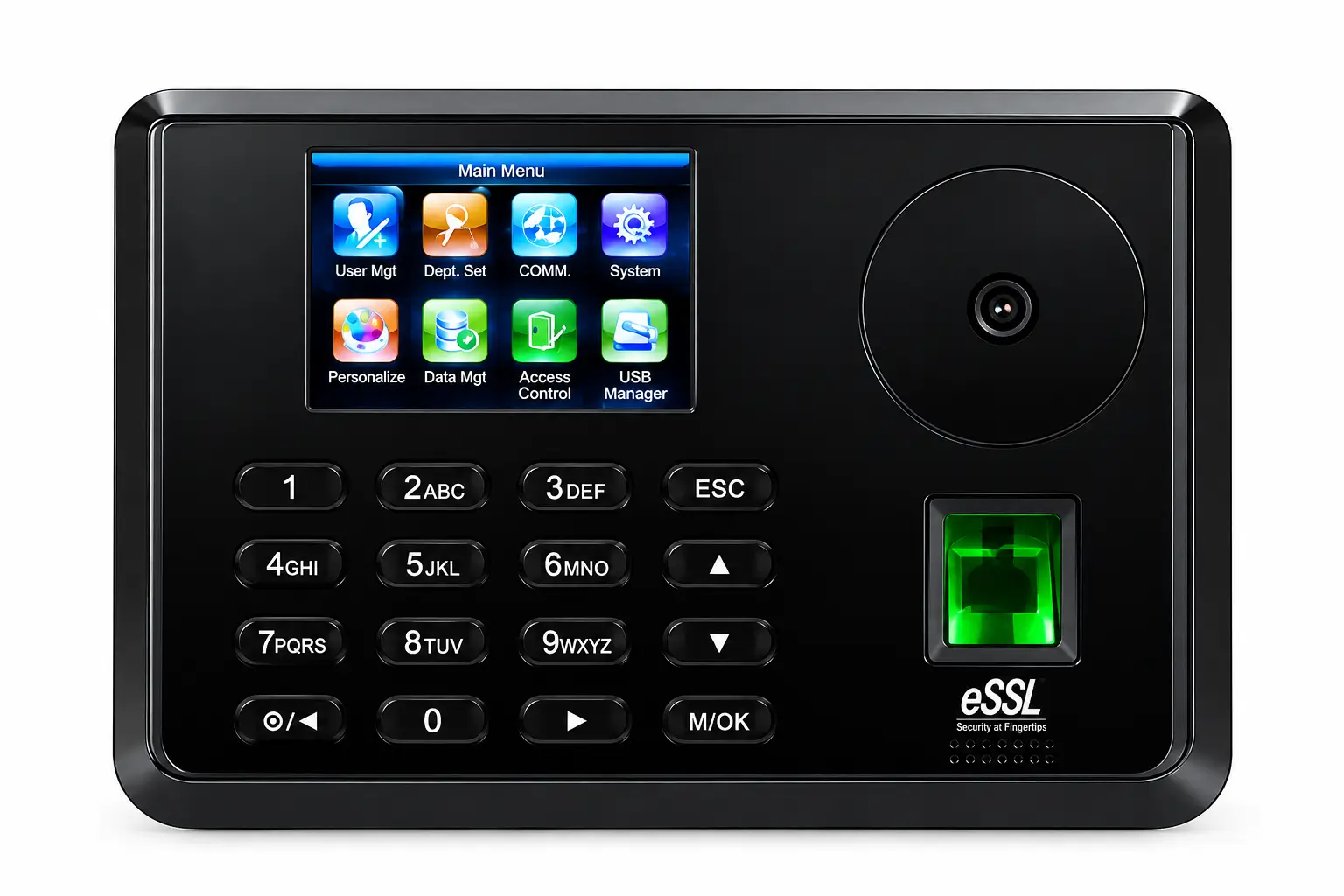

P160
Model: P160 · SKU: MM-eSSL-P160
Brand: eSSL · Warranty: 1 Year
The P160 (P160) is a palm, fingerprint, card fingerprint terminal from eSSL — The eSSL P160 is a palm-recognition multi-biometric time attendance and access control system supporting 600 palm templates, 3,000 fingerprints, 10,000 cards and 100,000 attendance logs. It provides TCP/IP and USB Host communication, ≤1 second verification speed and optional access-control, PoE, 3G, battery, ADMS, RS485 and Wiegand functions.
- Authentication
- Palm, Fingerprint, Card
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Fingerprint
- Fingerprint capacity
- 3,000
- Card capacity
- 10,000
- Transactions
- 100,000
- Recognition speed
- ≤1 sec
- Connectivity
- TCP/IP · USB · Wiegand · PoE
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — P160
- Palm recognition with 600-palm capacity
- Fingerprint recognition with 3,000-fingerprint capacity
- Card authentication with 10,000-card capacity
- 100,000 log capacity
- 2.8-inch TFT colour display
- TCP/IP and USB Host
- ≤1 sec verification speed
- Automatic Status Switch, Self-Service Query, Work Code, T9 Input
- 9-digit User ID, DST, Scheduled Bell, SMS
- RS232 printer support
- Two access-control module configurations (door lock, exit button, alarm, 12V out, AUX in, door sensor, RS485, Wiegand In/Out)
- Optional ID Card, MIFARE Card, PoE, 3G, battery module and ADMS
Product Overview
The eSSL P160 combines multiple biometric and credential technologies into one time attendance and access-control terminal. Its published storage includes 600 palm records, 3,000 fingerprints, 10,000 cards and 100,000 logs.
The device uses a 2.8-inch TFT colour display and provides TCP/IP and USB Host communication. Verification speed is specified as ≤1 second.
The P160 has two published access-control module configurations. The listed interfaces include exit button, door lock, alarm, 12V output and AUX input, while the second module additionally includes door sensor, RS485 and Wiegand input/output. Optional features include ID Card, MIFARE Card, PoE, 3G, battery module and ADMS.
Standard attendance functions include Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9-digit User ID, DST, Scheduled Bell, SMS and RS232 printer support.
What Is P160?
eSSL P160 is a palm-recognition multi-biometric time attendance and access-control system. It combines palm, fingerprint and card credentials in one terminal for employee attendance and controlled entry.
Software & Integration
The P160 works with eTimeTrackLite and web device management, with optional ADMS and third-party Payroll/HRMS/ERP integration. MegaMind Technosoft configures the device with MegaMind Attendance, MegaMind HRMS and MegaMind Payroll.
Applications
Typical deployments for the P160: - Palm-based time & attendance - Biometric Attendance Management - Access Control - Corporate workforce management - Multi-shift attendance sites - Canteen Management - School Attendance - Production Management
Ideal for — P160
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for P160 (P160).
General
| Model | P160 |
|---|---|
| Device Type | Palm recognition multi-biometric time attendance & access control system |
| Display | 2.8" TFT colour display |
| Recognition Speed | ≤1 sec |
Biometric
| Fingerprint Capacity (templates) | 3,000 |
|---|---|
| Card Capacity (cards) | 10,000 |
| Transaction Capacity (logs) | 1,00,000 |
Connectivity
| TCP/IP | Yes |
|---|---|
| Wi-Fi | No |
| USB | Yes |
| Wiegand | Yes |
| PoE | Yes |
Power
| Power | 12V / 1.5A |
|---|---|
| Battery Backup | No |
Environment
| Operating Temperature | 0°C to 45°C |
|---|
Additional Specifications
| Official Category | Palm |
|---|---|
| Product Type | Palm Recognition Multi-Biometric Time Attendance & Access Control System |
| Logs Capacity | 100,000 |
| Communication | TCP/IP, USB Host |
| Optional Card | ID Card, MIFARE Card |
| Optional Connectivity | PoE, 3G |
| Optional Power | Battery module |
| Optional Software/Protocol | ADMS |
| Power Supply | 12V / 1.5A |
| Operating Humidity | 20% to 80% RH |
| Palm Capacity | 600 |
| Rs485 | Yes |
| Humidity | 20% to 80% RH |
| LAN Interface | No |
| Verification Speed | ≤1 sec |
| Standard Functions | Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9-digit User ID, DST, Scheduled Bell, SMS, RS232 printer |
| Ac Module1 | Exit button, door lock, alarm, 12V OUT, AUX IN |
| Ac Module2 | Exit button, door lock, alarm, 12V OUT, AUX IN, door sensor, RS485, Wiegand IN/OUT |
How to choose the right Fingerprint device
Every fingerprint requirement is different. Before you buy P160, compare these points — they are the same checks our engineers use when recommending fingerprint attendance and access solutions to Indian businesses.
Size it to your site
- Fingerprint capacity of 3,000 templates
- Card capacity of 10,000 cards
- Transaction capacity of 100,000 logs — enough for daily punches across sites
- Recognition speed of ≤1 sec
- Supported methods: palm, fingerprint, card — pick the method your employees will actually use
What to look for in a Fingerprint
- Compare device type against your actual workload
- Compare display against your actual workload
- Compare recognition speed against your actual workload
- Compare face capacity (templates) against your actual workload
- Compare fingerprint capacity (templates) against your actual workload
- Compare card capacity (cards) against your actual workload
- Compare transaction capacity (logs) against your actual workload
- Check TCP/IP is built in if your site needs it
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- TCP/IP Ethernet port for robust network communication
- USB drive download for sites without active network cabling
- Wiegand interface for connecting external card readers or door controllers
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — P160
Industries and use-cases where the P160 is commonly deployed.
- Palm-based time & attendance
- Biometric Attendance Management
- Access Control
- Corporate workforce management
- Multi-shift attendance sites
- Canteen Management
- School Attendance
- Production Management
Documents & Downloads — P160
Compatibility — P160
- MegaMind Attendance
- MegaMind HRMS
