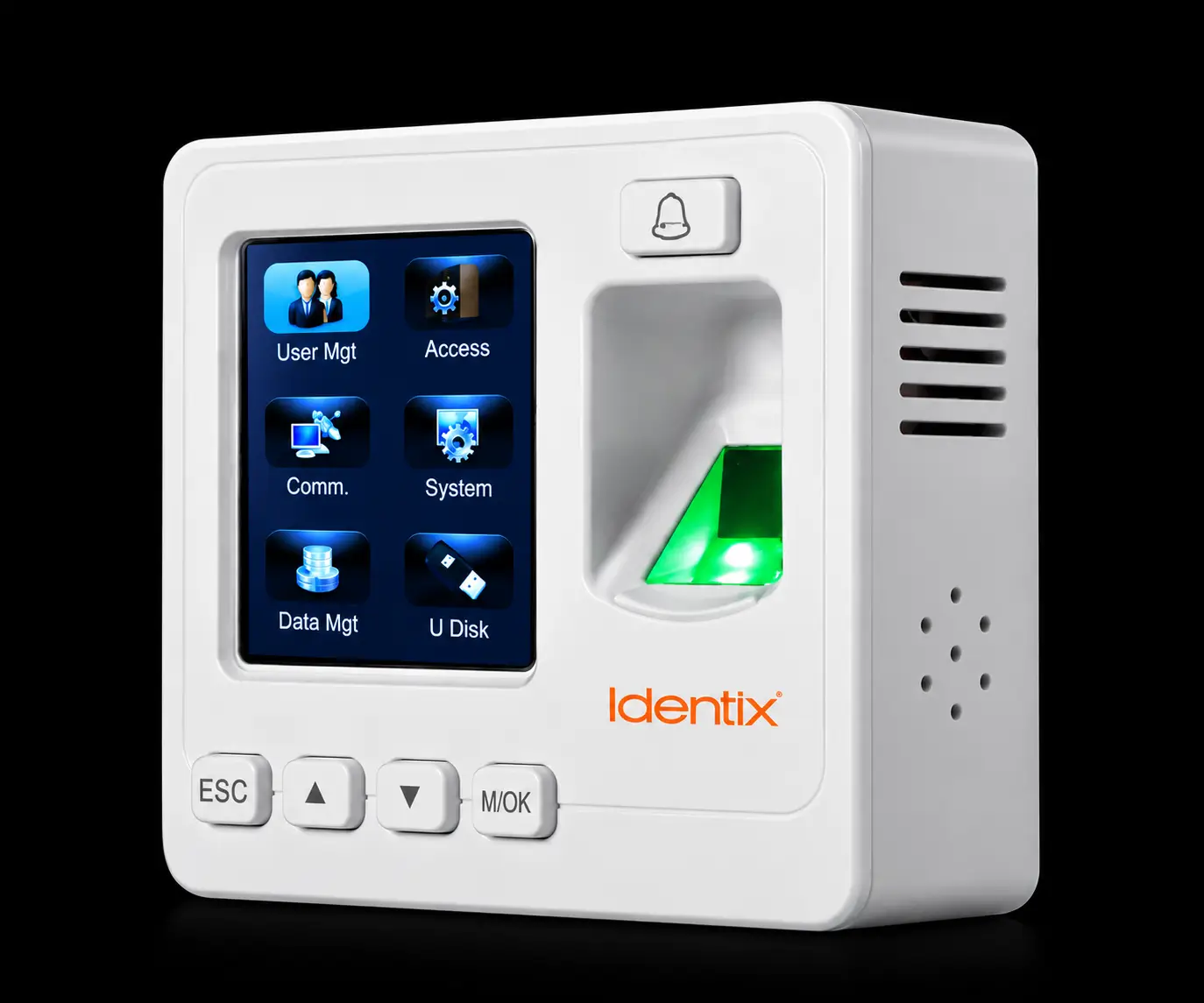

SF100
Model: SF100 · SKU: MM-eSSL-SF100
Brand: eSSL · Warranty: 1 Year
The SF100 (SF100) is a fingerprint, card fingerprint terminal from eSSL — eSSL SF100 is an IP-based fingerprint time attendance and access control system designed for employee attendance and controlled-entry applications. It supports 1,500 fingerprints, 5,000 cards and 80,000 attendance logs, with a 500 DPI optical fingerprint sensor, TCP/IP, RS485 and USB Host communication, Wiegand input/output and standard access-control interfaces for electric lock, door sensor, alarm, exit button, doorbell and KR500E exit-reader integration.
- Authentication
- Fingerprint, Card
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Fingerprint
- Fingerprint capacity
- 1,500
- Card capacity
- 5,000
- Transactions
- 80,000
- Recognition speed
- VX10.0 algorithm
- Connectivity
- TCP/IP · USB · Wiegand
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — SF100
- 1,500 fingerprint capacity
- 5,000 card capacity
- 80,000 transaction logs
- 500 DPI optical fingerprint sensor
- 2.4-inch TFT display
- TCP/IP, RS485 and USB Host communication
- Wiegand input and output
- KR500E exit-reader support
- Electric lock, door sensor, alarm, exit button and doorbell
- Voice prompt
- Up to 15 multi-verification methods
- Time-zone and holiday management
- Access-control groups and unlock combinations
- Duress alarm and tamper-proof switch
- Compact 86 × 86 mm socket installation
Product Overview
The eSSL SF100 is a compact biometric attendance and access-control terminal designed for organizations that need fingerprint-based employee attendance with network connectivity.
The device supports up to 1,500 fingerprint records, 5,000 card records and 80,000 transaction logs. It uses a 500 DPI optical fingerprint sensor and includes a 2.4-inch TFT display. Communication is provided through TCP/IP, RS485 and USB Host.
For access-control deployments, the SF100 provides support for an electric lock, door sensor, alarm, exit button and doorbell, along with KR500E exit-reader support. Wiegand input and output are also specified.
The product is designed with a compact form factor intended for 86 × 86 mm socket installation, making it useful where a small wall-mounted biometric terminal is required. eSSL also specifies voice prompts, multiple verification methods, time-zone and holiday management, access-control groups, unlock combinations, duress alarm and tamper protection.
What Is SF100?
eSSL SF100 is an IP-based fingerprint time attendance and access-control system. It is a compact, network-connected biometric terminal designed for employee attendance and controlled doorway entry.
Software & Integration
The SF100 integrates with eTimeTrackLite and web-based device management / ePush, with third-party Payroll/HRMS/ERP support. MegaMind Technosoft also configures the device with MegaMind Attendance and MegaMind HRMS software.
Applications
Typical deployments for the SF100: - Employee Time & Attendance - Biometric Attendance Management - Access Control - Workforce Attendance - Office Attendance - Commercial Workplace Access - Controlled Door Entry - Small-Space Biometric Installation
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for SF100 (SF100).
General
| Model | SF100 |
|---|---|
| Device Type | IP-based fingerprint time attendance & access control system |
| Display | 2.4-inch TFT |
| Recognition Speed | VX10.0 algorithm |
Biometric
| Fingerprint Capacity (templates) | 1,500 |
|---|---|
| Card Capacity (cards) | 5,000 |
| Transaction Capacity (logs) | 80,000 |
Connectivity
| TCP/IP | Yes |
|---|---|
| Wi-Fi | No |
| USB | Yes |
| Wiegand | Yes |
| PoE | No |
Power
| Power | DC 12V / 3A |
|---|---|
| Battery Backup | No |
Environment
| Operating Temperature | 0°C to 45°C |
|---|---|
| Sensor | 500 DPI optical sensor |
Additional Specifications
| Fingerprint Sensor | 500 DPI optical sensor |
|---|---|
| Communication | TCP/IP, RS485, USB Host |
| Electric Lock | Supported |
| Door Sensor | Supported |
| Alarm | Supported |
| Exit Button | Supported |
| Door Bell | Supported |
| Voice Prompt | Supported |
| Multi-Verification | Up to 15 methods |
| Access Control | Groups, unlock combinations, duress alarm, tamper-proof switch, multiple alarm outputs |
| Operating Humidity | 20% to 80% |
| Rs485 | Yes |
| Humidity | 20% to 80% |
| Exit Reader | KR500E |
| LAN Interface | No |
| Installation | 86 × 86 mm socket installation |
| Algorithm | VX10.0 |
How to choose the right Fingerprint device
Every fingerprint requirement is different. Before you buy SF100, compare these points — they are the same checks our engineers use when recommending fingerprint attendance and access solutions to Indian businesses.
Size it to your site
- Fingerprint capacity of 1,500 templates
- Card capacity of 5,000 cards
- Transaction capacity of 80,000 logs — enough for daily punches across sites
- Recognition speed of VX10.0 algorithm
- Supported methods: fingerprint, card — pick the method your employees will actually use
What to look for in a Fingerprint
- Compare device type against your actual workload
- Compare display against your actual workload
- Compare recognition speed against your actual workload
- Compare face capacity (templates) against your actual workload
- Compare fingerprint capacity (templates) against your actual workload
- Compare card capacity (cards) against your actual workload
- Compare transaction capacity (logs) against your actual workload
- Check TCP/IP is built in if your site needs it
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- TCP/IP Ethernet port for robust network communication
- USB drive download for sites without active network cabling
- Wiegand interface for connecting external card readers or door controllers
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — SF100
Industries and use-cases where the SF100 is commonly deployed.
- Employee Time & Attendance
- Biometric Attendance Management
- Access Control
- Workforce Attendance
- Office Attendance
- Commercial Workplace Access
- Controlled Door Entry
- Small-Space Biometric Installation
Documents & Downloads — SF100
Compatibility — SF100
- MegaMind Attendance
- MegaMind HRMS
