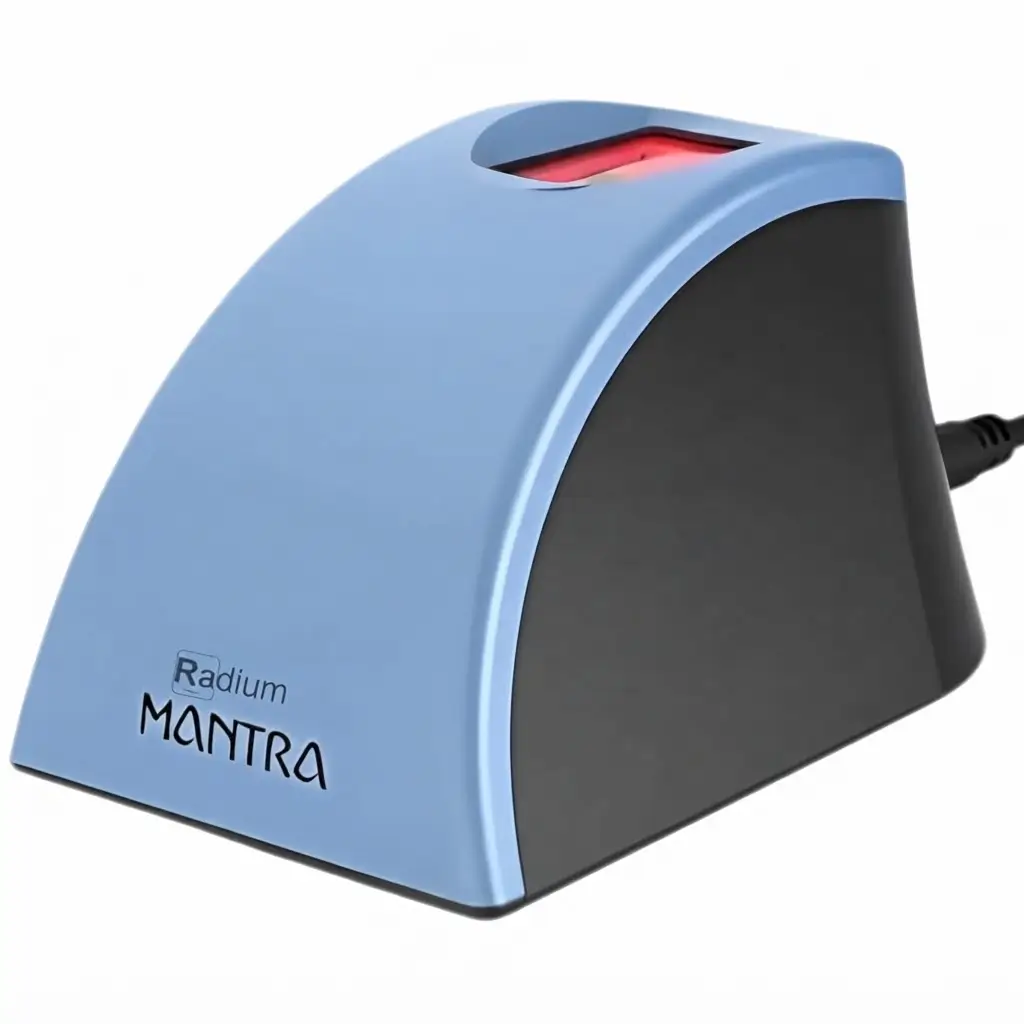

MFS100 Optical Fingerprint Scanner
Model: MFS100 · SKU: MM-MANTRA-MFS100
Brand: Mantra · Warranty: 1 Year Manufacturer Warranty
The MFS100 Optical Fingerprint Scanner is a fingerprint fingerprint terminal from Mantra — India's benchmark STQC-certified (L0) optical fingerprint scanner with 500 DPI scratch-resistant sensor, fast USB 2.0 connectivity and multi-platform driver support for banking, eKYC, and citizen welfare schemes.
- Authentication
- Fingerprint
- Brand
- Mantra
- Manufacturer
- Mantra Softech India Pvt Ltd
- Sold by
- MegaMind Technosoft
- Category
- Fingerprint
- Fingerprint capacity
- 1
- Connectivity
- USB · USB · USB 2.0
- Availability
- In Stock
- Warranty
- 1 Year Manufacturer Warranty
Key Features — MFS100
- STQC-certified optical fingerprint scanner with 500 DPI resolution
- Scratch-resistant sensor surface designed for heavy public usage
- High-speed auto-capture engine (< 1 second acquisition time)
- Reliable capture across difficult, dry, moist, or aged fingerprints
- Compliant with ISO 19794-2, ISO 19794-4, ANSI-378 and WSQ formats
- USB 2.0 powered (low current consumption) — zero external adapter needed
- Full Android OTG compatibility for mobile Banking Correspondent (BC) apps
- Extensive software compatibility with CSC, AEPS, Ayushman Bharat & Jeevan Pramaan
- Rugged, compact desktop form factor suitable for counter and field setups
- Backed by MegaMind Technosoft pan-India warranty and technical support
Product Overview
The Mantra MFS100 is India's benchmark STQC-certified optical fingerprint scanner developed by Mantra Softech. Renowned for its durability and high-sensitivity optical sensor, the MFS100 enables fast, friction-free identity verification across AEPS, CSC, civil distribution and corporate attendance systems.
Technical Highlights
Key technical specifications of the Mantra MFS100: - Sensor Type: Optical Scratch-Resistant Sensor - Resolution: 500 DPI / 256 Gray Level - Platen Surface: 16 mm × 18 mm (Hard Optical Glass) - Acquisition Time: < 1 Second Auto Capture - Standards: ISO 19794-2, ISO 19794-4, ANSI 378, WSQ - Certification: STQC Certified (L0), RoHS, CE, FCC, BIS - Connectivity: USB 2.0 High Speed (Bus Powered, 5V, ≤100 mA) - Operating Systems: Windows 7/8/10/11, Linux, Android OTG - Durability: Rugged desktop housing with IP54 sensor platen protection
Ideal for — MFS100
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for MFS100 Optical Fingerprint Scanner.
Biometric
| Fingerprint Capacity (templates) | 1 |
|---|
Connectivity
| TCP/IP | No |
|---|---|
| Wi-Fi | No |
| USB | Yes |
| Wiegand | No |
| PoE | No |
Power
| Power | 5V DC via USB (≤ 100 mA) |
|---|---|
| Battery Backup | No |
Environment
| Operating Temperature | 0°C to 50°C |
|---|---|
| Sensor | Optical Scratch-Free Sensor (RED LED) |
Additional Specifications
| Resolution | 500 DPI (256 Gray Level) |
|---|---|
| Platen Size | 16 mm × 18 mm |
| Sensing Area | 14 mm × 16.5 mm |
| Image Size | 280 × 360 Pixels |
| Acquisition Time | < 1 Second |
| Capture Mode | Auto finger detection & automatic capture |
| Interface | USB 2.0 High Speed |
| Operating Voltage | 5V ± 5% (USB Bus Powered) |
| Operating Current | ≤ 100 mA (Standby ≤ 40 mA) |
| Operating Humidity | < 90% RH (Non-condensing) |
| Weight | 140 g |
| Standards | ISO 19794-2, ISO 19794-4, ANSI 378, WSQ |
| Safety Certifications | STQC Certified (L0), CE, FCC, RoHS, BIS |
| Os Support | Windows 7 / 8 / 10 / 11, Linux, Android (OTG) |
| LAN Interface | No |
| Aadhaar | Yes |
| Iris | No |
How to choose the right Fingerprint device
Every fingerprint requirement is different. Before you buy MFS100, compare these points — they are the same checks our engineers use when recommending fingerprint attendance and access solutions to Indian businesses.
Size it to your site
- Fingerprint capacity of 1 templates
- Supported methods: fingerprint — pick the method your employees will actually use
What to look for in a Fingerprint
- Compare device type against your actual workload
- Compare display against your actual workload
- Compare recognition speed against your actual workload
- Compare face capacity (templates) against your actual workload
- Compare fingerprint capacity (templates) against your actual workload
- Compare card capacity (cards) against your actual workload
- Compare transaction capacity (logs) against your actual workload
- Check TCP/IP is built in if your site needs it
Service, warranty & software
- Warranty: 1 Year Manufacturer Warranty — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- USB drive download for sites without active network cabling
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — MFS100
Industries and use-cases where the MFS100 Optical Fingerprint Scanner is commonly deployed.
- Aadhaar Enabled Payment System (AEPS) & micro-ATM banking
- Common Service Centers (CSC) & Digital India citizen services
- Ayushman Bharat & national health card verification
- Jeevan Pramaan digital life certificate generation for pensioners
- Public Distribution System (PDS) ration card verification
- Enterprise employee attendance & access control software integration
Documents & Downloads — MFS100
Compatibility — MFS100
- Windows 11
- Windows 10
- Windows 7/8
- Linux
- Android OTG
