FB-E-2000 Series
Model: FB-E-2000 Series · SKU: MM-eSSL-FB-E-2000
Brand: eSSL · Warranty: 1 Year
The FB-E-2000 Series (FB-E-2000 Series) is a rfid card, fingerprint, face, vein flap barriers terminal from eSSL — eSSL FB-E-2000 Series is a retracting flap barrier with 550 mm lane width, SUS304 stainless-steel cabinet and lid, transparent acrylic barrier material and LED indication. It supports RFID, fingerprint, face and vein-reader passage modes, with published rates of 35, 25, 11 and 23 persons/minute respectively, along with emergency mode and 3-million-cycle MCBF.
- Authentication
- RFID Card, Fingerprint, Face, Vein
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Flap Barriers
- Availability
- On Request
- Warranty
- 1 Year
Key Features — FB-E-2000 Series
- Retracting flap barrier
- 550 mm lane width
- SUS304 stainless-steel cabinet
- SUS304 stainless-steel lid
- Transparent acrylic barrier
- Red/green/blue LED indication
- RFID access support
- Fingerprint access support
- Face-recognition access support
- Vein-recognition access support
- 0.2-second unlock time
- Dry-contact input
- Emergency mode
- IP44 protection
- 3-million-cycle MCBF
- Indoor/outdoor sheltered installation
- Medium security level

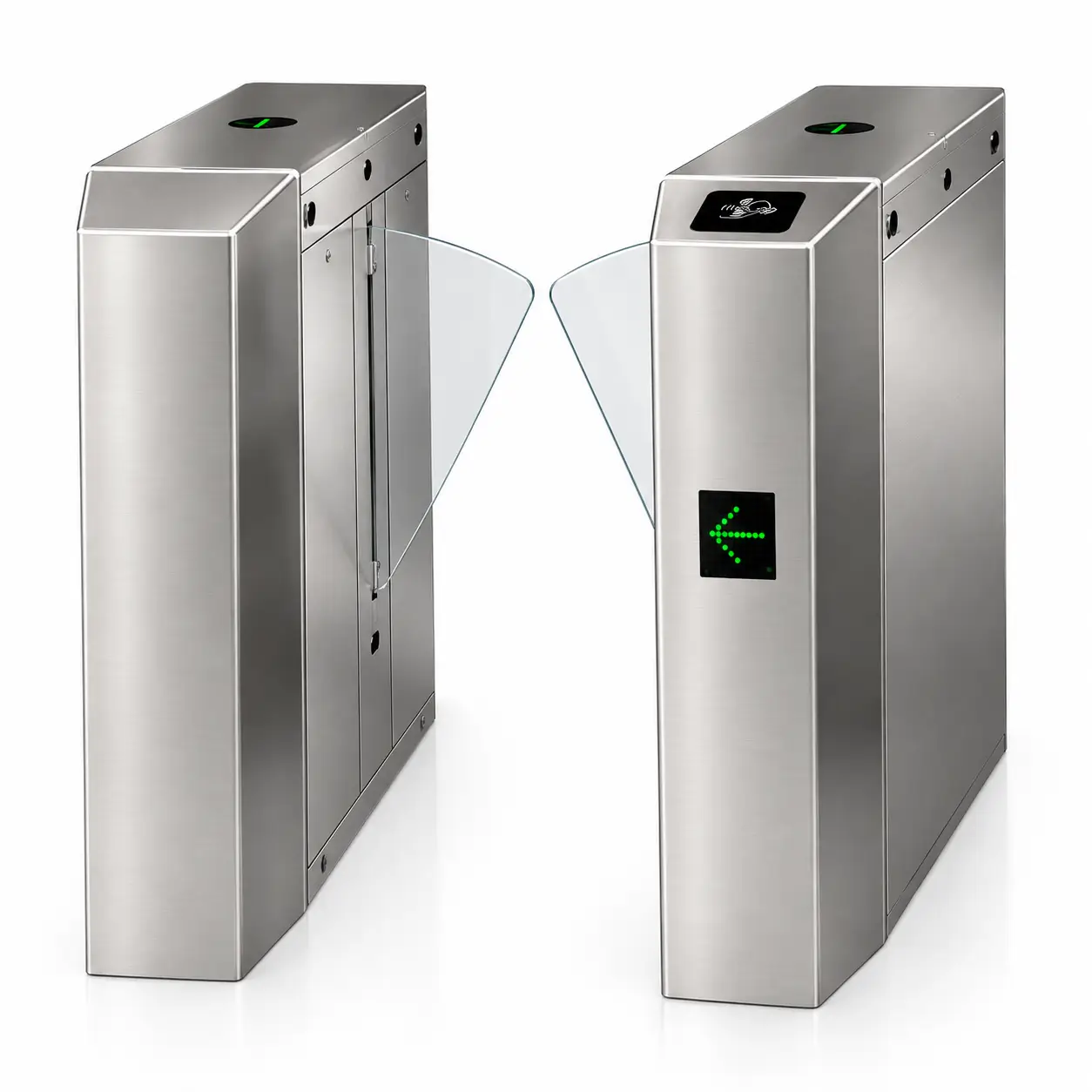

Product Overview
The eSSL FB-E-2000 Series is a retracting flap-barrier platform designed for controlled pedestrian access. The official current eSSL specification lists 100–240V AC power requirements, operating temperature of -28°C to +60°C, working humidity of 5%–80%, and indoor/outdoor use where sheltered.
The product has a 550 mm lane width, IP44 rating and 0.2-second unlock time. The cabinet and lid are specified as SUS304 stainless steel, while the barrier is transparent acrylic with red, green and blue light indication.
A distinguishing feature is the published support for different access technologies with separate passage rates: RFID maximum 35/minute, fingerprint maximum 25/minute, face maximum 11/minute and vein maximum 23/minute. eSSL also specifies emergency mode, dry-contact input and a 3-million-cycle MCBF.
The official PDF additionally states that the brief specifications may change without prior notice and advises checking with eSSL before purchase.
What Is FB-E-2000 Series?
FB-E-2000 Series is a retracting flap barrier for controlled pedestrian access.
Software & Integration
The FB-E-2000 Series supports RFID, fingerprint, face and vein reader technologies with separately published passage rates. It accepts a dry-contact input and provides emergency mode for fail-open operation. Integrates with MegaMind Attendance and MegaMind HRMS.
Applications
Typical deployments for the FB-E-2000 Series: - Corporate office entrances - Factories - Metro stations - Airports - Educational campuses - Gym and club entrances - Employee access control - Visitor management entrances - Multi-technology pedestrian access systems
Ideal for — FB-E-2000 Series
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for FB-E-2000 Series (FB-E-2000 Series).
General
| Lane Width (mm) | 550 mm |
|---|---|
| Dimensions | L=1200, W=280, H=980 mm |
Electrical
| Power | Not published separately from power requirements |
|---|---|
| Battery Backup | No |
Additional Specifications
| Input | Dry Contact |
|---|---|
| Net Weight — Single Machine | 52 kg |
| Net Weight — Double Machine | 87 kg |
| Motor Type / Power Supply / Sensor Count | Not published on current series page |
| Type | Retracting flap barrier |
| Power Requirements | 100–240V AC |
| Working Temperature | -28°C to +60°C |
| Unlock Time | 0.2 sec |
| Cabinet | SUS304 stainless steel |
| Barrier Material | Transparent acrylic (red/green/blue) |
| Rfid Passage Rate | 35 persons/min (max) |
| Fingerprint Passage Rate | 25 persons/min (max) |
| Face Passage Rate | 11 persons/min (max) |
| Vein Passage Rate | 23 persons/min (max) |
| Mcbf | 3 Million |
| Wi-Fi | No |
| TCP/IP | No |
| LAN Interface | No |
| USB Port | No |
| Wiegand Interface | No |
| PoE Support | No |
| Working Humidity | 5%–80% |
| Working Environment | Indoor / Outdoor if Sheltered |
| Input Type | Dry Contact |
| Single Machine Weight | 52 kg |
| Double Machine Weight | 87 kg |
| Led Indicator | Yes |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel |
| Barrier Indicator Colors | Red / Green / Blue |
| Barrier Movement | Retracting |
| Emergency Mode | Yes |
| Security Level | Medium |
| Motor Type | Not published on current series page |
How to choose the right Flap Barriers device
Every flap barriers requirement is different. Before you buy FB-E-2000 Series, compare these points — they are the same checks our engineers use when recommending flap barriers attendance and access solutions to Indian businesses.
Size it to your site
- Supported methods: rfid card, fingerprint, face, vein — pick the method your employees will actually use
What to look for in a Flap Barriers
- Compare lane width (mm) against your actual workload
- Compare throughput against your actual workload
- Compare dimensions against your actual workload
- Compare power against your actual workload
- Check Battery Backup is built in if your site needs it
- Compare communication against your actual workload
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: On Request — confirm lead time with your quote
Connectivity & integration
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — FB-E-2000 Series
Industries and use-cases where the FB-E-2000 Series is commonly deployed.
- Corporate office entrances
- Factories
- Metro stations
- Airports
- Educational campuses
- Gym and club entrances
- Employee access control
- Visitor management entrances
- Multi-technology pedestrian access systems
Documents & Downloads — FB-E-2000 Series
Compatibility — FB-E-2000 Series
- MegaMind Attendance
- MegaMind HRMS
