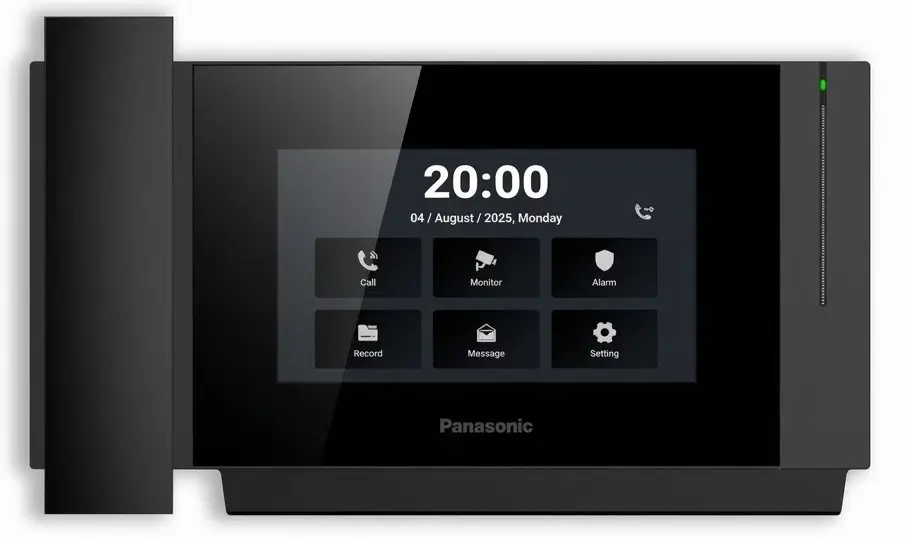

Panasonic VL-VQ7000SX SIP Based Guard Station
Model: VL-VQ7000SX
Brand: Panasonic
The Panasonic VL-VQ7000SX SIP Based Guard Station (VL-VQ7000SX) is a sip video door phones terminal from Panasonic — Panasonic VL-VQ7000SX is an enterprise SIP guard station featuring a 7-inch capacitive touchscreen, Android 12 OS, physical handset, 500 alarm logs, and PoE connectivity.
- Brand
- Panasonic
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- SIP Video Door Phones
- Availability
- On Request
Key Features — VL-VQ7000SX
- Enterprise SIP-based security guard station console running Android 12
- 7-Inch Colour TN LCD capacitive touchscreen (1024 x 600 resolution)
- Dual audio mode: private telephone handset and hands-free speakerphone
- Receives emergency SOS calls and real-time alarm alerts from tenant monitors
- Monitors up to 32 linked RTSP/ONVIF IP CCTV perimeter cameras
- Maintains extensive system logs: up to 500 alarm logs and 100 intercom logs
- Standard PoE (IEEE 802.3af Class 0) or 12V DC input power
- Rugged aluminum alloy desktop housing designed for 24/7 security booth operation
Product Overview
The Panasonic VL-VQ7000SX is an enterprise-grade SIP guard station running Android 12, equipped with a 7-inch capacitive touchscreen, physical handset, 500-event alarm logging, 32 IP camera streams, and PoE IEEE 802.3af support.
What is the Panasonic VL-VQ7000SX SIP Based Guard Station?
The VL-VQ7000SX is a master security intercom console designed for centralized gatehouse and control room management in IP intercom networks. It bridges lobby panels, apartment monitors, and IP surveillance cameras into a single unified security interface.
Who is it for?
Designed for residential gated communities, luxury high-rise condominium complexes, corporate office campuses, and industrial premises requiring 24/7 security guard intervention and visitor screening.
How to Choose
Evaluate the total number of apartments, verify PoE network switch infrastructure in the guard room, and ensure integration compatibility with the lobby entrance panels and indoor room monitors.
Applications
Key applications for the VL-VQ7000SX include:
- Gated society security entrance gates
- High-rise apartment concierge desks
- Corporate campus central security control rooms
- Hospital and institutional campus visitor management desks
Ideal for — VL-VQ7000SX
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for Panasonic VL-VQ7000SX SIP Based Guard Station (VL-VQ7000SX).
Camera & Display
| Display | 7-inch Colour TN LCD (1024 x 600 pixels) |
|---|
Additional Specifications
| Station Type | SIP Based Guard Station |
|---|---|
| Os | Android 12 |
| Touch Method | Capacitive touch screen |
| Video Codec | H.264 (FHD 1080p / HD 720p / VGA) |
| Audio Codec | G.711 full duplex |
| Audio Hardware | Built-in monitor loudspeaker, handset receiver speaker, and handset microphone |
| Audio Quality | Noise suppression and acoustic echo cancellation |
| Network Protocols | TCP/IP, SIP 2.0, RTSP |
| Network Interface | 1x RJ45 10BASE-T/100BASE-TX (Auto MDI/MDI-X) |
| Camera Monitoring | Up to 32 linked IP cameras |
| Log Capacity | 500 alarm logs, 100 intercom logs, 100 text messages |
| Picture Recording | Up to 100 images internally |
| Power Source | PoE (IEEE 802.3af Class 0) / DC adaptor 12V DC |
| Operating Voltage | 48V PoE (0.16A) / 12V DC (0.64A) |
| Power Consumption | Standby: 2.5 W, Maximum: 7.7 W |
| Dimensions Unit | 30 x 312 x 168 mm (H x W x D) |
| Dimensions With Handset | 115 x 312 x 185 mm with handset and desk bracket |
| Weight | 1.7 kg |
| External Material | Aluminum alloy chassis |
| Installation | Desktop installation with heavy-duty stand |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Colour | Black |
| Display Language | English |
| Storage Temperature | -20°C to +60°C |
| Dtmf Unlock | Not supported (guard station console) |
| Handset | Built-in handset microphone and receiver speaker plus monitor loudspeaker |
How to choose the right SIP Video Door Phones device
Every sip video door phones requirement is different. Before you buy VL-VQ7000SX, compare these points — they are the same checks our engineers use when recommending sip video door phones attendance and access solutions to Indian businesses.
What to look for in a SIP Video Door Phones
- Compare display against your actual workload
- Compare image sensor against your actual workload
- Compare monitor resolution against your actual workload
- Compare night vision against your actual workload
- Compare ip rating against your actual workload
- Compare ik rating against your actual workload
- Compare wi-fi against your actual workload
- Compare power against your actual workload
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: On Request — confirm lead time with your quote
Connectivity & integration
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — VL-VQ7000SX
Industries and use-cases where the Panasonic VL-VQ7000SX SIP Based Guard Station is commonly deployed.
- Gated community main gate security desks
- Apartment tower control rooms
- Corporate campus gatehouse consoles
- Township and hotel security desks
