SB-ES-3012
Model: SB-ES-3012 · SKU: MM-eSSL-SB-ES-3012
Brand: eSSL · Warranty: 1 Year

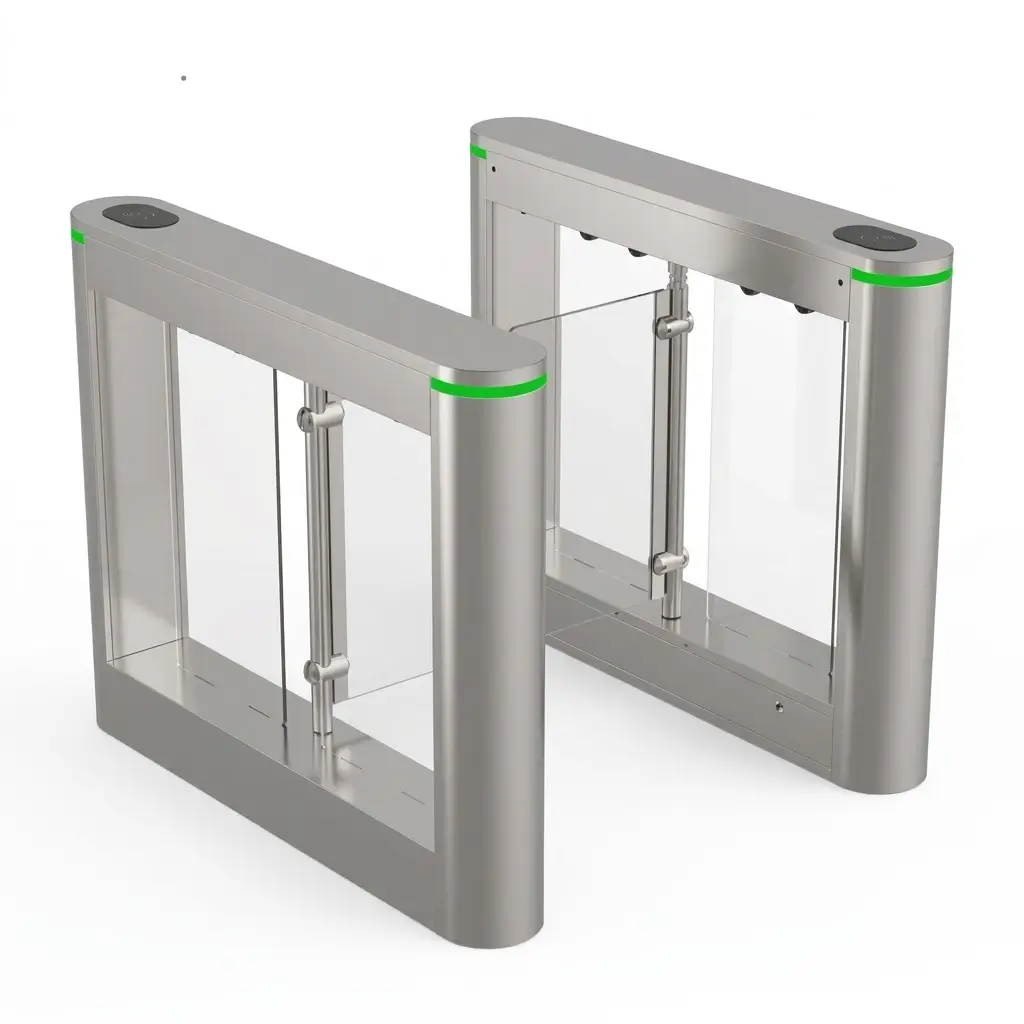

The SB-ES-3012 (SB-ES-3012) is a card swing barriers terminal from eSSL — The eSSL SB-ES-3012 is a single-lane swing barrier with a 600 mm passage width, SUS 304 stainless-steel construction, transparent acrylic arm, brushed motor, four pairs of infrared sensors and a published throughput of 20–35 persons per minute. It is specified for controlled pedestrian access and high-cycle operation with an MCBF of 5 million cycles.
- Authentication
- Card
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Swing Barriers
- Availability
- On Request
- Warranty
- 1 Year
Key Features — SB-ES-3012
- Single-lane swing barrier
- 600 mm passage width
- 1200 × 185 × 980 mm product size
- SUS 304 stainless-steel construction
- 1.0 mm body thickness
- 1.2 mm SUS304 top cover
- 10 mm transparent acrylic arm
- Brushed motor
- 4 pairs of infrared sensors
- 0.2-second operating time
- 20–35 persons/minute pass rate
- 100–240V AC power supply
- 24V DC operational voltage
- 35W maximum power consumption
- 50–60Hz frequency
- -25°C to +70°C working temperature
- 5,000,000-cycle MCBF
- 65 kg net weight
Product Overview
The SB-ES-3012 is a single-lane pedestrian swing barrier designed for access-controlled entry and exit points. eSSL publishes a compact product size of 1200 × 185 × 980 mm and a fixed 600 mm passage width.
The barrier uses 1.0 mm SUS 304 stainless steel for the main body and a 1.2 mm SUS304 top cover. A 10 mm transparent acrylic arm provides the physical swing element.
Movement is driven by a brushed motor, with four pairs of infrared sensors supporting pedestrian detection. eSSL specifies an operating time of 0.2 seconds and a pass rate of 20–35 persons per minute.
The product has a published maximum power consumption of 35W, 100–240V AC power supply, 24V DC operational voltage and 50–60Hz frequency. The stated operating temperature is -25°C to +70°C, while the published MCBF is 5,000,000 cycles.
eSSL's general swing-barrier documentation describes these systems for controlled pedestrian movement in offices, gyms, factories, manufacturing facilities and educational institutions, and notes that access-control and time-attendance readers can be integrated with swing-lane barriers.
What Is SB-ES-3012?
SB-ES-3012 is a single-lane eSSL swing barrier with a 600 mm passage width.
Software & Integration
Access-control and time-attendance readers can be integrated into swing-lane barriers per eSSL's swing-barrier category; the current SB-ES-3012 page does not publish a specific reader protocol or biometric interface. Integrates with MegaMind Attendance and MegaMind HRMS.
Applications
Typical deployments for the SB-ES-3012: - Corporate and private offices - Government/public-sector access points - Gyms - Factories - Manufacturing facilities - Educational institutions - Controlled entry and exit points - Time-attendance-integrated pedestrian entrances
Ideal for — SB-ES-3012
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for SB-ES-3012 (SB-ES-3012).
Electrical
| Power | 100–240V AC |
|---|
Additional Specifications
| Thickness | 1.0 mm |
|---|---|
| Driver | Brushed Motor |
| Infrared Sensor | 4 pairs |
| IP Rating / Humidity / Communication Interface | Not published on current page |
| Type | Single-lane swing barrier |
| Size | 1200 × 185 × 980 mm |
| Pass Width | 600 mm |
| Net Weight | 65 kg |
| Body | 1.0 mm SUS 304 (top cover 1.2 mm SUS304) |
| Arm | 10 mm transparent acrylic |
| Drive | Brushed motor |
| Sensors | 4 pairs infrared |
| Pass Rate | 20–35 persons/minute |
| Mcbf | 5,000,000 cycles |
| Lane Type | Single lane |
| Product Size | 1200 × 185 × 980 mm |
| Passage Width | 600 mm |
| Main Material | 1.0 mm SUS 304 |
| Body Thickness | 1.0 mm |
| Top Cover Material | 1.2 mm SUS304 |
| Arm Material | 10 mm Transparent Acrylic |
| Motor Type | Brushed Motor |
| Operating Time | 0.2 Seconds |
| Infrared Sensor Pairs | 4 pairs |
| Operational Voltage | 24V DC |
| Frequency | 50–60Hz |
| Maximum Power Consumption | 35W |
| Working Temperature | -25°C to +70°C |
| Access Control Integration | Access-control and time-attendance readers can be integrated (swing-lane barrier category) |
How to choose the right Swing Barriers device
Every swing barriers requirement is different. Before you buy SB-ES-3012, compare these points — they are the same checks our engineers use when recommending swing barriers attendance and access solutions to Indian businesses.
Size it to your site
- Supported methods: card — pick the method your employees will actually use
What to look for in a Swing Barriers
- Compare lane width (mm) against your actual workload
- Compare throughput against your actual workload
- Compare dimensions against your actual workload
- Compare power against your actual workload
- Check Battery Backup is built in if your site needs it
- Compare communication against your actual workload
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: On Request — confirm lead time with your quote
Connectivity & integration
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — SB-ES-3012
Industries and use-cases where the SB-ES-3012 is commonly deployed.
- Corporate and private offices
- Government/public-sector access points
- Gyms
- Factories
- Manufacturing facilities
- Educational institutions
- Controlled entry and exit points
- Time-attendance-integrated pedestrian entrances
Documents & Downloads — SB-ES-3012
Compatibility — SB-ES-3012
- MegaMind Attendance
- MegaMind HRMS
