ETA-2000
Model: ETA-2000 · SKU: MM-eSSL-ETA2000
Brand: eSSL · Warranty: 1 Year

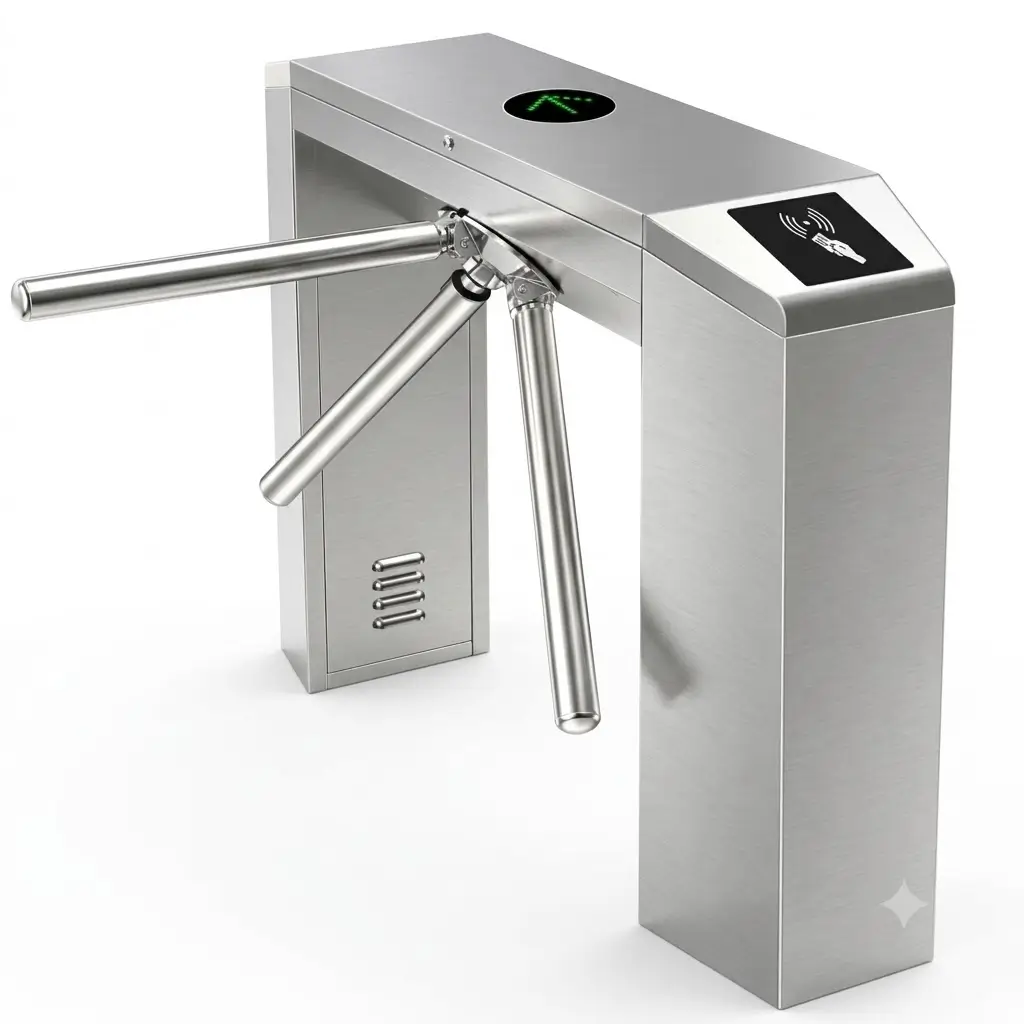

The ETA-2000 (ETA-2000) is a tripod turnstiles terminal from eSSL — eSSL ETA-2000 is a heavy-duty automatic tripod turnstile with 520 mm passage width, 35 persons/minute throughput, 80 kg maximum arm tolerance and 120° arm rotation. It supports one-way/bidirectional operation, full-auto mode, automatic arm reset and RFID/fingerprint access integration through an inBio-260 controller.
- Brand
- eSSL
- Product type
- Standalone Product
- Sold by
- MegaMind Technosoft
- Category
- Tripod Turnstiles
- Fingerprint capacity
- 3,000
- Availability
- In Stock
- Warranty
- 1 Year
Key Features — ETA-2000
- Automatic heavy-duty tripod turnstile
- 520 mm passage width
- 35 persons/minute throughput
- 80 kg arm tolerance
- 120° arm rotation
- One-way / bidirectional operation
- Full-Auto mode
- Automatic arm reset
- Adjustable timeout delay
- Free passage
- Always-free / locked operation
- DC electromagnetic drive
- 30W maximum power consumption
- IP44 protection
- -25°C to +70°C working temperature
- 52 kg net weight including bar
- inBio-260 controller
- 30,000 RFID users
- 3,000 fingerprints
- 100,000 transaction storage
- 12V lock relay
- Fire-alarm support
- RFID/fingerprint reader support
- RS485 reader protocol
- Optional MIFARE/Proxy
Product Overview
The eSSL ETA-2000 is an automatic heavy-duty tripod turnstile designed for controlled pedestrian movement. Its official specification lists 520 mm passage width, 35 persons/minute throughput, an 80 kg maximum arm tolerance and 120° angle per rotation.
The system operates from 100–240V input with 24V operational voltage, maximum power consumption of 30W and 50–60Hz frequency. It uses a DC electromagnetic drive, has IP44 protection and supports temperatures from -25°C to +70°C. The published dimensions are 1200 × 280 × 980 mm excluding the bar, with a net weight of 52 kg including the bar.
The controller supports Full-Auto mode, single or bidirectional operation, automatic arm reset after passage and adjustable timeout delay. Its operating modes include single passage in a set direction, bidirectional passage, free passage and always-free/locked configurations.
The integrated secondary-controller configuration provides 30,000 RFID users, 3,000 fingerprints and 100,000 transaction storage, with inBio-260, 12V lock relay and fire-alarm support. RFID and fingerprint readers are supported, with RS485 and optional MIFARE/Proxy.
What Is ETA-2000?
ETA-2000 is an automatic heavy-duty tripod turnstile for controlled pedestrian access.
Software & Integration
The ETA-2000 operates as an access-control entrance device: ETA-2000 → integrated inBio-260 → RFID/Fingerprint reader → authentication → 12V lock relay. Full-Auto mode, automatic barrier-arm reset and adjustable timeout delay are published, with fire-alarm support. Integrates with MegaMind Attendance and MegaMind HRMS.
Applications
Typical deployments for the ETA-2000: - Corporate offices - Employee attendance entrances - Industrial sites - Educational campuses - Commercial buildings - Automatic pedestrian access - RFID/fingerprint-controlled entrances - Attendance and access-control turnstile installations
Ideal for — ETA-2000
Technical Specifications
Detailed hardware, electrical, network, and operational specifications for ETA-2000 (ETA-2000).
General
| Throughput | 35 persons/minute |
|---|---|
| Dimensions | 1200 × 280 × 980 mm (excluding bar) |
Electrical
| Power | 100–240V, 50–60Hz |
|---|---|
| Battery Backup | No |
| Communication | RS485 / optional MIFARE-Proximity |
Additional Specifications
| Maximum Arm Tolerance | 80 kg |
|---|---|
| Protection Level | IP44 |
| Dimensions Excluding Bar | 1200 × 280 × 980 mm |
| Net Weight Including Bar | 52 kg |
| Fingerprints | 3,000 |
| Type | Heavy-duty automatic bidirectional tripod turnstile |
| Passage Width | 520 mm |
| Max Power Consumption | 30 W |
| Protection | IP44 |
| Working Temperature | -25°C to +70°C |
| Drive | DC electromagnetic |
| Net Weight | 52 kg including bar |
| Arm Tolerance | 80 kg |
| Angle Per Rotation | 120° |
| Opening Duration | 5–60 sec |
| Primary Mode | Full-Auto |
| Controller | Integrated inBio-260 |
| Wi-Fi | No |
| TCP/IP | No |
| LAN Interface | No |
| USB Port | No |
| Wiegand Interface | No |
| PoE Support | No |
| Throughput Rate | 35 persons/min |
| Operational Voltage | 24V |
| Operation Type | One-way / Bidirectional |
| Input Control Signal | Dry Contact |
| Maximum Power Consumption | 30W |
| Frequency | 50–60Hz |
| Drive Type | DC Electromagnetic |
| Primary Operating Mode | Full-Auto |
| Automatic Arm Reset | Yes |
| Timeout Delay | Adjustable |
| Free Passage | Supported |
| Always Free Locked | Supported |
| Passage Configurations | Single passage in set direction, Bi-directional passage, Free passage in set direction, Always free or locked |
| Integrated Controller | inBio-260 |
| Rfid Users | 30,000 |
| Fingerprint Capacity | 3,000 |
| Transaction Storage | 100,000 |
| Fire Alarm Support | Yes |
| Rfid Reader | Yes |
| Fingerprint Reader | Yes |
| Reader Protocol | RS485 |
| Mifare Proxy | Optional MIFARE/Proxy |
| Housing Material | Metal sheet (painted) or stainless steel AISI 304 / AISI 316 |
| Barrier Arm Material | Stainless steel |
| Lid Options | Stainless steel or artificial stone, optional (black/brown) |
| Mcbf | Not published on current ETA-2000 page |
Hardware & Controller Interfaces
| Lock Relay | 12V Relay |
|---|
How to choose the right Tripod Turnstiles device
Every tripod turnstiles requirement is different. Before you buy ETA-2000, compare these points — they are the same checks our engineers use when recommending tripod turnstiles attendance and access solutions to Indian businesses.
What to look for in a Tripod Turnstiles
- Compare lane width (mm) against your actual workload
- Compare throughput against your actual workload
- Compare dimensions against your actual workload
- Compare power against your actual workload
- Check Battery Backup is built in if your site needs it
- Compare communication against your actual workload
Service, warranty & software
- Warranty: 1 Year — confirm claim process and turnaround
- Works with MegaMind Attendance software for shifts, payroll export and reports
- Pan-India installation, training and AMC support from certified engineers
- Availability: In Stock — confirm lead time with your quote
Connectivity & integration
- API and SDK support for custom HRMS, ERP and payroll integration
Applications — ETA-2000
Industries and use-cases where the ETA-2000 is commonly deployed.
- Corporate offices
- Employee attendance entrances
- Industrial sites
- Educational campuses
- Commercial buildings
- Automatic pedestrian access
- RFID/fingerprint-controlled entrances
- Attendance and access-control turnstile installations
Documents & Downloads — ETA-2000
Compatibility — ETA-2000
- MegaMind Attendance
- MegaMind HRMS
